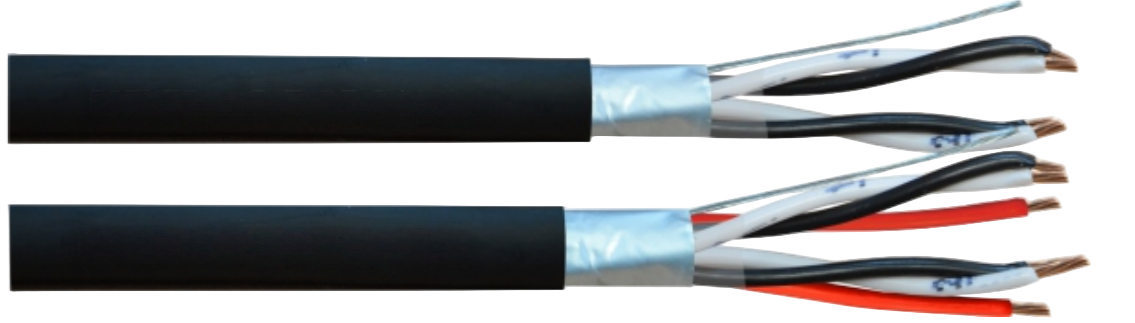

RE-2Y(St)H LSOH Data Transmission Cable 300/500V with Electrostatic Screen

Technical data:

Thermal parameters:

Temperature range:

operating temperature: -40 °C to 80 °C installation temperature: -5 °C to 80 °C

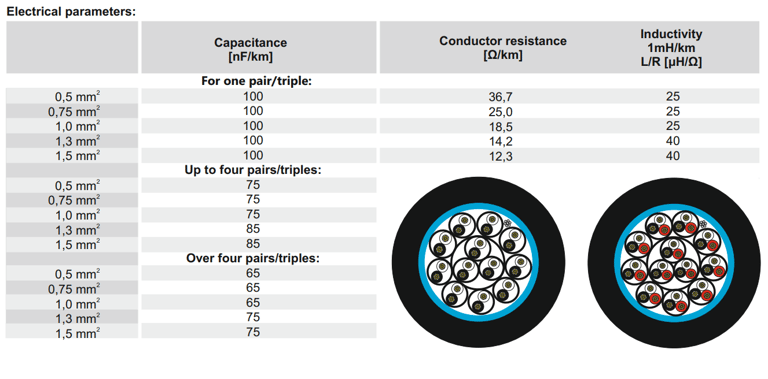

Electrical parameters:

Operating voltage (peak value): U = 500 V Test voltage:

Core/core: 2000 V     Core/screen: 2000 V

Insulation resistance: > 5 GΩ x km

Mechanical parameters:

Min. bending radius: 7,5 x Ø

Design:

Conductors:                     bare, stranded copper conductors class 2

acc. to EN 60228

Insulation:                        polyethylene (PE)*

Core identification:

Pairs:            core A – black, core B – white (black numbering on the white core)

Triples:         core A – black, core B – white, core C – red (black

numbering on the white core)

Core arrangement:

Pairs:            cores twisted in pairs, pairs twisted together and wrapped with polyester tape (PET)

Triples:         cores twisted in triples, triples twisted together and wrapped with polyester tape (PET)

Application:

Cables designed for data transmission in numerical control systems ensuring optimum transmission of data up to 200 Kbit/s. Collective electrostatic screen protects against external interferences. Cables are suitable for application indoor and in dry and damp rooms. Outer sheath is UV resistant. Cables classified according to EN 50575 (CPR).
