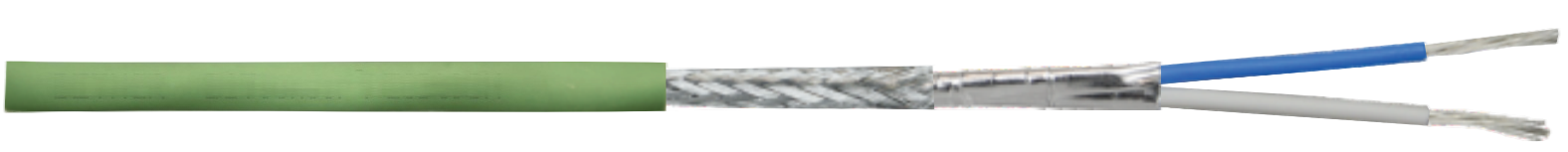

PE(St)CH Halogen-Free RS-485 Transmission Cable
Industrial Indoor Data Cable: Double Screened, Flame Retardant, Low Smoke Emission, Compliant with EN 50575 Standard
$2.00
Application:
PE(St)CH is dedicated for EIA/RS-485 transmission. The cable has a low capacity, thus ensuring high transmission speed for long connections. Cables may be used in dry and damp rooms, and are suitable for fixed installations. Cables classified according to PN-EN 50575 (CPR).
Technical data:
Thermal parameters:
Operating temperature: -40 °C to 80 °C Min. installation temperature: -20 °C
Electrical parameters:
Operating voltage: 300V
Test voltage: 2500V
Wave impedance: 120 Ω ±10%
Max. capacitance in pair: 42 nF/km
Mechanical parameters:
Min. bending radius: 30mm
Design:
Conductors: stranded tinned copper conductors class 2 acc.
to EN 60228, IEC 60228
Insulation: foamed polyethylene with a thin external layer of solid
polyethylene

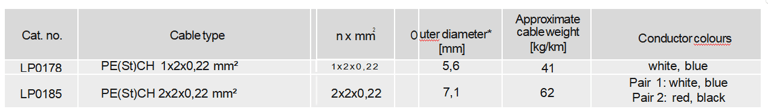

Conductor colours: acc. to the table
Screens: aluminium backed polyester tape on every pair, tinned
copper drain wire and tinned copper wire braid
Outher sheath: special halogen-free, self-extinguishing and flame retardant compound (acc. to EN 60332-1-2, IEC 60332-1),colour: green
