Single Core, 2-, 3-, 4-, 5-, multicores CU/PVC/PVC PVC insulated, PVC sheathed, 0.6/1kV

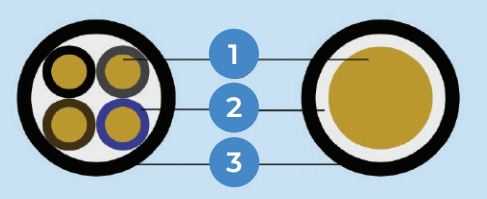

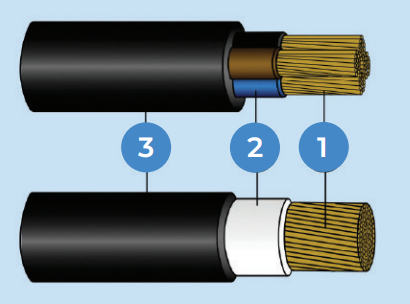

Component： 1. Copper Conductor 2. PVC Insulation 3. PVC/PVC-FR** sheath
$15.00
Standards Applied
Design Guide: IEC60502-1, MS274
Conductor: IEC60228, BS6360, BS EN 60228
Electrical Characteristics
Operating voltage, Uo/U: 600/1000V Max. operating temperature: 70°C
Final short circuit temperature: 160°C Test voltage: 3.5kV for 5 minutes
Installation Guide
Min. bending radius (mm): 8 x Cable Overall Diameter,
(sector shape); 6 x cable overall diameter (circular shape) Max. pulling tension (kgf): 7 x No. of Core x Conductor Size
Construction | |
Conductor | Plain annealed copper wire |
Insulation Core Identification Assembly*** Outer Sheath Outer Sheath Colour | An extruded layer of polyvinyl chloride (PVC) compound Refer to Appendix F for details except single core. Single core will come with black insulation Cores cabled together, supplied with filler* and covered with polyester (PETP) binder tape* An extruded layer of polyvinyl chloride (PVC) compound Black except single core. Single core will come with grey outer sheath. |
