Single Core, 2-, 3-, 4-, 5-, Multicores CU/XLPE/LSHF XLPE insulated, LSHF sheathed Cable 0.6/1kV

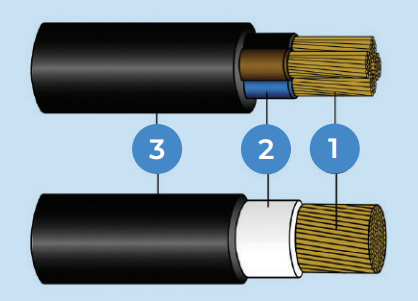

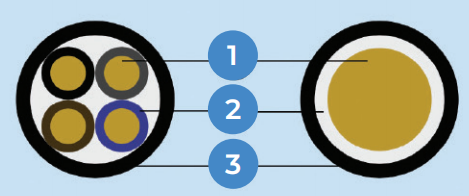

Component:1. Copper Conductor 2. XLPE Insulation 3. LSHF Sheath
$10.00
Standards Applied Design Guide: IEC60502-1 Conductor: IEC60228, BS6360, BS EN 60228 Flame Retardancy: IEC60332-1-2, IEC60332-3-22 Low Smoke & Reduced Toxidity: IEC60754-1/2, IEC61034-2 | Electrical Characteristics Operating voltage, Uo/U: 600/1000V Max. operating temperature: 90°C Final short circuit temperature: 250°C Test voltage: 3.5kV for 5 minutes |
Installation Guide
Min. bending radius (mm) : 6 x Cable Overall Diameter (Single Core)
Min. bending radius (mm) : 8 x Cable Overall Diameter (2-, 3-, 4-, 5-, multicores)
Max. pulling tension (kgf) : 7 x No. of Core x Conductor Size
Construction | |
Conductor | Plain annealed copper wire |
Insulation
Core Identification
Assembly*** Outer Sheath Outer Sheath Colour | An extruded layer of cross-linked polyethylene (XLPE) compound Refer to Appendix F for details except single core. Single core will come with natural colour insulation. Cores cabled together, supplied with filler* and covered with polyester (PETP) binder tape* A low smoke halogen free (LSHF) compound Black |
