Single Core, 2-, 3-, 4-, 5-, multicores CU/XLPE/PVC,XLPE insulated, PVC sheathed Cable 0.6/1kV

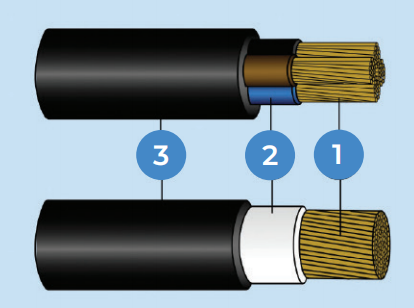

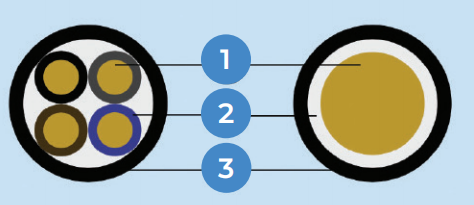

Component :1. Copper Conductor 2. XLPE Insulation 3. PVC/PVC-FR** sheath
$30.00
Standards Applied
Design Guide: IEC60502-1
Conductor: IEC60228, BS6360, BS EN 60228
Flame Retardancy: IEC60332-1-2, IEC60332-3-24**, IEC60332-3-22**
Electrical Characteristics
Operating voltage, Uo/U: 600/1000V Max. operating temperature: 90°C
Final short circuit temperature: 250°C Test voltage: 3.5kV for 5 minutes
Installation Guide
Min. bending radius (mm) : 6 x Cable Overall Diameter (Single Core)
Min. bending radius (mm) : 8 x Cable Overall Diameter (2-, 3-, 4-, 5-, multicores)
Max. pulling tension (kgf) : 7 x No. of Core x Conductor Size
Construction | |
Conductor | Plain annealed copper wire |
Insulation Core Identification Assembly*** Outer Sheath Sheath Colour | An extruded layer of cross-linked polyethylene (XLPE) compound Refer to Appendix F for details except single core. Single core will come with natural colour insulation. Cores cabled together, supplied with filler* and covered with polyester (PETP) binder tape* An extruded layer of polyvinyl chloride (PVC) compound Black |
