Single Core CU/LSHF Cross-linked polyolefin insulated, Non-sheathed Cable 450/750V

Standards Applied

Design Guide:  BS7211

Conductor: IEC60228, BS6360, BS EN 60228

Flame Retardancy: IEC60332-1-2, IEC60332-3-22

Low Smoke & Reduced Toxidity:  IEC60754-1/2,  IEC61034-2

Installation Guide

Min. bending radius (mm) : 6 x Cable Overall Diameter

Max. pulling tension (kgf) : 7 x No. of Core x Conductor Size

Electrical Characteristics

Operating voltage, Uo/U: 450/750V

Max. operating temperature: 90°C

Final short circuit temperature: 250°C Test voltage: 2.5kV for 15 minutes

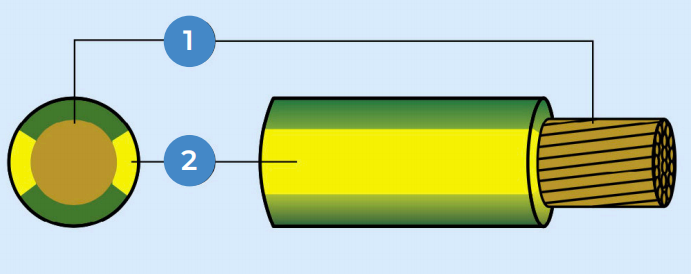

Construction

Conductor

Plain  annealed copper wire

Insulation

An extruded layer of cross-linked polyolefin , EI5

Core Identification

Black, Red, Green/Yellow, Yellow, Blue, White, Grey, Brown or other
