Single Core CU/PVC PVC Insulated, Non-sheathed 450/750V

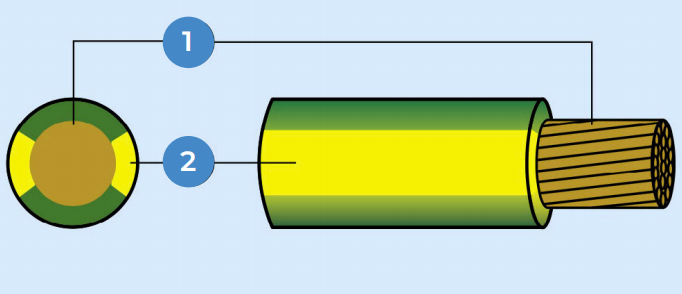

Component：1. Copper Conductor；2. PVC Insulation
$1.00
Standards Applied
Conductor: IEC60228, BS6360, BS EN 60228
Electrical Characteristics
Operating voltage, Uo/U: 450/750V Max. operating temperature: 70°C
Final short circuit temperature: 160°C Test voltage: 2.5kV for 15 minutes
Installation Guide
Min. bending radius (mm) : 6 x Cable Overall Diameter
Max. pulling tension (kgf) : 7 x No. of Core x Conductor Size
Construction | |
Conductor | PVC-insulated cable (non-armoured) for electric power and lighting. |
Insulation | PVC-insulated cables for electricity supply with rated voltage 0.6/1kV |
Core Identification | Black, Red, Green/Yellow, Yellow, Blue, White, Grey, Brown or other |
