Single Core CU/XLPE/LSHF/AWA/LSHF XLPE insulated, LSHF bedded, AWA armoured, LSHF sheathed Cable 0.6/1kV

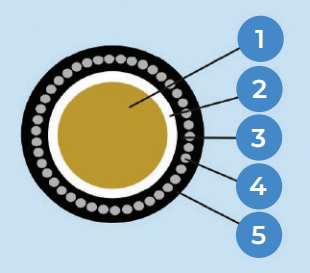

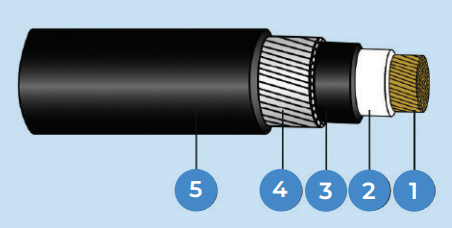

Component :1. Copper Conductor 2. XLPE Insulation 3. LSHF Bedding 4. Aluminium Wire Armoured 5. LSHF Sheath
$50.00
Standards Applied
Design Guide: BS6724, IEC60502-1
Conductor: IEC60228, BS6360, BS EN 60228
Flame Retardancy: IEC60332-1-2, IEC60332-3-22
Low Smoke & Reduced Toxidity: IEC60754-1/2, IEC61034-2
Installation Guide
Min. bending radius (mm): 10 x Cable Overall Diameter
Max. pulling tension (kgf): 7 x No. of Core x Conductor Size
Electrical Characteristics
Operating voltage, Uo/U: 600/1000V Max. operating temperature: 90°C
Final short circuit temperature: 250°C Test voltage: 3.5kV for 5 minutes
Construction | |
Conductor | Plain annealed copper wire |
Insulation Core Identification Bedding Bedding Colour | An extruded layer of cross-linked polyethylene (XLPE) compound Natural An extruded layer of low smoke halogen free (LSHF) compound Black |
Armour Outer Sheath Outer Sheath Colour | A single layer of aluminium wire armoured (AWA) An extruded layer of low smoke halogen free (LSHF) compound Black |
