Single Core CU/XLPE/PVC/AWA/PVC XLPE insulated, PVC bedded, AWA armoured, PVC sheathed Cable 0.6/1kV

Standards Applied

Design Guide: BS5467, IEC60502-1

Conductor : IEC60228, BS6360, BS EN 60228

Flame Retardancy: IEC60332-1-2, IEC60332-3-24**, IEC60332-3-22**

Installation Guide

Min.  bending radius (mm) : 10 x Cable Overall Diameter

Max. pulling tension (kgf) : 7 x No. of Core x Conductor Size

Electrical Characteristics

Operating voltage, Uo/U:  600/1000V Max. operating temperature: 90°C

Final short circuit temperature: 250°C Test voltage: 3.5kV for 5 minutes

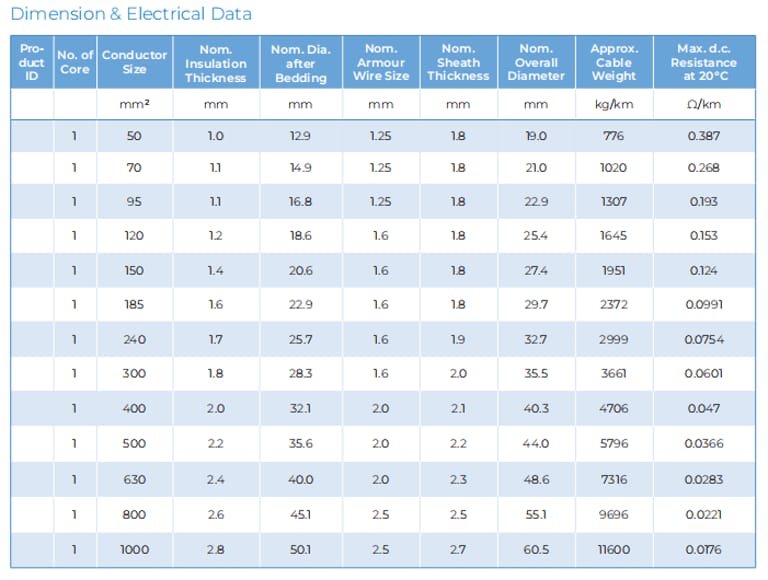

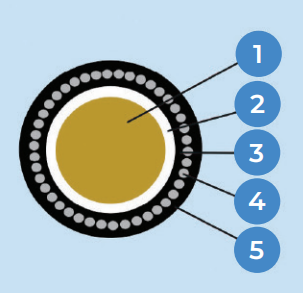

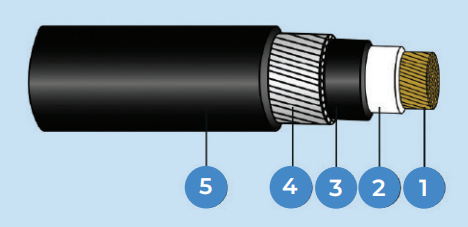

Construction

Conductor

Plain annealed copper wire

Insulation

Core Identification Bedding

Bedding Colour

An extruded layer of cross-linked polyethylene (XLPE) compound

Natural

An extruded layer of polyvinyl chloride (PVC) compound Black

Armour

Outer Sheath

Outer Sheath Colour

A single layer of aluminium wire armoured (AWA)

An extruded layer of polyvinyl chloride (PVC) compound Black
