Single Core Flexible Power Cable, 0.6/1kV

These cables are mainly for use in fixed applications.

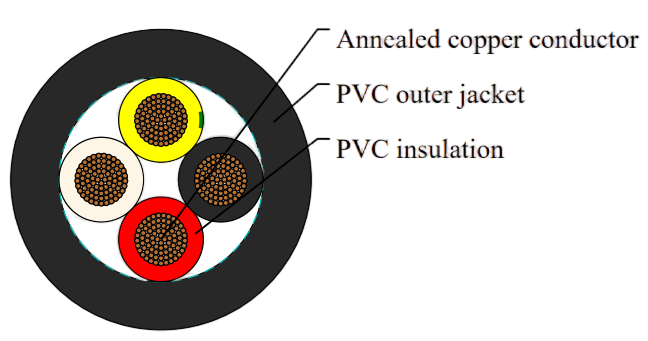

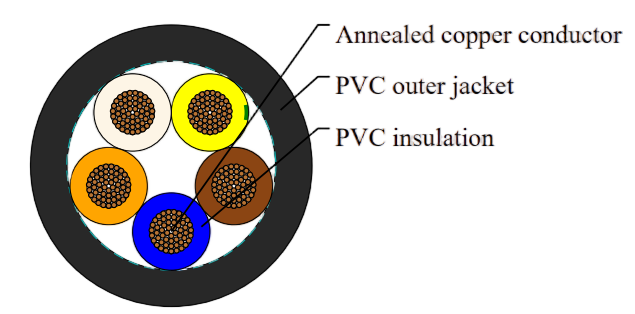

Conductor	Nominal 0.2mm stranded flexible plain copper wire to AS1125
Insulation	V90HT PVC to AS3808
Colours	Black, Red, Blue, White, GreenlYellow

Conductor Size	Electrical Resistance @20.C	Current Ratìng' AMPS 2 single cores	Voltage Orop mV 1Am at Max operatíng Temperature
mm^2	Ohm/km	Current Ratìng' AMPS 2 single cores	Single Phase	Three Phase
4	4.950	40	11 .20	9.71
6	3.300	51	7.50	6.49
10	1.910	69	4.45	3.86
16	1.210	92	2.80	2.43
25	0.780	125	1.78	1.54
35	0.554	155	1.29	1.12
50	0.386	185	0.96	0.83
70	0.272	240	0.62	0.59
95	0.206	295	0.51	0.44
120	0.161	345	0.41	0.36
