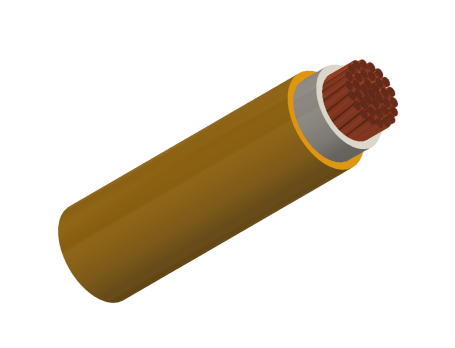

Single Core V90HT 0.6/1kV
These cables are for electrical Interconnections.
Standard
AS 3191
AS1125
AS3808

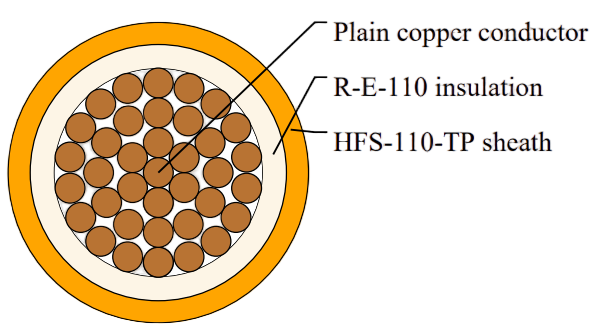

Construction
Conductor | Tinned copper wire (TCW) or plain copper wire (PCW) to AS1125 |
Insulation | V90HT PVC AS3808 |
Colours: | Red, Blue, Green, Yellow, White, Black, Brown, Violet, Orange, Grey |

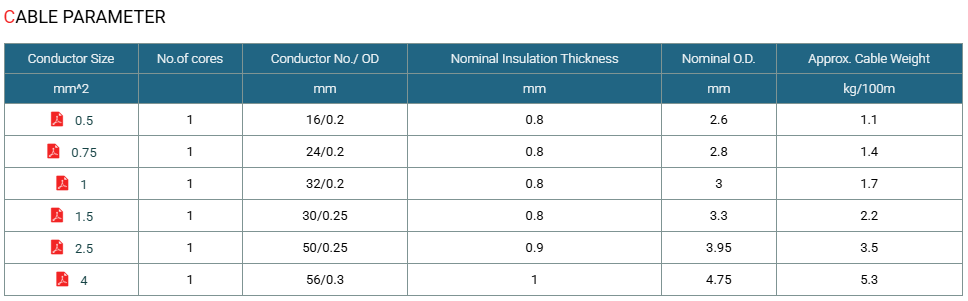

Technical Characteristics
Conductor Size | Electrical Resistance @20.C | Electrical Resistance @20.C | AMP Rating |
|---|---|---|---|
mm^2 | |||
0.5 | 40.1 | 39 | 3 |
0.75 | 26.7 | 26 | 7.5 |
1 | 20 | 19.5 | 10 |
1.5 | 13.7 | 13.3 | 15 |
2.5 | 8.2 | 8 | 20 |
4 | 5.1 | 5 | 25 |
