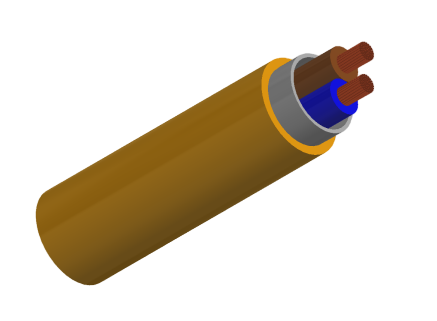

SOZ1-K(AS+)

Cable

Application and Description

These halogen-free cables are indicated for use in electric circuits for fire detection, alarms, pushbuttons, detectors, etc. Furthermore, this cable guarantees compliance with the applicable legislation, satisfying the fire resistance standard UNE-EN 50200, thus maintaining the operation of the installations when subject to fire, for 90 minutes at 400ºC, as established by the REBT in its ITC 28 "public premises". Subject to fire it does not emit acid or toxic gases so it guarantees the safety of people and of the installations.

Standards

UNE 211025

IEC 60228

IEC 60331-21

IEC 60754

IEC 60754-1

UNE EN 50267-2-3

UNE EN 50362 PH90

UNE EN 61034-2

UNE-EN 50200 PH90

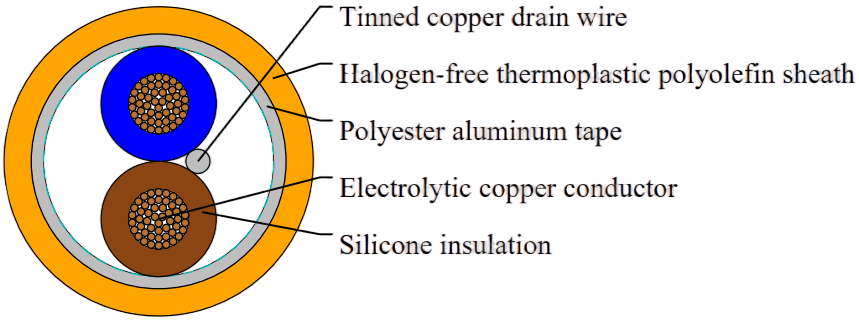

Cable Construction

Flexible electrolytic copper conductor Class 5 according to UNE-EN 60228

Silicone insulation type EI2 according to UNE-EN 50363

Color coded to HD 308

Polyester tape, tin plated copper drainage wire and polyester aluminum tape

Halogen-free thermoplastic polyolefin sheath according to UNE 21123

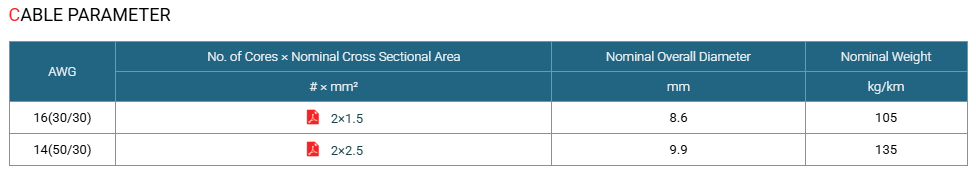

Technical Characteristics

Working voltage	300/500 volts
Test voltage	2000 volts
Minimum bending radius	5 x Ø
Working temperature	-15°C to +90°C
Short circuit temperature	+250°C
Insulation resistance	20 MΩ x km
Halogen free	UNE-EN 50267 and EN 50267
No corrosive gases	UNE-EN 50267 and EN 50267
Low smoke density	UNE-EN 61034, EN 61034 and IEC 61034
Fire resistant	UNE-EN 50200, EN 50200, UNE-EN 50362 and EN 50362
Non-flame propagating	IEC 60332-3, EN 50266-2
Non-fire propagating according to UNE-EN 50266 and EN 50266
