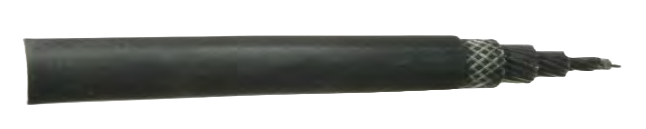

SPREADER REEL PUR-HF D12YST11YU11Y Low Voltage Cable for Vertical Reeling
Durable PUR-Sheathed Flexible Cable for High-Stress Spreader Reeling Applications
$4.00
Application
Flexible low voltage reeling cable for application under high mechanical stresses, specially designed for vertical reeling operation (spreader reeling application).
Global data
Type designation:D12YST11YU11Y-JZ
Design features
Conductor Plain copper, flexible class 5 acc. to DIN EN 60228 / DIN VDE 0295
Insulation Halogen free compound, based on polyester
Core identification White with black numbers, similar to HD 308
Core arrangement Central aramid strain element; cores twisted in layers with short length of lay
Inner sheath Polyurethan, halogen free, flame retardant
Reinforcement Open braid, reinforced
Outer sheath Polyurethane, halogen free, flame retardant, opaque;
Colour: black
Electrical parameters
Rated voltage 0.6/1 kV (600/1000V)
Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC 0.9/1.8 kV
AC Test Voltage 4 kV (5 Min.)
Current Carrying Capacity description Acc. to DIN VDE 0298-4
Chemical parameters
Resistance to fire Similar to IEC 60332-1
Resistance to oil According to EN 60811-404
Water resistance The cables are suitable for permanent use in water (no drinking water) up to 50 meter diving depth.
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -50 °C ; max +80 °C Ambient temperature in fully flexible operation min -40 °C ; max +80 °C
Mechanical parameters

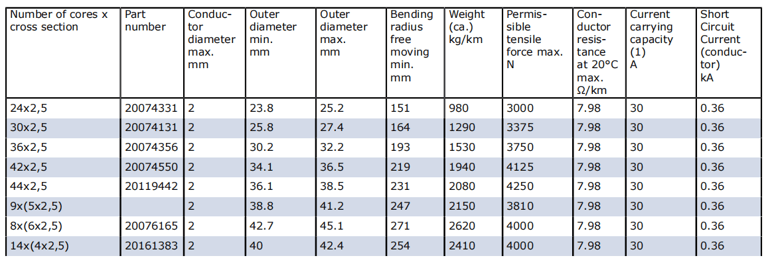

Max. tensile load Increased tensile load through addtional support elements (see table).
Torsional stress ± 50 °/m
Min. bending radius 6 x D (Proved by flexing tests acc. to HD 22.2 part 3.1) Min. distance with S-type directional changes 20 x D
Travel speed - Vertical reeling: up to 180 m/min
