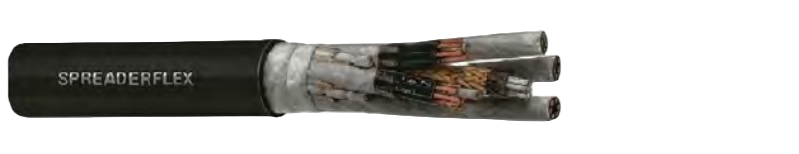

SPREADERFLEX 3GSLTOE 0.6/1kV Spreader Cable for Basket Operation
Robust Feeder Cable for Load-Lifting Equipment Under High Mechanical Stress, Reliable Even in Cold Environments
$35.00
Electrical parameters
Rated voltage 0.6/1 kV (600/1000V)
Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC 0.9/1.8 kV
AC Test Voltage 3.5 kV (5 Min.)
Data transmission With special bus elements: ASI-Bus, Profibus or use of fibre optics elements for trouble-free data
transmission.
Current Carrying Capacity description According to DIN VDE 0298, Part 4
Chemical parameters
Resistance to oil Acc. to DIN EN 60811-404; DIN VDE 0473-811-404, paragraph 10
Weather resistance Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture.
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -50 °C ; max +80 °C Ambient temperature in fully flexible operation min -40 °C ; max +80 °C
Application
Feeder cable for load-lifting equipment, e.g. spreader with high mechanical stress in gravity fed collector basket operation, with voltage rate up to 0,6/1 kV. Suitable for operation in cold environment.
Global data
Type designation GSLTOE-J/-O
Standard based on DIN VDE 0250
Certifications / Approvals GOST-R
Design features
Conductor Bare Electrolytic copper, extremely fine stranded, class FS
Insulation Special EPR compound based on type 3GI3 acc. DIN VDE 0207; for application in ambient
temperatures down to -40°C
Core identification Optimal identification as a result of light colored insulation with numbers printed in black;
protective earth conductor green/yellow
Individual screen Braid screen made of tinned copper wires. Transfer impedance optimized at 30 MHz.
Surface covered: at least 60% for shielded cores; at least 80% for twisted pairs
Core arrangement Core assembly: cores laid-up into bundles;
Bundle assembly: bundles laid-up around the central support element.
Support element Aramide threads woven round lead ball cords, arranged centrally. The breaking load is rated to
provide a safety factor of 5 when the cable is suspended vertically for 50 m. In case of bigger
cross-section and higher number of cores, the support element is a round rubber filler with Aramid threads.
Outer sheath Special PUR compound;
Colour: black
Mechanical parameters
Max. tensile load Increased tensile load through addtional support element
Torsional stress Designed for best torsional properties according to the corresponding application
Min. bending radius Acc. to DIN VDE 0298 part 3
Travel speed Hoist: up to 160 m/min
Basket design Dimensions depending on system (e.g. dependent on space requirements, hoisting height and
speed, wind load).Recommended: basket diameter min. 30xD; basket height approx. 45xD (where D = cable diameter).
