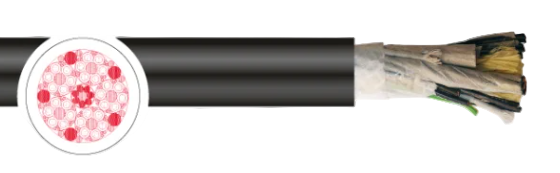

SPREADERFLEX 3GSLTOE Feed Cable for Load Lifting Devices
Engineered for spreaders under high mechanical stress in vertical basket operations, suitable for indoor and outdoor use
$15.00
Product No. | Dimension [n x mm²] | Outer-Ø | Cu-Index | Weight | sheath |
|
3002352 | 48 X 1 | 31,1 – 34,1 | 461,00 | 2340,00 | black |
|
3003364 | 24 X 2,5 | 29,1 – 32,1 | 576,00 | 1780,00 | black |
|
3003360 | 30 X 2,5 | 33,1 – 35,1 | 720,00 | 2260,00 | black |
|
3003365 | 36 X 2,5 | 34,5 – 37,5 | 864,00 | 2780,00 | black |
|
3003366 | 42 X 2,5 | 36,8 – 39,8 | 1008,00 | 3490,00 | black |
|
3002337 | 48 X 2,5 | 41,3 – 44,3 | 1273,00 | 4040,00 | black |
|
3002382 | 54 G 2,5 | 48,5 | 1296,00 | 4088,00 | black |
|
3001000 | 20 X 3,5 | 30,3 – 33,3 | 673,00 | 2360,00 | black |
|
3003367 | 24 X 3,5 | 32,0 – 35,0 | 847,00 | 2350,00 | black |
|
3003368 | 30 X 3,5 | 34,3 – 37,3 | 1059,00 | 2970,00 | black |
|
3003369 | 36 X 3,5 | 37,9 – 40,9 | 1270,00 | 3750,00 | black |
|
3003370 | 42 X 3,5 | 42,4 – 45,4 | 1488,00 | 4510,00 | black |
|
3002357 | 24 X 2,5 + 1 X (2 X 1)C | 31,1 – 34,1 | 645,00 | 2200,00 | black |
|
3002692 | 24 X 2,5 + 4 X (2 X 1)C | 41,2 – 44,2 | 851,00 | 3753,00 | black |
|
3002356 | 42 X 2,5 + 6 X (1 G 62,5/125) | 41,3 – 44,3 | 1076,00 | 3910,00 | black |
|
3002359 | 24 X 12AWG | 31,6 – 34,6 | 1008,00 | 2360,00 | black |
|
3002362 | 24 X 12AWG | 31,6 – 34,6 | 1008,00 | 2360,00 | black |
|
3002358 | 30 X 12AWG | 34,4 – 37,4 | 1008,00 | 2770,00 | black |
|
3002360 | 36 X 12AWG | 38,1 – 41,1 | 1319,00 | 3730,00 | black |
|
3002361 | 42 X 12AWG | 42,4- 45,4 | 1008,00 | 4500,00 | black |
|
SPECIAL FEATURES
• free from lacquer damaging substances and silicone (during production)
• lead ball cords for improved basket operation
REMARKS
• conform to 2014/35/EU-Guideline (“Low-Voltage Directive”) CE
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product information SPREADERFLEX 3GSLTOE
Conductor material:Bare copper strand, extremly fine stranded
Core insulation:Rubber compound
Core identification:White with black numerals with GNYE
Stranding:Cores stranded in bundles
Overall stranding:Bundles stranded in layers
Outer sheath:PUR
Sheath colour:Black
Rated voltage:Uo/U: 0,6 / 1 kV
Testing voltage:3,5 kV
Current-carrying-capacity:Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed:Acc. to DIN VDE 0298 part 3
Min. bending radius moved:Acc. to DIN VDE 0298 part 3
Operat. temp. fixed min/max:-50 °C / +80 °C
Operat. temp. moved min/max:-40 °C / +80 °C
Temp. at conductor:+90 °C
Resistant to oil:Acc. to EN 60811-404
Suspension height:Max. 50 m
Standard:Similar to DIN VDE 0250
