SSHCGEOEU 0.6/1 kV Dynamic Reeling Cable for Underground Scoop Loaders – High Tensile, Abrasion-Resistant Solution

Introduction

Underground mining operations demand exceptional reliability from electrical power distribution systems, particularly for mobile equipment that operates under extreme conditions. Dynamic reeling cables serve as the lifeline for Load-Haul-Dump (LHD) scoop loaders, shuttle cars, and other mobile mining equipment, enabling continuous power supply while withstanding the harsh realities of underground environments. These cables must endure constant flexing, abrasion against rock surfaces, exposure to moisture and chemicals, and the mechanical stresses of frequent coiling and uncoiling operations.

The importance of reliable power supply for LHD scoop loaders cannot be overstated. These versatile machines are essential for material handling in underground mines, responsible for loading blasted ore, transporting materials through narrow tunnels, and dumping loads at designated locations. Any power interruption can halt critical mining operations, leading to significant productivity losses and potential safety hazards. The SSHCGEOEU 0.6/1 kV dynamic reeling cable addresses these challenges through specialized design and construction that prioritizes durability, flexibility, and operational reliability under the demanding conditions of underground mining applications.

Model Specification

The cable designation (S)(N) SSHCGEOEU I 0.6/1 kV represents a sophisticated engineering solution specifically developed for underground mining reeling applications. This designation indicates several key characteristics: the "S" denotes suitability for reeling operations, while the voltage rating of 0.6/1 kV (600V between conductor and earth, 1000V between conductors) provides adequate power transmission capability for most LHD scoop loader applications.

The cable complies with multiple international standards, including DIN VDE 0250-812 for general requirements, DIN EN 60228 for conductor specifications, and various fire performance standards. This multi-standard compliance ensures the cable meets diverse regulatory requirements across different mining jurisdictions while maintaining consistent performance characteristics. The voltage rating of 0.6/1 kV represents the optimal balance between power transmission capability and safety considerations for underground mining environments, where personnel may work in proximity to energized equipment.

Key Features and Benefits

High Tensile Strength

The SSHCGEOEU 0.6/1 kV cable incorporates a central reinforcement element constructed from aramid yarns embedded in a cradle separator. This design feature provides exceptional tensile strength, with maximum ratings reaching up to 10,800 N for larger conductor sizes. The central support element distributes mechanical loads evenly throughout the cable structure, preventing conductor damage during dynamic reeling operations. This high tensile strength capability ensures reliable operation even under extreme pulling forces that commonly occur during LHD operations in confined underground spaces.

Abrasion & Tear Resistance

The outer sheath utilizes specialized rubber compounds designed to withstand the abrasive conditions typical in underground mining environments. The polychloroprene (PCP) outer sheath provides superior resistance to cutting, tearing, and wear from contact with rough rock surfaces, metal structures, and other hazardous materials encountered in mine tunnels. Additionally, the cable demonstrates excellent resistance to oil, fuel, moisture, acids, bases, UV radiation, and ozone exposure, ensuring long-term reliability in chemically aggressive mining environments.

Dynamic Flexibility

The cable construction enables superior flexibility for frequent pay-out and retrieval cycles, with travel speeds up to 160 m/min supported for optimal operational efficiency. The very finely stranded copper conductors (Class FS) provide exceptional flexibility while maintaining excellent electrical conductivity. The specialized insulation compounds and sheath materials are formulated to maintain their flexible properties across a wide temperature range (-25°C to +60°C for flexible operation), ensuring consistent performance regardless of seasonal temperature variations in underground mining operations.

Spiral & Cylindrical Reel Compatibility

The SSHCGEOEU cable design accommodates both mono-spiral reels and cylindrical reel systems commonly used in LHD scoop loader applications. The optimized cable geometry and construction materials ensure smooth winding and unwinding operations while minimizing internal stress concentrations that could lead to premature failure. The cable's torsional stress tolerance of +/- 50°/m allows for the complex cable movements required in sophisticated reel systems without compromising electrical or mechanical integrity.

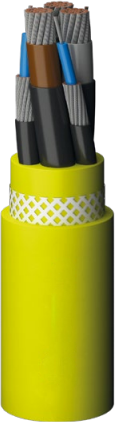

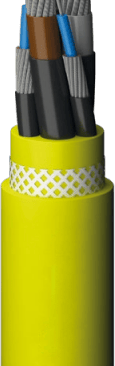

Construction Details

Conductor Design and Material

The cable utilizes very finely stranded copper conductors with tin plating for enhanced corrosion resistance and improved electrical conductivity. Available in conductor cross-sections ranging from 16 mm² to 120 mm², these conductors meet Class FS (Fine Stranded) requirements, providing optimal flexibility for dynamic applications. The tin plating offers additional protection against oxidation and chemical attack in harsh underground environments while maintaining excellent electrical contact characteristics over extended service life.

Insulation and Sheath Composition

The insulation system employs Ethylene Propylene Rubber (EPR) compounds specifically formulated for mining applications. The inner insulation uses PROTOLON special compound 3GI3, providing excellent electrical properties and mechanical durability. The core arrangement features three main conductors laid-up with double concentric control and protective earth conductors positioned in the outer interstices. This configuration ensures balanced electrical performance while providing comprehensive grounding protection for personnel safety.

The sheath system consists of multiple layers designed for maximum protection and durability. The inner sheath utilizes EPR rubber (special compound GM1b) for additional mechanical protection, while polyester braiding provides reinforcement against tensile and abrasive forces. The outer sheath incorporates polychloroprene (PCP) rubber with special compound 5GM5, delivering superior resistance to environmental hazards typical in mining applications.

Central Reinforcement Element Characteristics

The central reinforcement element represents a critical innovation in dynamic reeling cable design. Constructed from aramid yarns known for their exceptional strength-to-weight ratio, this element provides the primary tensile load-bearing capacity while maintaining cable flexibility. The aramid fibers are embedded in a cradle separator that distributes loads evenly and prevents localized stress concentrations that could compromise cable integrity. This design ensures that mechanical loads are transferred through the reinforcement element rather than the electrical conductors, preserving electrical performance throughout the cable's operational life.

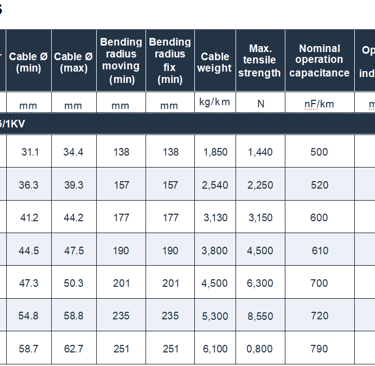

Performance Parameters

Temperature and Mechanical Load Ratings

The cable operates reliably across a wide temperature range, with maximum conductor temperatures of 90°C during normal operation and 250°C during short-circuit conditions. Ambient temperature ranges span from -40°C to +80°C for fixed installations and -25°C to +60°C for flexible applications, accommodating the diverse thermal conditions encountered in underground mining operations.

Mechanical load ratings include permanent tensile strength of 30 N/mm², ensuring adequate safety margins for demanding reeling applications. The cable supports travel speeds up to 160 m/min, enabling rapid deployment and retrieval cycles essential for efficient LHD operations. These performance parameters are validated through comprehensive testing protocols that simulate real-world mining conditions.

Bend Radius, Elongation, and Fatigue Testing

The cable design incorporates optimized bend radius requirements following VDE 0298-3 standards, with 4 x D for fixed installations and specified minimum distances for S-type directional changes. These bend radius specifications ensure that the cable can navigate the tight spaces and complex routing paths common in underground mining installations without exceeding material stress limits.

Fatigue testing demonstrates exceptional durability under repeated flexing cycles, with the cable maintaining electrical and mechanical integrity throughout extended operational periods. The specialized compound formulations and construction techniques employed in the cable design provide superior resistance to fatigue-induced failures that commonly affect cables in dynamic applications.

Abrasion and Tear Resistance Metrics

Comprehensive abrasion testing validates the cable's ability to withstand the harsh mechanical environment of underground mining operations. The specialized outer sheath compounds demonstrate superior performance against standardized abrasion tests, significantly outperforming conventional cable designs in terms of wear resistance and service life. Tear resistance testing confirms the cable's ability to resist catastrophic failure when subjected to sharp objects or severe mechanical abuse typical in mining environments.

Applications

Primary Use: Reeling Cable for LHD Scoop Loaders

The SSHCGEOEU 0.6/1 kV cable serves as the primary power transmission solution for LHD scoop loaders operating in underground mining environments. These versatile machines require reliable electrical power for propulsion, hydraulic systems, lighting, and control circuits while maintaining mobility throughout extensive underground tunnel networks. The cable's dynamic reeling capabilities ensure continuous power supply during loading, hauling, and dumping operations, eliminating the constraints imposed by fixed power distribution systems.

Secondary Uses

Beyond LHD applications, the cable proves equally effective for shuttle cars, which transport materials between mining faces and main haulage systems. Roof bolters, essential for ground support operations, benefit from the cable's flexibility and durability during positioning and drilling operations. Conveyor drive systems in mobile applications also utilize these cables for reliable power transmission while accommodating the dynamic movements required for efficient material handling operations.

Reel System Types

The cable design accommodates both mono-spiral reel systems and cylindrical reel configurations. Mono-spiral reels offer compact installation requirements and simplified maintenance procedures, making them ideal for smaller LHD units operating in confined spaces. Cylindrical reel systems provide higher cable capacity and more controlled cable management for larger equipment or applications requiring extended cable lengths. The cable's construction ensures optimal performance regardless of reel system type, with appropriate bend radius management and stress distribution characteristics.

Installation & Maintenance Guidance

Reel Mounting Best Practices

Proper reel mounting ensures optimal cable performance and longevity. Installation procedures should account for adequate clearance around the reel system to prevent cable contact with structural elements during operation. Reel mounting hardware must provide secure attachment while allowing for thermal expansion and mechanical vibrations typical in mining equipment applications. Proper alignment between the reel system and cable routing paths minimizes lateral forces that could cause premature cable wear.

Cable routing from the reel to the equipment should minimize sharp bends and avoid areas where the cable might contact abrasive surfaces. Installation of cable protection systems, such as cable guides or conduits, may be necessary in areas where cable contact with structural elements cannot be avoided. Proper grounding connections must be established to ensure personnel safety and equipment protection.

Inspection Intervals and Criteria

Regular inspection programs are essential for maintaining cable reliability and preventing unexpected failures. Visual inspections should be conducted daily during equipment operation, focusing on obvious signs of damage such as cuts, abrasions, or deformation of the outer sheath. Weekly inspections should include examination of cable connections, reel system operation, and any signs of overheating or electrical anomalies.

Monthly comprehensive inspections should evaluate cable flexibility, with particular attention to areas that experience frequent flexing during normal operations. Any reduction in cable flexibility or the appearance of cracks in the outer sheath indicates potential internal damage requiring immediate investigation. Electrical testing, including insulation resistance measurements, should be performed according to established maintenance schedules or when visual inspections indicate potential problems.

Repair and End-of-Life Considerations

Minor sheath damage may be repairable using appropriate vulcanization or mechanical splicing techniques, provided the damage does not compromise the electrical conductors or central reinforcement element. Repair procedures must utilize materials compatible with the original cable construction to ensure continued performance and safety. Major damage or conductor compromises typically require cable replacement rather than repair attempts.

End-of-life determination should consider both electrical performance degradation and mechanical condition deterioration. Cables showing significant flexibility reduction, multiple repair sites, or recurring electrical anomalies should be replaced proactively to prevent operational disruptions. Proper disposal procedures should account for the various materials used in cable construction, with particular attention to recycling opportunities for copper conductors and appropriate disposal of rubber compounds.

Frequently Asked Questions

Q: What distinguishes this dynamic reeling cable from standard mining cables?

A: The SSHCGEOEU cable incorporates a central reinforcement element made from aramid yarns, providing superior tensile strength specifically designed for dynamic reeling applications. Unlike standard mining cables, this design ensures that mechanical loads are carried by the reinforcement element rather than the electrical conductors, preserving electrical performance throughout repeated flexing cycles.

Q: How does the cable handle the harsh chemical environment in underground mines?

A: The cable features specialized rubber compounds in both the insulation and sheath systems that provide excellent resistance to oils, acids, bases, and other chemicals commonly encountered in mining environments. The polychloroprene outer sheath offers superior chemical resistance while maintaining flexibility across wide temperature ranges.

Q: What are the typical failure modes for dynamic reeling cables, and how does this design address them?

A: Common failure modes include conductor fatigue from repeated flexing, sheath damage from abrasion, and tensile overload during cable deployment. The SSHCGEOEU design addresses these through very fine conductor stranding for flexibility, abrasion-resistant sheath compounds, and the central aramid reinforcement element that carries tensile loads independently of the electrical conductors.

Q: Can this cable be used with different types of reel systems?

A: Yes, the cable is compatible with both mono-spiral and cylindrical reel systems commonly used in LHD applications. The construction provides appropriate flexibility and bend radius characteristics for both reel types, with optimized stress distribution to prevent damage during winding and unwinding operations.

Q: What maintenance practices are most critical for extending cable life?

A: Regular visual inspections for sheath damage, monitoring cable flexibility in frequently flexed areas, and ensuring proper reel system alignment are the most critical maintenance practices. Additionally, maintaining appropriate cable tension during operation and avoiding sharp bends or abrasive contact points significantly extends cable service life.

Summary & Recommendation

The SSHCGEOEU 0.6/1 kV dynamic reeling cable represents a comprehensive engineering solution for the demanding requirements of underground mining applications. Its specialized construction, featuring a central aramid reinforcement element, provides exceptional tensile strength while maintaining the flexibility essential for dynamic reeling operations. The advanced rubber compound formulations deliver superior resistance to the harsh chemical and mechanical conditions typical in underground mining environments.

The cable's compatibility with both mono-spiral and cylindrical reel systems, combined with its ability to support travel speeds up to 160 m/min, makes it an ideal choice for LHD scoop loaders and other mobile mining equipment. The comprehensive standards compliance ensures regulatory acceptance across diverse mining jurisdictions while maintaining consistent performance characteristics.

For underground mining operations seeking to optimize equipment reliability and minimize maintenance-related downtime, the SSHCGEOEU cable offers significant advantages over conventional power cables. Its specialized design addresses the primary failure modes associated with dynamic applications while providing the electrical performance necessary for modern mining equipment. Selection of this cable system should consider the specific operational requirements, environmental conditions, and reel system configurations to ensure optimal performance throughout the equipment's service life.

When selecting dynamic reeling cables for underground mining applications, prioritizing proven designs with specialized construction features appropriate for the intended service conditions ultimately provides the most reliable and cost-effective solution for maintaining continuous mining operations.
