(ST) 3E NTSCGEWOEU 3/30 kV Medium Voltage Submersible Cable – Flexible Copper Shield Design
Waterproof, Flame Retardant & Oil Resistant Cable Solution
$10.00
Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) in kV | 1.8/3 (3.6), 3.6/6 (7.2), 6/10 (12), 8.7/15 (17.5), 12/20 (24), 14/25 (29), 18/30 (36) |
Test Voltage | 6 kV to 43 kV based on rated voltage |
Nominal Voltage U | 3,000 V to 30,000 V based on rated voltage |
Maximum Conductor Temperature | 90 °C |
Max Conductor Temperature at Short Circuit | 250 °C |
Ambient Temperature Range (Fixed) | –40 °C to +80 °C |
Ambient Temperature Range (Flexible) | –25 °C to +60 °C |

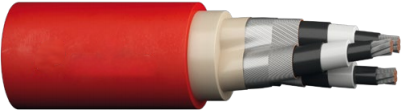

Conductor | Finely stranded tinned copper, class 5 |
Conductor Arrangement | Individual concentric conductors distributed over insulation of the three main cores |
Insulation | Semi-conductive EPR rubber special compound 3GI3 |
Insulation Screen | Semi-conductive EPR |
Inner Sheath | Special EPR compound, waterproof |
Outer Sheath | Chlorinated polyethylene (CM/CPE), special compound 5GM3, waterproof |
Mechanical Properties | Torsional stress: ±25°/m; Permanent tensile strength: 15 N/mm² |
Bending Radius | 6 × diameter (fixed installation); 10 × diameter (flexible operation) |
Chemical and Environmental Resistance | Flame retardant, oil resistant, ozone resistant, UV resistant, seawater resistant |

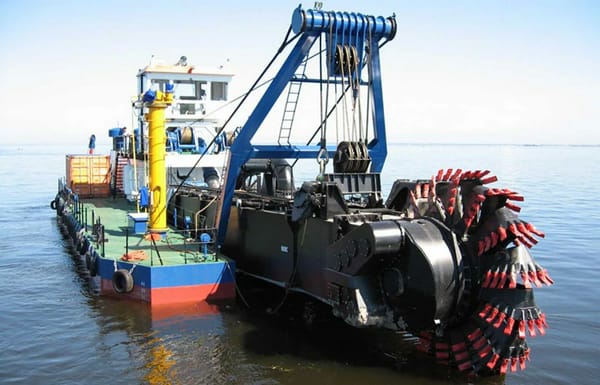

(ST) 3E NTSCGEWOEU I cable is a screened medium voltage power supply cable designed for water applications such as dredgers, floating docks, and pumps. It is constructed for use in demanding environments that experience high mechanical stresses, including sewage, salt water, and brackish water, with water depths reaching up to 500 meters. This cable design complies with VDE 0168 standards for dredging equipment, providing excellent durability and reliability in submerged and harsh conditions.
Standards and Certifications
DIN VDE 0250-813
DIN VDE 0298-4
MSHA P-189-4
DIN EN 60811-404 / IEC 60811-404
DIN EN 50525-2-21
GOST-R/-K/-B Fire Certificate of Russian Federation
DIN EN 60332-1-2 / IEC 60332-1-2
Product Features
Robust Screened Construction: Copper core shielding provides enhanced electrical safety and electromagnetic compatibility in submerged environments.
Designed for Water Use: Suitable for high mechanical stress applications in dredging, floating docks, and pumping equipment submerged up to 500 m.
Waterproof and Durable Sheathing: Special EPR inner sheath and chlorinated polyethylene outer sheath provide excellent waterproofing and resistance against harsh chemicals and UV exposure.
Wide Temperature Range: Performs reliably in extreme ambient temperatures from –40 °C to +80 °C.
Certified Standards Compliance: Meets international and regional standards for safety, fire resistance, and underwater application.
Application Areas

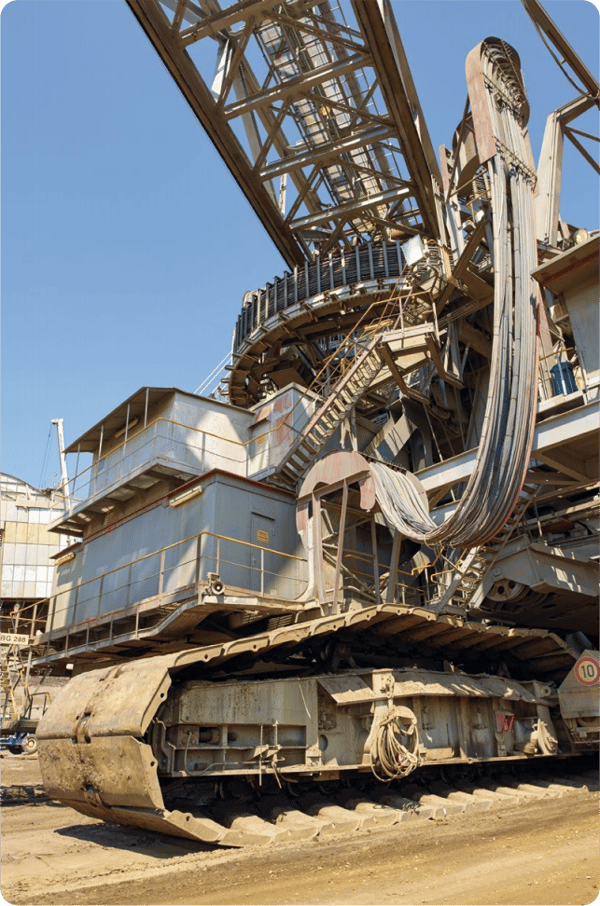

Power supply cable for underwater and floating mining and industrial machinery requiring copper core shielding, mechanical robustness, and waterproofing.
Installation and Maintenance
Recommended adherence to bending radius guidelines for fixed and flexible configurations. Regular inspections are essential to ensure waterproof integrity and mechanical protection for submerged cables.
Customization Services
Available in multiple voltage classes, conductor sizes, shielding configurations, and lengths tailored for specific underwater industrial applications.
Contact Us
For quotations, technical datasheets, and customized medium voltage flexible cable solutions for water applications, please contact our sales or technical teams.
