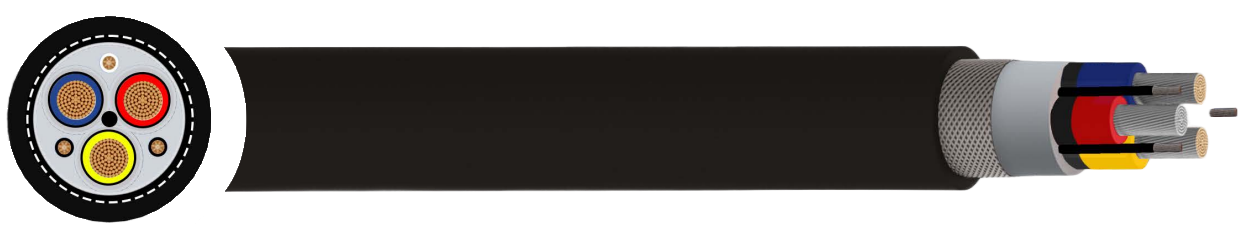

Stacker-Reclaimer Power Cable - Type 455
Flexible screening with two earth/one pilot configuration for reeling applications
$55.00
APPLICATION Particulary suited to stacker-reclaimer applications. Suitable for reeling and trailing applications. For use where two earth and one pilot cores are required. Other industrial applications |
CHARACTERISTICS Voltage Rating Type 455.3 - 3.3kV Type 455.6 - 6.6kV Type 455.11 - 11kV Type 455.22 - 22kV Type 455.33 - 33kV Temperature Rating -25℃ to +90℃ |
CONSTRUCTION
Conductor
Tinned annealed copper wires
Conductor Screen
Semi-conductive tape + thermosetting compound
Insulation
EPR (Ethylene Propylene Rubber) type XR-EP-90
Insulation Screen
Semi-conductive thermosetting compound
Cable Assembly
Three screened power, two earth and one pilot core laid up with right hand direction on the rubber centre filler
Inner Sheath
Semi-conductive thermosetting compound
Armour
Polyamide yarns
Outer Sheath
HD-CSP (Heavy-duty Chlorosulphonated Polyethylene) - extra heavy duty, oil resistant and flame retardant
Sheath Colour
● Black
STANDARDS
AS/NZS 2802: 2000, AS/NZS 1125:2001, AS/NZS 2802:2003, Water resistant
Flame retardant
UV, sunlight, ozone resistant
Oil resistant
