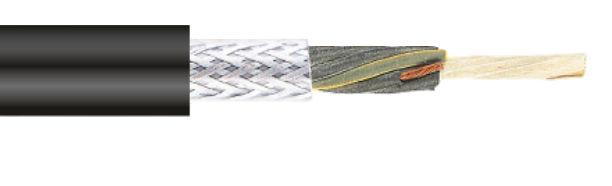

STCN (EMV) Lift & Control Cable for Trailing and Conveyor Systems
Versatile solution for drag chains, signal transmission, and reliable indoor/outdoor performance
$10.00

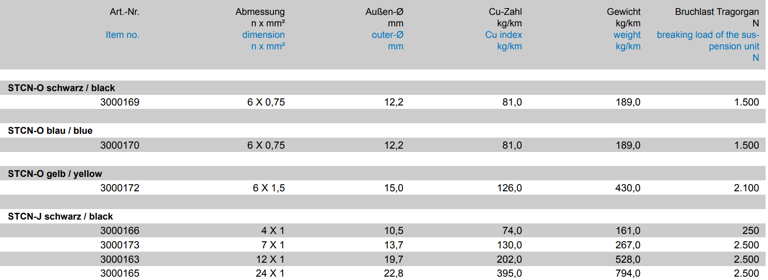

Structure & Specifications | |
conductor material conductor class core insulation core identification supporting element stranding shield outer sheath sheath colour printing rated voltage testing voltage conductor resistance min. bending radius fixed min. bending radius moved speed suspension height operat. temp. fixed min/max | bare copper strand acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6 rubber compound acc. to VDE 0293-308 up to 5 wires coloured, from 6 wi- res black with white numerals with or without GNYE textile supporting element cores stranded in layers copper braid tinned; coverage ca. 80% special rubber-compound black, blue, yellow yes Uo/U: 300/500 V 3 kV acc. to DIN VDE, see Technical Guideline 10 x d 10 x d max. 1,6 m / s max. 80 m -40 °C / +80 °C |
operat. temp. moved min/max -25 °C / +80 °C temp. at conductor +80 °C burning behavior self-extinguishing and flame retardant acc. to IEC 60332-2-1 resistant to oil acc. to EN 60811-2-1 standard similar to DIN VDE 0250 | |
Application |
lift cable, for trailing cable installation, drag chains and as control cable in conveyor faci- lities, machine-tools or as measure and signal transmission cable. Suitable for dry, hu- mid and wet rooms and outdoor use. |
Special Features |
• central supporting element with high tensile strength • free from lacquer damaging substances and silicone (during production) |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. • Available accessory you'll find on pages 15.35.XX |
