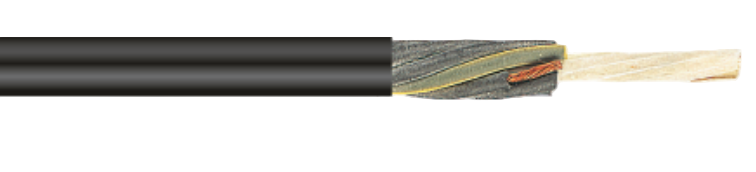

STN Lift & Control Cable for Trailing and Conveyor Applications
Reliable performance for drag chains, machine-tools, and indoor/outdoor installations
$5.00
Structure & Specifications | |
conductor material conductor class core insulation core identification supporting element stranding outer sheath sheath colour printing rated voltage testing voltage current carrying capacity min. bending radius fixed min. bending radius moved speed suspension height operat. temp. fixed min/max | bare copper strand acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6 rubber compound acc. to VDE 0293-308 up to 5 wires coloured; from 6 wi- res black with white numerals with or without GNYE textile supporting element cores stranded in layers special rubber-compound black yes Uo/U: 300/500 V 3 kV acc. to DIN VDE, see Technical Guideline 10 x d 10 x d max. 1,6 m / s max. 80 m -40 °C / +80 °C |
operat. temp. moved min/max -25 °C / +80 °C temp. at conductor +80 °C burning behavior self-extinguishing and flame retardant acc. to IEC 60332-2-1 resistant to oil acc. to EN 60811-2-1 standard similar to DIN VDE 0250 | |
Application |
lift cable, for trailing cable installation, drag chain applications and as control cable in conveyor facilities, machine-tools. Suitable for dry, humid and wet rooms and outdoor use. |
Special Features |
• central supporting element with high tensile strength • free from lacquer damaging substances and silicone (during production) |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. • Available accessory you'll find on pages 15.35.XX |
