SUPROMONT (N)3GHSSYCY I 6–35 kV Medium Voltage Mining Feeder Cable for Underground Mining & Tunnel Projects in Australia

SUPROMONT (N)3GHSSYCY I 6–35 kV Medium Voltage Mining Feeder Cable – Heavy Duty Power Supply for Australia’s Underground Mining Industry

Australia’s underground mining industry relies on dependable medium voltage power infrastructure to maintain continuous production, operational safety, and equipment reliability in some of the harshest environments on earth.

From underground coal mines in Queensland and New South Wales to hard-rock operations in Western Australia and tunnel construction projects in Victoria, mining operations require feeder cables capable of handling severe mechanical stress, abrasive underground conditions, moisture exposure, and constant operational demands.

When powering shiftable transformers, relocatable substations, underground compressors, and mobile medium-voltage equipment, cable reliability becomes mission-critical.

A failed feeder cable can result in:

• Production downtime

• Power interruption

• Equipment shutdowns

• Ventilation system disruption

• Costly maintenance delays

• Underground safety risks

That is why Australian mining operators increasingly demand heavy-duty medium voltage feeder cables specifically engineered for underground mining and tunnelling environments.

The SUPROMONT (N)3GHSSYCY I 6–35 kV medium voltage mining feeder cable is purpose-built for these applications.

Designed for underground mining power distribution systems, this high-performance feeder cable combines:

• Heavy-duty galvanised steel braid protection

• Advanced multi-layer screening

• High-grade EPR insulation

• Excellent tensile strength

• Robust mechanical durability

• Reliable medium-voltage electrical performance

• Long operational lifespan under harsh underground conditions

For mining engineers, underground electrical contractors, procurement managers, tunnel project operators, and industrial infrastructure teams across Australia, this type of mining feeder cable provides a dependable solution for powering critical underground equipment.

This article explores the cable’s construction, underground mining applications, real-world Australian use cases, mechanical advantages, and why medium voltage feeder cables are becoming increasingly important in modern underground mining and tunnelling projects.

Why Underground Mining Operations Need Heavy-Duty MV Feeder Cables

Underground mining environments place enormous stress on medium voltage power systems.

Unlike standard industrial installations, underground mining power infrastructure must tolerate:

• Mechanical impact

• Abrasion

• Water exposure

• Crushing forces

• Ground movement

• Continuous vibration

• Harsh operating temperatures

• Tight underground installation spaces

• Frequent relocation of equipment

In Australian underground mines, shiftable and relocatable equipment is commonly used to improve operational flexibility.

These systems often include:

• Mobile substations

• Underground transformers

• Compressors

• Ventilation equipment

• Conveyor systems

• Pumping systems

• Tunnel boring support systems

Because these units are regularly moved during mine development and production, feeder cables must offer both electrical reliability and strong mechanical protection.

Ordinary industrial power cables are often unsuitable for these conditions.

Mining operations instead require purpose-built feeder cables engineered specifically for underground applications.

What Is SUPROMONT (N)3GHSSYCY I 6–35 kV Cable?

SUPROMONT (N)3GHSSYCY I is a heavy-duty medium voltage mining feeder cable designed for underground mining and tunnelling applications requiring reliable power delivery to shiftable equipment.

The cable is engineered for:

• Underground medium-voltage power distribution

• Shiftable mining equipment

• Mobile substations

• Relocatable transformers

• Underground compressors

• Tunnel development projects

• Underground infrastructure systems

• Fixed and limited flexible installations

Its construction combines advanced electrical screening systems with heavy-duty mechanical protection to deliver reliable performance in demanding underground environments.

The cable is available in voltage ratings from:

• 6 kV to 35 kV

This makes it suitable for a wide range of underground mining and industrial infrastructure applications.

Built for Shiftable Underground Equipment

Modern underground mining increasingly depends on movable power infrastructure.

As mine development progresses, operators frequently relocate:

• Transformers

• Substations

• Switchgear

• Ventilation systems

• Underground pumping stations

Feeder cables supplying this equipment must withstand repeated handling and occasional movement without compromising electrical integrity.

The SUPROMONT (N)3GHSSYCY cable is engineered specifically for these shiftable applications.

Its robust construction helps maintain:

• Electrical reliability

• Mechanical protection

• Installation flexibility

• Operational safety

• Long-term durability

This is particularly important in Australian underground mining where operational continuity directly affects production efficiency.

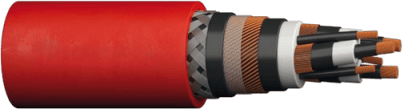

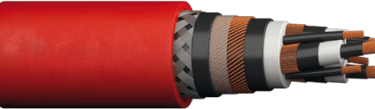

Cable Construction Designed for Harsh Underground Conditions

Every layer of the SUPROMONT (N)3GHSSYCY cable is engineered for demanding mining and tunnelling environments.

1. Finely Stranded Bare Copper Conductors

The cable uses Class 5 finely stranded bare copper conductors.

Advantages include:

• Improved flexibility

• Better handling during installation

• Reliable conductivity

• Reduced risk of conductor fatigue

• Enhanced installation efficiency

Although primarily designed for fixed and semi-flexible installations, the stranded conductor construction provides additional flexibility compared to rigid conductors.

2. High-Grade EPR Insulation System

The insulation system uses:

• Semi-conductive EPR layers

• PROTOLON HS EPR rubber compound (3GI3)

This insulation design provides:

• High dielectric strength

• Excellent thermal performance

• Improved electrical stability

• Reliable medium-voltage insulation

• Resistance to underground environmental stress

EPR insulation is widely used in mining applications because of its ability to withstand thermal and mechanical demands.

3. Individually Screened Main Cores

Each main power core incorporates an individually laid-up concentric PE copper screen.

This screening system improves:

• Electromagnetic compatibility

• Electrical safety

• Interference reduction

• Field distribution control

• Operational reliability

For underground mining power systems operating near sensitive electrical equipment, individual core screening is extremely important.

4. Multi-Core Configuration with Control Cores

The cable includes:

• Three main power cores

• Control cores positioned within outer interstices

The control cores are designed for:

• Monitoring systems

• Control circuits

• Operational signalling

• Equipment management functions

This integrated design simplifies underground installation and improves system efficiency.

5. Semi-Conductive Easy-Strip Inner Sheath

The cable uses a semi-conductive NBR easy-strip layer.

Benefits include:

• Easier cable preparation

• Faster termination work

• Improved maintenance efficiency

• Reduced installation time

• Better handling underground

Underground mining shutdowns are extremely expensive, so faster maintenance and cable preparation can significantly reduce downtime costs.

6. Bare Copper Wire Screen and Conductive Tape

The cable incorporates additional copper wire screening and conductive tape layers to improve:

• Electrical shielding

• Fault protection

• Electromagnetic control

• System safety

These features are critical in medium voltage underground mining installations.

7. Galvanised Steel Braiding for Mechanical Protection

One of the cable’s most important mechanical features is its galvanised steel braid reinforcement.

The steel braid provides:

• Crush resistance

• Tensile protection

• Impact resistance

• Improved structural integrity

• Mechanical durability

Underground mining cables are frequently exposed to:

• Falling rock

• Machinery impact

• Abrasive surfaces

• Underground traffic

• Mechanical handling damage

The galvanised steel braid significantly improves cable survival under these harsh conditions.

8. Heavy-Duty PVC Outer Sheath

The cable uses a robust PVC outer sheath compound designed for underground mining applications.

The sheath offers resistance to:

• Abrasion

• Oil

• Water

• Mechanical stress

• Underground contamination

This outer protection layer helps extend service life in aggressive underground environments.

Medium Voltage Performance for Underground Mining Infrastructure

The SUPROMONT (N)3GHSSYCY cable is designed for medium voltage mining systems operating between:

• 6 kV and 35 kV

This voltage range supports a wide variety of underground mining infrastructure including:

• Underground substations

• Distribution networks

• Shiftable transformers

• High-capacity mining equipment

• Tunnel construction power systems

The cable delivers stable electrical performance under continuous underground operating conditions.

Thermal Performance in Australian Underground Conditions

Australian underground mines often experience severe thermal conditions due to:

• High ambient temperatures

• Confined ventilation

• Heavy electrical loading

• Deep underground operations

The cable is engineered for:

Continuous Conductor Temperature

• 90°C

Short-Circuit Temperature

• 250°C

Ambient Temperature – Fixed Installation

• -40°C to +80°C

Ambient Temperature – Flexible Installation

• +5°C to +60°C

These thermal characteristics support reliable performance in demanding underground environments.

Mechanical Strength for Underground Mining Applications

Mechanical durability is essential for underground feeder cables.

The SUPROMONT (N)3GHSSYCY cable is engineered for high mechanical performance including:

• Permanent tensile strength: 15 N/mm²

• Heavy-duty steel braid reinforcement

• Strong crush resistance

• Excellent abrasion protection

• Reliable installation flexibility

These characteristics help reduce:

• Mechanical damage

• Installation failures

• Premature cable replacement

• Maintenance frequency

Installation Flexibility and Bending Performance

The cable supports both fixed installation and occasional flexible use.

Recommended bending radii include:

• Fixed installation: 6 × cable diameter

• Flexible installation: 10 × cable diameter

Correct bending practices help preserve:

• Insulation integrity

• Screening performance

• Mechanical structure

• Long-term operational reliability

Real-World Australian Underground Mining Applications

Queensland Underground Coal Mines

Queensland’s Bowen Basin remains one of Australia’s largest underground coal mining regions.

Underground operations in this region commonly use:

• Mobile substations

• Relocatable transformers

• Shiftable power systems

• Underground ventilation infrastructure

These systems require highly reliable medium voltage feeder cables capable of withstanding:

• Mechanical handling

• Underground moisture

• Abrasion

• Frequent relocation

• Harsh mining conditions

Mining operators in Queensland often prioritise heavy-duty steel-braided feeder cables because they improve:

• Operational reliability

• Installation durability

• Equipment uptime

• Long-term service life

New South Wales Underground Mining Operations

NSW underground coal operations often involve complex underground infrastructure systems.

Applications commonly include:

• Shiftable underground substations

• Longwall support systems

• Underground compressor stations

• Tunnel development power supply

In these environments, medium voltage feeder cables must deliver both:

• Reliable electrical performance

• Strong mechanical protection

The multi-layer screening and galvanised steel braid construction help improve reliability in these demanding underground conditions.

Western Australian Hard-Rock Mining Operations

Western Australia’s underground hard-rock mining sector relies heavily on medium voltage distribution systems.

Mining infrastructure commonly includes:

• Underground pumping systems

• Mobile substations

• Ventilation systems

• Ore handling systems

• Underground crushers

These applications often involve:

• Long cable runs

• High mechanical exposure

• Heavy equipment traffic

• Abrasive underground conditions

Heavy-duty feeder cables with steel braid protection are commonly preferred in these environments.

Victorian Tunnel Construction Projects

Victoria’s infrastructure sector continues expanding through major tunnel construction and underground transport projects.

Tunnel development environments create significant challenges including:

• Mechanical handling damage

• Abrasion exposure

• Tight installation spaces

• Heavy machinery movement

Medium voltage feeder cables supplying tunnel construction equipment must offer:

• Strong mechanical protection

• Reliable electrical performance

• Installation flexibility

• Long operational lifespan

The SUPROMONT cable design is highly suitable for these applications.

Mining Ports and Bulk Material Handling Infrastructure

The engineering principles behind underground mining feeder cables also apply to Australian bulk handling infrastructure.

Major mining export ports such as:

• Port Hedland

• Hay Point

• Dalrymple Bay

• Newcastle

• Port Kembla

operate large-scale electrical infrastructure systems powering:

• Conveyors

• Stackers

• Reclaimers

• Ship loaders

• Mobile substations

These environments expose cables to:

• Mechanical stress

• Outdoor conditions

• Heavy vibration

• Abrasion

• Industrial contamination

Heavy-duty medium voltage feeder cables with enhanced mechanical protection are increasingly important in modern port infrastructure.

Why Australian Mining Operators Prioritise Heavy-Duty MV Feeder Cables

Mining operators increasingly focus on reducing total operational cost rather than simply minimising initial cable purchase price.

A low-quality feeder cable can create:

• Unexpected shutdowns

• Expensive maintenance work

• Safety risks

• Production delays

• Infrastructure instability

By contrast, purpose-built mining feeder cables help improve:

• System reliability

• Equipment uptime

• Installation lifespan

• Maintenance efficiency

• Operational continuity

In underground mining, reliability often delivers greater value than upfront cost savings.

Technical Specification Highlights

The SUPROMONT (N)3GHSSYCY cable is available in multiple configurations including:

• 14/25 kV

• 18/30 kV

• 20/35 kV

Typical conductor sizes include:

• 35 mm²

• 50 mm²

• 70 mm²

• 95 mm²

• 120 mm²

• 150 mm²

• 185 mm²

Current carrying capacities can reach:

• Up to 488 A depending on configuration

The cable also offers strong tensile capability and robust construction weights suitable for underground mining infrastructure.

SEO Keywords Driving Mining Cable Procurement Searches

This article is optimised for mining procurement and engineering search intent including:

• SUPROMONT (N)3GHSSYCY

• 6–35 kV mining feeder cable

• Underground MV feeder cable Australia

• Medium voltage mining cable

• Underground transformer feeder cable

• Shiftable mining equipment cable

• Steel braided MV mining cable

• Tunnel project feeder cable

• Underground mining power cable Queensland

• Medium voltage tunnel cable NSW

• Hard rock mining feeder cable WA

These keywords align with real-world procurement searches across Australia’s mining and infrastructure industries.

Future Trends in Underground Mining Power Distribution

Australia’s underground mining industry continues moving toward:

• Greater electrification

• Automated mining systems

• Smart power infrastructure

• Deeper underground operations

• Higher energy demand

• Increased operational mobility

These trends place increasing demands on medium voltage feeder cable systems.

Future mining feeder cables will likely focus on:

• Higher current capacity

• Improved monitoring integration

• Enhanced mechanical protection

• Longer operational lifespan

• Reduced maintenance requirements

• Greater installation flexibility

Heavy-duty medium voltage feeder cables will remain critical for underground mining infrastructure development.

Choosing the Right Underground Mining Cable Supplier in Australia

When sourcing medium voltage mining feeder cables, Australian procurement teams typically evaluate suppliers based on:

• Mining industry experience

• Technical support capability

• Compliance understanding

• Mechanical durability

• Delivery reliability

• Stock availability

• Custom manufacturing capability

• Underground application expertise

Mining operators increasingly prefer suppliers familiar with Australian underground conditions and operational requirements.

Expert Summary

The SUPROMONT (N)3GHSSYCY I 6–35 kV medium voltage mining feeder cable is purpose-built for the demanding electrical and mechanical requirements of underground mining and tunnelling operations.

Its advanced construction — combining finely stranded copper conductors, individually screened EPR-insulated cores, multi-layer shielding systems, galvanised steel braid reinforcement, and a heavy-duty PVC sheath — delivers reliable medium-voltage power distribution for shiftable transformers, mobile substations, compressors, and underground infrastructure systems.

For Australian underground coal mines in Queensland and New South Wales, hard-rock mining operations in Western Australia, and tunnel construction projects across Victoria and other regions, this type of heavy-duty feeder cable provides the durability, safety, and operational reliability required to maintain continuous production under harsh underground conditions.

As Australia’s underground mining and infrastructure sectors continue evolving toward greater electrification and operational flexibility, robust medium voltage mining feeder cables will remain a critical component of safe, efficient, and reliable underground power distribution systems.

How to Reach Us

Get in Touch

SiteMap

hongjing.Wang@feichuncables.com

Product Catalogue

Home

Products

News

Contact Us

Reeling Cable

Festoon Cable

Shore Power Cable

Mining Cable

Scan to add us on WeChat
