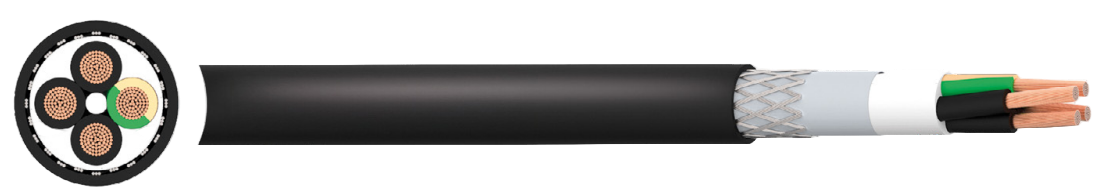

SY LSZH Control Flexible Cable
Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units.
$15.00
APPLICATION Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for flexible use in conditions of light mechanical stress. Can be used outdoors when protected against direct sunlight, and in dry or moist conditions indoors. The braided screen offers mechanical protection and a level of electro-magnetic shielding. The galvanized coating helps protect against corrosion. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. |
CHARACTERISTICS Voltage Rating (Uo/U) 300/500V Temperature Rating -15ºC to +70°C Minimum Bending Radius 10 x overall diameter |
CONSTRUCTION

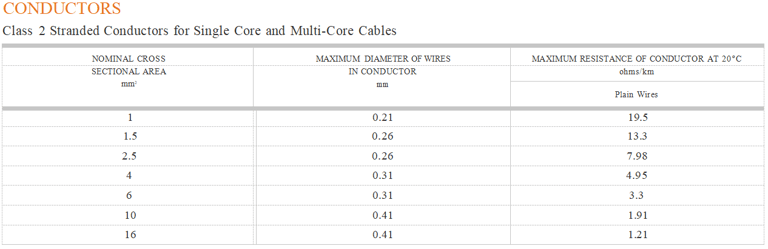

Conductor
Class 5 flexible copper conductor
Insulation
LSZH (Low Smoke Zero Halogen) Type TI6
Bedding
LSZH (Low Smoke Zero Halogen) Type TM7
Braiding
GSWB (Galvanized Steel Wire Braid) minimum coverage of braiding shall be 50%
Sheath
LSZH (Low Smoke Zero Halogen) Type TM7
Core Identification
2 core: Blue Brown
3 core: Blue ● Brown e Green/Yellow
4 core: ● Brown ● Black ● Grey e Green/Yellow
5 core: ● Blue ● Brown ● Black Grey e Green/Yellow
Sheath Colour
● Black
