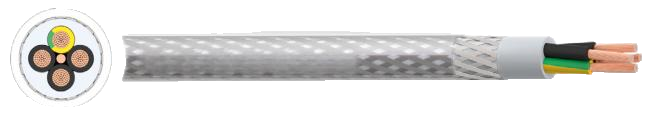

SY PVC (YSLYSY) Control Cable
These cables are not used for outdoor or underground installation.
APPLICATION
steel wire braided flexible connecting cables for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load. Suitable for use in dry, moist and wet rooms. The galvanised steel wire braid serves as protection against mechanical traverse loads and acts as a magnetic screen against interference. These cables are not used for outdoor or underground installation.
CHARACTERISTICS
Voltage Rating
300/500V
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 12.5 x overall diameter
CONSTRUCTION
Conductor
Class 5 flexible plain copper
Insulation
PVC (Polyvinyl Chloride)
Inner Sheath
PVC (Polyvinyl Chloride)
Armour
GSWB (Galvanised Steel Wire Braid)
Sheath
PVC (Polyvinyl Chloride)
Core Identification
Black with White number
From 3 cores: Green/Yellow Colour-coded cores available upon request
Sheath Colour
Transparent
