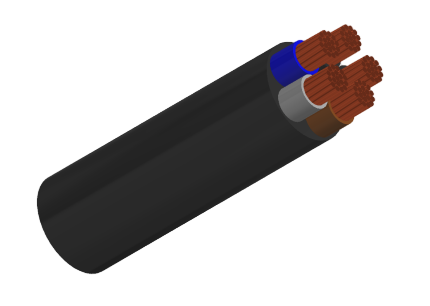

SZ1-K(AS+) 0.6/1kV
Cable
Application and Description
These cables are specially designed to transmit electric power in the extreme conditions that there are in a large fire, assuring electric supply to emergency circuits, like signaling light, fume extractors, acustic alarms, water pumps, etc. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic in public places such as: hospitals, schools, museums, airport, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.
Standards
UNE 211025
IEC 60502
EN 60332-1
EN 50266
EN 50267-1
EN 50267-2
EN 61034
IEC 60332-1
IEC 60332-3
IEC 60754-1
IEC 60754-2
IEC 61034
IEC 60331

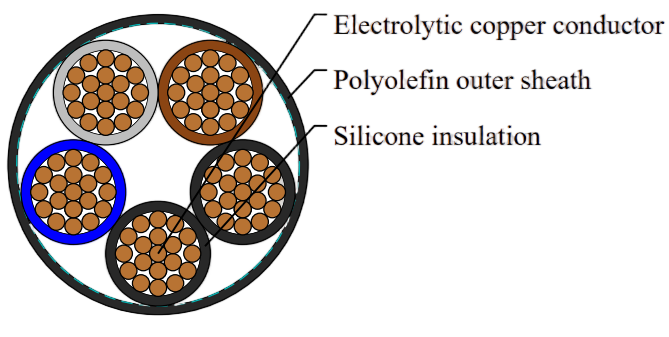

Cable Construction
Flexible electrolytic annealed copper conductor
Class 5 in accordance with IEC 60228.
Silicone insulation, type EI2, according to UN-EN 50363.
Color coded to HD 308
Thermoplastic polyolefin outer sheath according to UNE 21123
Technical Characteristics
Working voltage | 600/1000 volts |
Test voltage | 2000 volts |
Minimum bending radius | 5 x Ø |
Working temperature | -15°C to +90°C |
Short circuit temperature | +250°C |
Insulation resistance | 20 MΩ x km |
Halogen free | IEC 60754-1, EN 50267-2-1 |
No corrosive gases | IEC 60754-2, EN 50267-2-2 |
Low smoke density | IEC 61034, EN 50268-2 |
Flame retardant | IEC 60332-1, EN 50265-2-1 |
Non-flame propagating | IEC 60332-3, EN 50266-2 |
