TFOI/TFOU (MTX) 3.6/6kV, 6/10kV, 8.7/15kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant MV Power Cables (Halogen Free Inner Covering)
Cable
Application
These armoured MV cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free.
Standards
IEC 60092-350/354/360
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

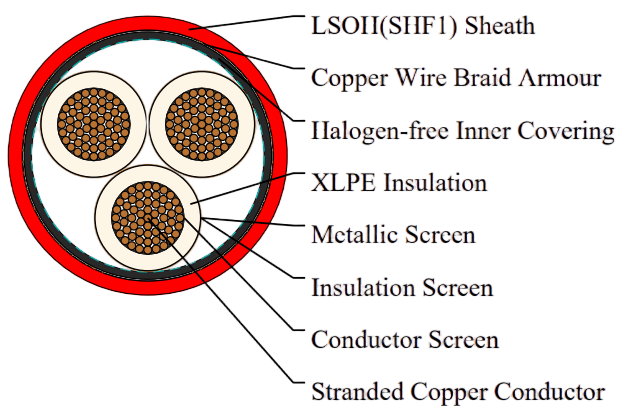

Construction
Conductors : Class 2 stranded copper conductor.
Conductor Screen : Semi-conducting layer (tape/compound).
Insulation : XLPE.
Insulation Screen : Semi-conducting layer (tape/compound).
Metallic Screen : Copper tape
Inner Covering : Halogen free compound.
Armour : Copper wire braid.
Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
Coloured tape shall be inserted under metallic screen.
3core : Red, Yellow, Blue.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations : 12×OD (single core); 9×OD (three core)
Temperature Range : -30℃ ～ +80℃
