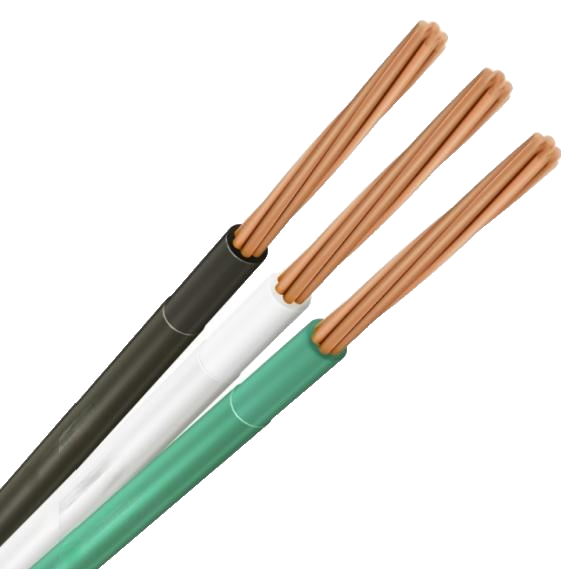

THHN/THWN-2 600V CT RoHS CABLE
Soft copper conductor, PVC insulated and jacket in nylon.
APPLICATION
Low voltage electrical energy distribution; for use in electrical wiring of buildings, feeder circuits, branches and secondary industrial, commercial and residential indoor networks. Special for installations in abrasive sites or sites contaminated with oil, grease, gasoline, and other chemical substances.They are suitable for installation in ducts, pipes, boards, and cable trays according to RETIE article 20.3 literal J, from 12 AWG gauge and larger.

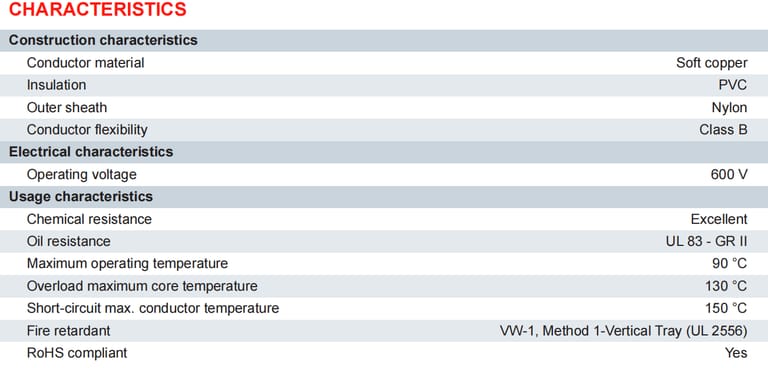

Construction
Conductor
Soft copper conductor, concentric stranded, Class B.
Insulation
Polyvinyl chloride (PVC), flame retardant (FR), resistant to heat, abrasion and humidity, resistant to sunlight (SR) in black, free of hazardous substances (RoHS).
Jacket
External cover in polyamide (nylon), resistant to gasoline and oils (GR II).
Operating Temperature
90°C dry and wet places.
Operating Voltage
600 V
Identification
Insulation in colors according to the manufacturing standard.
