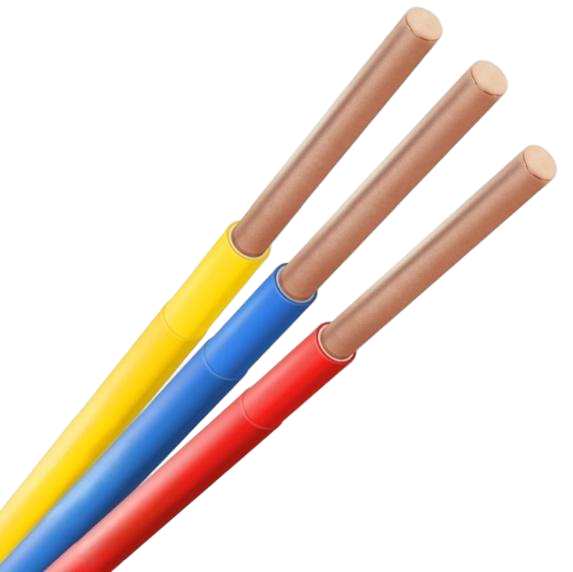

THHN/THWN-2 600V RoHS WIRE
Soft copper wire, PVC insulated and outer jacket in nylon.
APPLICATION
Used for electrical wiring in buildings, in feeder circuits, branches and secondary industrial, commercial and residential indoor networks. Special for installations in abrasive environments or environments contaminated with oil, grease, gasoline and other chemical substances.
They are suitable for installation in ducts, pipes, boards and cable trays according to RETIE article 20.3, literal J, from 12 AWG size and larger.

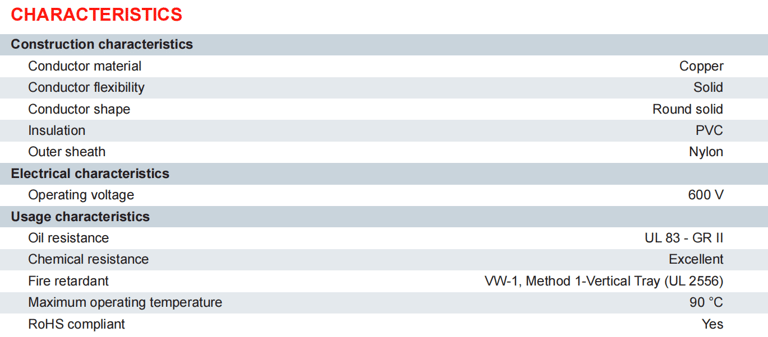

CONSTRUCTION
Conductor
Soft copper wire.
Insulation
Polyvinyl chloride (PVC), flame retardant (FR), resistant to heat, abrasion and humidity, resistant to sunlight (SR) in black, free of hazardous substances (RoHS).
Jacket
Polyamide (Nylon), resistant to gasoline and oils (GR II).
Operating Temperature
90°C dry, moisture and wet places.
Operating Voltage
600 V
Identification
• Insulation in colors according to the manufactuing standard: Black, White, Red, Green, Blue and Yellow.
