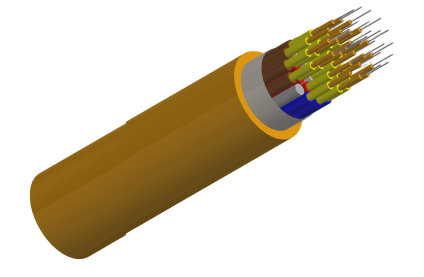

Tight Buffer Breakout PVC/LSZH Jacketed Cable
Cable
Application
Breakout Cable is designed for routing to different locations and direct termination of fibers in the field. The cable is mostly suitable for pre-terminated cable assemblies.
Description

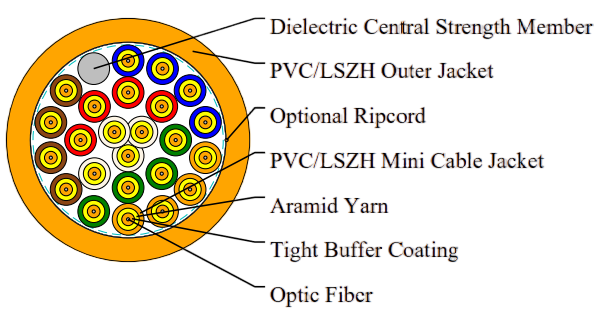

The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction. Each fiber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded mini cable may be stranded around a central strength member which can be either FRP or flexible all-dielectric. Outer Jacket may be PVC or LSZH.
Mechanical Properities
Minimum Bending Radius: |
| Maximum Compressive Load: | 3000N for unarmoured |
Under installation: | 20×OD |
| 5000N for armoured |
During operation | 10×OD for unarmoured cables | Repeated Impact: | 2.9 N.m (J) 3×2 impacts |
| 10×OD for unarmoured cables | Twist (Torsion): | 180×10 times, 125×OD |
Temperature Range: |
| Cyclic Flexing: | 25 cycles for armoured cables. |
Operating Temperature Range: | -40℃(-40℉) to +70℃(+158℉) |
| 100 cycles for unarmoured cables. |
Storage Temperature Range: | -50℃(-58℉) to +70℃(+158℉) | Crush Resistance: | 1750N/cm (1000lb/in) |
