Tight Buffer Distribution PVC/LSZH Jacketed Cable
Cable
Application
Breakout Cable is designed for routing to different locations and direct termination of fibers in the field. The cable is mostly suitable for pre-terminated cable assemblies.
Description

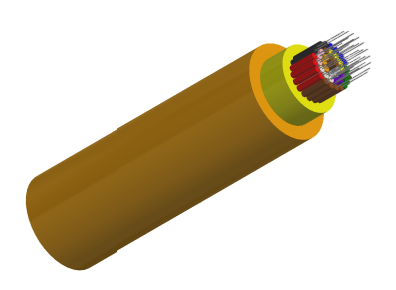

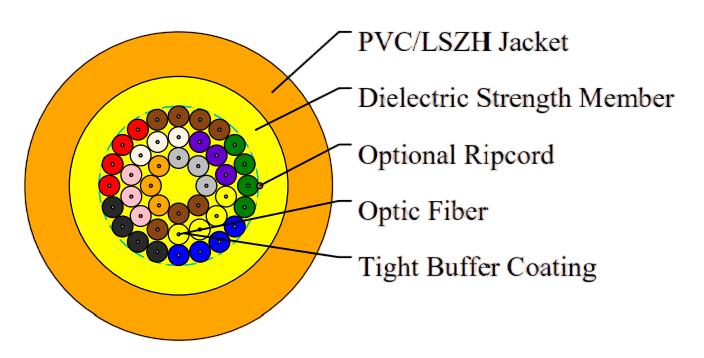

The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction. Each fiber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded mini cable may be stranded around a central strength member which can be either FRP or flexible all-dielectric. Outer Jacket may be PVC or LSZH.
Mechanical Properties
Minimum Bending Radius: | Maximum Compressive Load: 2000N |
Under installation: 20×OD | Repeated Impact: 2.9 N.m (J) 3×2 impacts |
During operation: 10×OD | Twist (Torsion): 180×10 times, 125×OD |
Temperature Range: | Cyclic Flexing: 25 cycles for armoured cables |
Operating Temperature Range: -40℃(-40℉) to +70℃(+158℉) | 100 cycles for unarmoured cables. |
Storage Temperature Range: -50℃(-58℉) to +70℃(+158℉) | Crush Resistance: 1485N/cm (850lb/in) |
