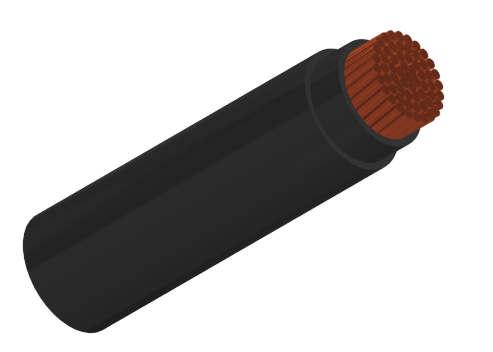

TI/TU (MTX300) 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Single Core)
Cable
Application
These unarmoured power & control cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free.
Standards
IEC 60092-350/353/360
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

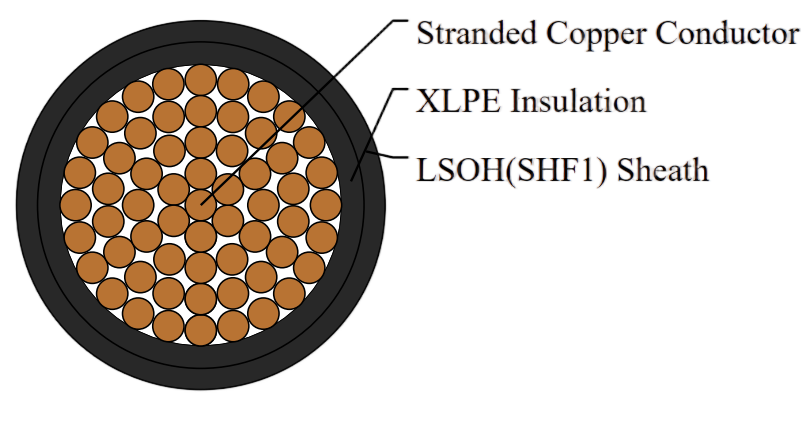

Construction
Conductors : Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.
Insulation : XLPE.
Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
Single core : Black
Mechanical and Thermal Properties
Bending Radius for Fixed Installations : 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range : -30℃ ~ +80℃
