TOI/TOU (MTX300) 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Power & Control Cables (Single Core)
Cable
Application
These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free.
Standards
IEC 60092-350/353/360
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

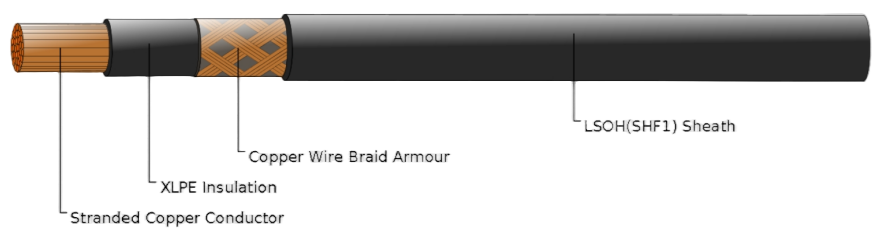

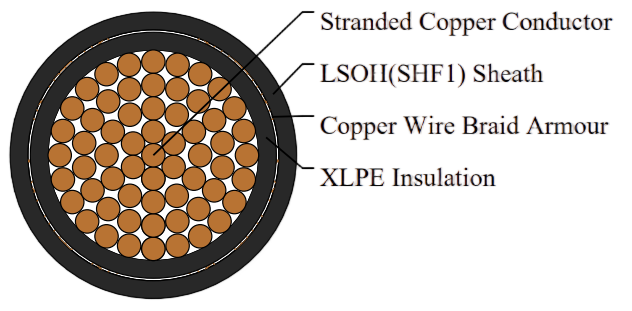

Construction
Conductors : Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.
Insulation : XLPE.
Armour : Copper wire braid.
Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
Single core : Black.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations : 6×OD
Temperature Range : -30℃ ~ +80℃
