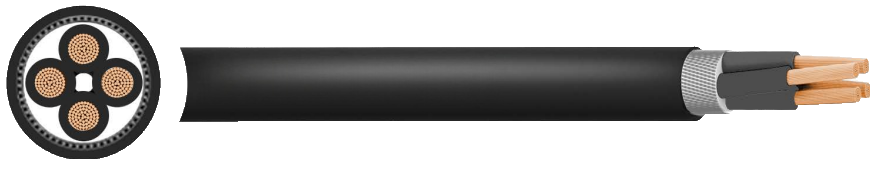

Torsion Resistant Loop Screened LSZH 1kV Turbine Cable
STANDARDS:IEC 60502-1, IEC 60228, EN 50363
APPLICATION
Torsion resistant loop screened power cables are designed for special application conditions in wind turbines where under medium mechanical stress and for operation outdoors or under permanent influence of seawater. Oil, UV, Ozone resistant.
CHARACTERISTICS
Rated Voltage Uo/U
0.6/1kV
Temperature Rating Fixed: -40OC +90OC
Flexed: -35OC +90OC
Minimum Bending Radius Fixed: 4x Overall Diameter
Flexing: 6x Overall Diameter
Torsion Resistance
± 100°/m
Maximum Tensile Load 15N/mm2 (in operation)
CONSTRUCTION
Conductor
Stranded bare copper
Insulation
EPR (Ethylene Propylene Rubber)
Screen
TWCB (Tinned wire copper braid)
Sheath
HF-EVA (Halogen Free Ethylene-Vinyl Acetate)
Sheath Colour
● Black
