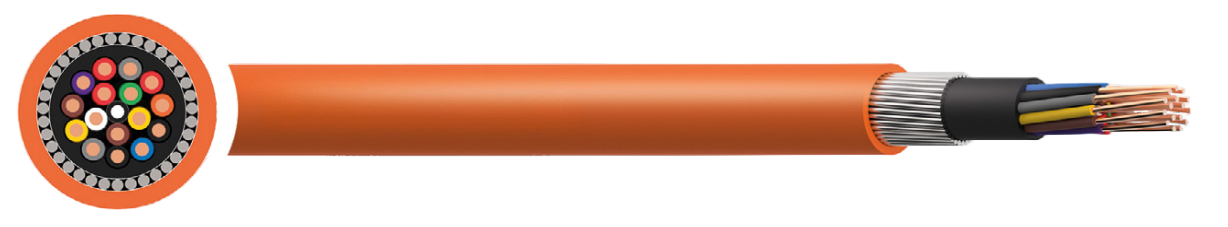

Traffic Signal Power Cable BS 6346 SWA PVC
Durable armoured cable for traffic signal systems and high-core applications requiring mechanical strength
$15.00
APPLICATION
For the interconnection of traffic signal equipment or other applications requiring high core configurations with mechanical robustness.
STANDARDS
BS 6346, BS 50363
CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Temperature Rating
Fixed: -15°C to +70°C
Short Circuit Temperature
+160°C
Minimum Bending Radius
6 x overall diameter
CONSTRUCTION
Conductor
Class 1 annealed copper conductor
Insulation
PVC (Polyvinyl Chloride)
Bedding
Polymeric compound with a tensile strength of not less than 4N/mm2 and an elongation break of not less than 50%
Armour
Single layer of galvanized wires laid in a right direction
Sheath
PVC (Polyvinyl Chloride)
Sheath Colour
Orange
