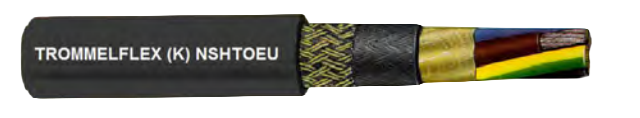

(K) NSHTOEU Low Voltage Reeling Cable
Flexible Cable Designed for Medium Mechanical Stresses
$15.00
Application
Flexible low voltage reeling cable for application under medium mechanical stresses.
Global data
Type designation :NSHTOEU
Standard: DIN VDE 0250-814
Design features
Conductor Tinned copper, flexible class 5 acc. to DIN EN 60228 / DIN VDE 0295
Insulation Rubber compound type 3GI3 acc. to DIN VDE 0207-20
Core identification Up to 5 cores: colored in accordance with DIN VDE 0293-308
From 6 cores: black with white numbers
Core arrangement Central filler, plastic or textile, if necessary covered with rubber. Cores twisted at short length of
lay
Inner sheath Rubber compound type 5GM3 acc. to DIN VDE 0207-21
Reinforcement Wide-meshed polyester braid, embedded in the sheath
Outer sheath Extruded rubber compound type 5GM5 acc. to DIN VDE 0207-21. Abrasion and tear resistant, oil
and flame resistant;
Colour: black
Electrical parameters
Rated voltage 0.6/1 kV (600/1000V)
Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC 0.9/1.8 kV
AC Test Voltage 2.5 kV (5 Min.)
Current Carrying Capacity description Acc. to DIN VDE 0298-4
Chemical parameters
Resistance to fire Acc. to IEC 60332-1 (EN 50265-2-1)
Resistance to oil Acc. to EN 60811-404
- ASTM No. 2: 24h at 100 °C
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -40 °C ; max +80 °C Ambient temperature in fully flexible operation min -25 °C ; max +80 °C

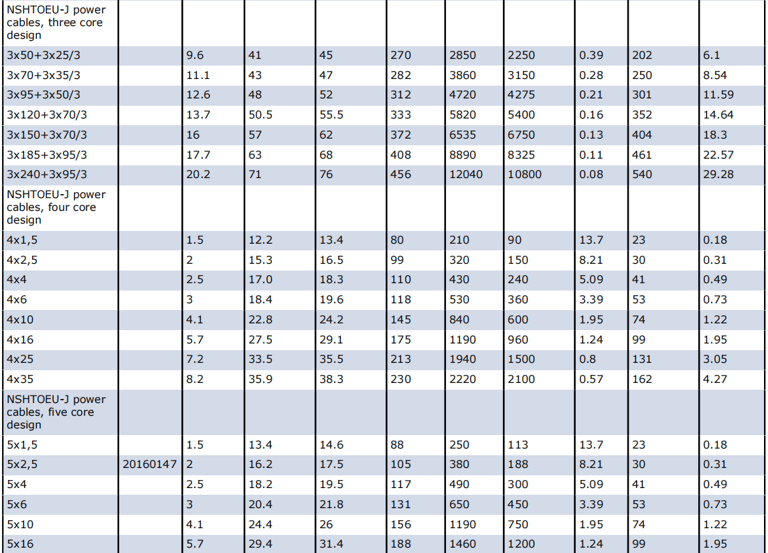

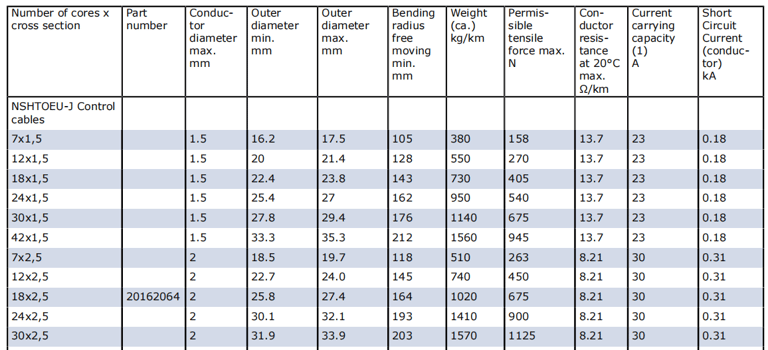

Mechanical parameters Max. tensile load on the conductor | 15 N/mm² |
Torsional stress | ± 50 °/m |
Min. bending radius | Acc. to DIN VDE 0298 part 3 |
Travel speed | - Reeling operation: up to 120 m/min |
