TROMMELFLEX KSM-S (N) SHTOEU High-Flex Power Reeling Cable for E-GTG Cranes in Heavy-Duty Applications

Introduction

Modern container terminals and port operations increasingly rely on electric rubber-tyred gantry (E-RTG) cranes, also known as electric ground-to-gantry (E-GTG) systems, to enhance operational efficiency whilst reducing environmental impact. These sophisticated crane systems present unique power supply challenges that demand specialised cable solutions capable of withstanding continuous reeling operations, harsh weather conditions, and the demanding mechanical stresses inherent in port environments.

The TROMMELFLEX KSM-S (N) SHTOEU represents a breakthrough in power reeling cable technology, specifically engineered to address the rigorous requirements of E-GTG crane applications. This high-flex power reeling cable combines advanced materials science with proven German engineering principles to deliver unmatched performance in mobile reeling systems. For port operators seeking reliable, long-lasting cable solutions for their electric crane infrastructure, the TROMMELFLEX series offers the perfect balance of durability, flexibility, and electrical performance.

Product Overview

The TROMMELFLEX KSM-S (N) SHTOEU is a premium power reeling cable designed specifically for electric RTG (E-GTG) cranes and mobile reeling systems operating in demanding industrial environments. This German-engineered cable solution addresses the critical need for reliable power transmission in applications where conventional cables typically fail due to continuous flexing, torsional stresses, and exposure to harsh environmental conditions.

Manufactured to exacting DIN VDE standards, this power reeling cable for E-GTG cranes incorporates advanced rubber compound technology and precision-stranded conductors to ensure exceptional service life even under the most challenging operating conditions. The cable's design philosophy centres on providing maximum flexibility whilst maintaining electrical integrity throughout millions of reeling cycles, making it the preferred choice for port authorities and crane operators worldwide.

The flexible cable for crane reels features an innovative construction that allows for both vertical and horizontal drum operations, accommodating the diverse movement patterns required in modern container handling operations. Whether deployed in ship-to-shore cranes, rail-mounted gantry systems, or mobile harbour cranes, the TROMMELFLEX KSM-S (N) SHTOEU delivers consistent performance that port operators can rely upon.

Key Features & Construction

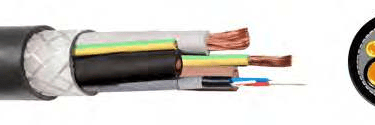

The TROMMELFLEX KSM-S (N) SHTOEU incorporates a sophisticated multi-layer construction designed to withstand the demanding requirements of continuous reeling applications. At its core, the cable features fine-stranded bare copper conductors manufactured to Class 5 specifications according to DIN VDE 0295 and IEC 60228 standards. These ultra-flexible conductors utilise precise stranding techniques that ensure maximum flexibility whilst maintaining excellent electrical conductivity throughout the cable's operational life.

The primary insulation system employs EPR (Ethylene Propylene Rubber) compounds conforming to 3GI3 specifications, providing enhanced thermal stability and electrical performance. This advanced insulation material offers superior resistance to temperature extremes, ensuring reliable operation from -40°C to +90°C continuous operation, with short-circuit capability up to 250°C. The EPR insulation system also provides excellent dielectric properties and long-term aging resistance critical for port applications.

Surrounding the insulated cores, an inner sheath constructed from specialised 5GM3 rubber compound provides additional mechanical protection and maintains core geometry during flexing operations. This intermediate layer serves as a crucial barrier against moisture ingress whilst providing cushioning that protects individual cores from mechanical damage during dynamic operation.

The cable's reinforcement system features a high-tensile polyester braid that provides exceptional anti-torsion properties and tensile strength up to 5000 pounds. This reinforcement layer is critical for applications involving vertical reeling where the cable must support its own weight plus additional mechanical loads imposed by crane operations.

The outer sheath utilises premium 5GM5 rubber compound, specifically formulated for heavy-duty industrial applications. This oil-resistant rubber sheathed crane cable provides outstanding resistance to abrasion, oils, chemicals, and UV radiation commonly encountered in port environments. The flame-retardant properties of the outer sheath ensure compliance with international safety standards whilst the textured surface provides enhanced grip for handling operations.

Electrical & Mechanical Performance

The TROMMELFLEX KSM-S (N) SHTOEU operates at a rated voltage of 0.6/1 kV, making it suitable for standard industrial power distribution systems commonly used in port crane applications. The cable's electrical design incorporates safety margins that ensure reliable operation even under transient voltage conditions typical in heavy industrial environments.

With a maximum conductor operating temperature of 90°C and short-circuit capability up to 250°C, the cable provides excellent thermal performance that accommodates both steady-state and fault conditions. The ampacity rating of 170 amperes per conductor ensures adequate current-carrying capacity for high-power crane operations whilst maintaining temperature rise within acceptable limits.

The cable's mechanical performance characteristics are equally impressive, with design parameters specifically optimised for reeling applications. The minimum bending radius specifications allow for tight drum operations whilst the cable's torsional performance accommodates the complex movement patterns required in modern crane systems. The cable demonstrates exceptional fatigue resistance, with laboratory testing confirming performance through millions of flex cycles without degradation of electrical or mechanical properties.

High-speed reeling operations, common in modern automated container terminals, demand cables capable of maintaining performance during rapid acceleration and deceleration cycles. The TROMMELFLEX construction incorporates design elements that prevent core migration and maintain electrical characteristics even during high-speed reeling operations exceeding 2 metres per second.

Integrated Fibre Optic Option

Modern E-GTG crane systems increasingly require high-speed communication capabilities for real-time monitoring, control systems, and data acquisition. The TROMMELFLEX KSM-S (N) SHTOEU addresses this requirement through its optional hybrid construction featuring integrated optical fibres alongside power conductors.

The reeling crane cable with fibre optic integration supports both multi-mode and single-mode optical fibres, accommodating diverse communication requirements. Multi-mode options include 50/125µm and 62.5/125µm configurations suitable for shorter-distance, high-bandwidth applications such as video monitoring and local area networks. Single-mode 9/125µm fibres provide long-distance communication capabilities essential for integration with port-wide management systems.

The optical fibres are housed within a protected central core tube, utilising loose-tube construction that allows the fibres to move freely during cable flexing operations. This design prevents stress concentration on the optical elements whilst maintaining bend radius performance essential for reeling applications. Special gel-filled tubes provide additional moisture protection and mechanical isolation.

Hybrid cable construction presents unique engineering challenges, particularly in maintaining both electrical and optical performance during continuous flexing. The TROMMELFLEX design incorporates buffer zones and stress-relief elements that protect optical fibres from mechanical stress whilst preserving the cable's overall flexibility characteristics.

Application Scenarios

Container terminals represent the primary application environment for the TROMMELFLEX KSM-S (N) SHTOEU, where electric RTG (E-GTG) cranes provide the backbone of container handling operations. These facilities demand cable solutions capable of operating continuously in harsh coastal environments whilst providing reliable power transmission for high-capacity crane systems. The cable's construction specifically addresses the challenges of salt air exposure, temperature extremes, and continuous mechanical stress inherent in port operations.

Ship-to-shore (STS) cranes present another critical application where long reeling distances and high-capacity power transmission requirements demand premium cable solutions. These massive crane systems typically require cable runs exceeding 100 metres with frequent reeling operations as containers are transferred between ships and terminal transport systems. The TROMMELFLEX cable's high-flex construction ensures reliable performance throughout these extended reeling cycles.

Rail-mounted gantry (RMG) systems in intermodal terminals benefit from the cable's ability to handle both horizontal and vertical reeling patterns. These systems often operate in confined spaces where tight bending radii are unavoidable, making the cable's enhanced flexibility characteristics essential for reliable operation.

Heavy-duty mobile port equipment, including mobile harbour cranes and reach stackers equipped with reeling power systems, represents a growing application segment. These systems demand cables capable of withstanding both reeling stresses and the additional mechanical challenges imposed by mobile operations across varied terrain.

The benefits of implementing TROMMELFLEX solutions in these applications include significantly reduced maintenance requirements due to the cable's enhanced durability construction. Port operators report maintenance intervals extended by 200-300% compared to conventional cables, resulting in substantial cost savings and improved operational availability.

High electrical reliability ensures consistent crane performance, reducing downtime associated with cable failures that can disrupt terminal operations and impact vessel scheduling. The cable's robust construction provides predictable service life under harsh environmental conditions, enabling better maintenance planning and operational forecasting.

Technical Specifications Snapshot

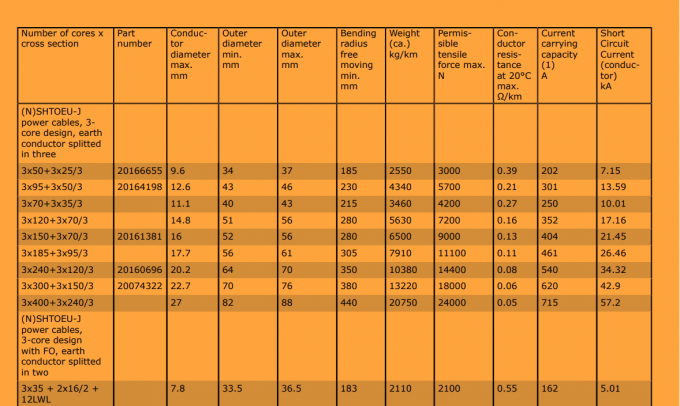

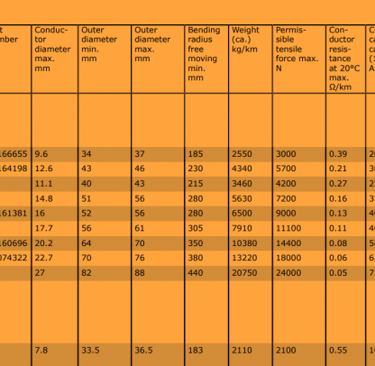

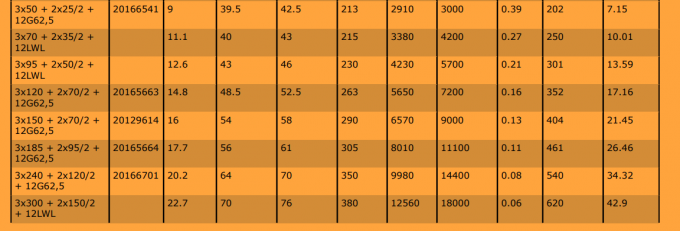

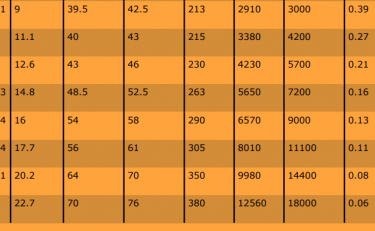

The TROMMELFLEX KSM-S (N) SHTOEU is available in various configurations to accommodate diverse crane power requirements. Common configurations include 3×70 + 2×35/2 arrangements, providing both main power conductors and auxiliary circuits within a single cable assembly. When specified with optical fibre integration, configurations such as 3×70 + 2×35/2 + 12×optical fibre provide comprehensive power and communication capabilities.

Cable diameter varies according to conductor configuration, typically ranging from 35mm to 55mm for standard configurations. Weight specifications are optimised to minimise reeling system loading whilst maintaining mechanical performance, with typical weights ranging from 3.5 to 8.5 kg per metre dependent upon configuration.

Ampacity ratings are provided based on standard installation conditions, with derating factors available for high-temperature environments or enclosed reeling systems. The cable's thermal characteristics accommodate both continuous duty and intermittent high-load applications typical in crane operations.

Compatibility with international reeling systems is ensured through adherence to standard dimensional tolerances and mechanical performance specifications. The cable interfaces effectively with both European and Asian-manufactured reeling equipment, providing flexibility for port operators with mixed equipment fleets.

Certifications & Compliance

The TROMMELFLEX KSM-S (N) SHTOEU maintains compliance with comprehensive international standards governing industrial cable applications. Primary certifications include DIN VDE 0295 for conductor specifications and DIN VDE 0207 for cable construction requirements, ensuring compatibility with German industrial standards widely adopted in port crane applications.

IEC 60228 compliance for conductor specifications provides international standardisation, whilst additional certifications address specific requirements for marine and industrial environments. The certified heavy-duty reeling cable meets flame retardancy requirements according to relevant international standards, ensuring safe operation in industrial environments.

RoHS compliance addresses environmental concerns increasingly important in port operations, whilst halogen-free construction options are available for applications with specific environmental or safety requirements. These features align with sustainability initiatives common in modern port operations whilst maintaining performance characteristics essential for reliable crane operation.

Quality assurance processes incorporate comprehensive testing protocols that verify both electrical and mechanical performance characteristics. Factory testing includes high-voltage testing, conductor resistance verification, and mechanical stress testing that ensures each cable assembly meets specified performance criteria before shipment.

Ordering and Support

Standard minimum order quantities commence at 1000 metres, reflecting the substantial cable lengths typically required for crane installations. Lead times generally range from 15-30 working days, though expedited delivery options are available for urgent project requirements. Custom configurations incorporating specific conductor arrangements or fibre optic specifications can be accommodated with appropriate lead time extensions.

Engineering support services include technical consultation for project-specific applications, ensuring optimal cable selection for particular crane systems and operating environments. This support extends to compatibility verification with existing reeling equipment and integration planning for retrofit applications.

Sample cables are available for evaluation purposes, allowing end users to verify performance characteristics and compatibility before committing to full-scale orders. Technical documentation including detailed specifications, installation guidelines, and maintenance recommendations accompanies all shipments.

Project-specific engineering services accommodate unique requirements such as extended lengths, special conductor configurations, or integration with proprietary control systems. These services ensure optimal performance whilst maintaining compliance with relevant standards and certifications.

Frequently Asked Questions

Q: What makes the TROMMELFLEX KSM-S (N) SHTOEU suitable for continuous reeling applications?

A: The cable incorporates several design elements specifically for reeling applications, including ultra-flexible Class 5 stranded conductors, specialised rubber compounds that resist fatigue, and anti-torsion reinforcement. Laboratory testing confirms performance through millions of flex cycles without degradation.

Q: Can this cable operate in extreme temperature conditions typical of Australian ports?

A: Yes, the cable is designed for operation from -40°C to +90°C continuous operation, with short-circuit capability up to 250°C. The EPR insulation and specialised rubber compounds maintain performance across this temperature range, making it suitable for Australian coastal environments.

Q: What maintenance is required for optimal cable performance?

A: Regular visual inspection for mechanical damage, periodic electrical testing, and proper reeling system maintenance are recommended. The cable's robust construction typically extends maintenance intervals 200-300% compared to conventional cables, reducing operational costs.

Q: Is the cable compatible with existing European and Asian reeling equipment?

A: Yes, the cable adheres to international dimensional and performance standards, ensuring compatibility with reeling equipment from major manufacturers. Technical support is available to verify compatibility with specific equipment configurations.

Conclusion

The TROMMELFLEX KSM-S (N) SHTOEU represents the pinnacle of power reeling cable technology for E-GTG crane applications, combining decades of German engineering expertise with advanced materials science to deliver unmatched performance in demanding port environments. This premium cable solution addresses the critical challenges facing modern container terminals, providing reliable power transmission capability that port operators can depend upon for consistent crane performance.

The cable's sophisticated construction, incorporating ultra-flexible conductors, advanced insulation systems, and heavy-duty protective sheaths, ensures exceptional service life even under the most demanding operating conditions. Optional fibre optic integration provides future-ready communication capabilities essential for modern automated terminal operations, whilst maintaining the mechanical performance characteristics required for continuous reeling applications.

For port operators, terminal developers, and crane manufacturers seeking a reliable, long-term cable solution for electric RTG crane systems, the TROMMELFLEX KSM-S (N) SHTOEU offers compelling advantages in durability, flexibility, and overall performance. The combination of reduced maintenance requirements, extended service life, and proven reliability makes this cable an intelligent investment for any serious port operation.

Contact our technical specialists today for comprehensive datasheets, sample cables, and project-specific quotations. Our engineering team stands ready to provide the technical support and customisation services necessary to ensure optimal cable performance in your specific application environment.
