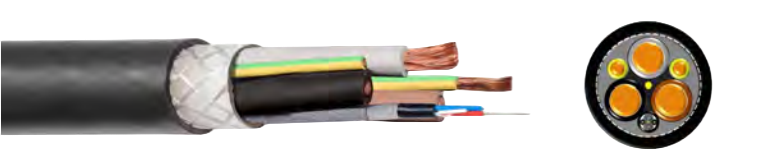

(KSM-S) (N)SHTOEU Low Voltage Reeling Cable for E-RTGs
Flexible Power and Fiber Optic Cable for Demanding Reeling on Electrified Rubber Tyred Gantry Cranes
$15.00
Application
Flexible low voltage reeling cable for power supply (also with integrated fiber optics), suitable for application under high mechanical stresses. The main application is reeling operation on ERTG's (Electrified Rubber Tyred Gantry cranes) .
Global data
Type designation (N)SHTOEU-J/-O
Standard Based on DIN VDE 0250-814
Electrical parameters
Rated voltage 0.6/1 kV (600/1000V)
Max . permissible operating voltage AC 0.7/1.2 kV
Max . permissible operating voltage DC 0.9/1.8 kV
AC Test Voltage 4 kV (5 Min.)
Data transmission Fibre-optic element for trouble free data transmission
Current Carrying Capacity description Acc. to DIN VDE 0298-4
Chemical parameters
Resistance to fire Acc. to IEC 60332-1 (EN 50265-2-1)
Resistance to oil Acc. to EN 60811-404
- ASTM No. 2: 24h at 100 °C
Thermal parameters
Max . permissible temperature at conductor 90 °C Max . short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -40 °C ; max +80 °C Ambient temperature in fully flexible operation min -40 °C ; max +80 °C
Mechanical parameters
Max. tensile load on the conductor 20 N/mm²
Torsional stress ± 50 °/m
Min. bending radius Acc. to DIN VDE 0298 part 3
Min. distance with S-type directional changes 20 X D
Travel speed - Reeling operation: up to 180m/min
