TROMMELFLEX-M-PUR BRAIDED D2X11Y Flexible Low-Voltage Reeling Cable for Underground Mining and Tunnelling

Introduction

Underground mining and tunneling operations demand power cables that can withstand extreme mechanical stress, abrasive conditions, and continuous dynamic loading. The TROMMELFLEX-M-PUR BRAIDED D2X11Y represents a specialized solution engineered specifically for these challenging environments. This flexible low voltage reeling cable combines advanced materials technology with robust construction to deliver reliable power transmission for mobile equipment in the most demanding underground applications.

The role of flexible reeling cables in underground mining and tunneling cannot be overstated. These cables serve as the lifeline for critical equipment including drilling rigs, Load-Haul-Dump (LHD) loaders, conveyor systems, and tunnel boring machines. Unlike fixed installation cables, reeling cables must endure constant flexing, stretching, and compression as equipment moves through confined underground spaces. The TROMMELFLEX-M-PUR BRAIDED D2X11Y addresses these unique challenges through its specialized design that prioritizes mechanical durability while maintaining electrical performance.

Underground mining reeling cable applications present several critical requirements that standard cables cannot meet. Equipment operators need power solutions that can handle rapid acceleration and deceleration, extreme bending cycles, and exposure to moisture, oils, and abrasive particulates. Traditional cable designs often fail prematurely under these conditions, leading to costly downtime and safety hazards. The TROMMELFLEX-M-PUR BRAIDED D2X11Y fills this gap by providing a robust, purpose-built solution that maintains performance integrity throughout extended service cycles.

Key Features

Braided Reinforcement for Enhanced Mechanical Strength

The braided construction of the TROMMELFLEX-M-PUR BRAIDED D2X11Y represents a significant advancement in cable engineering for dynamic applications. The internal braiding system provides crucial tensile strength support, distributing mechanical loads across the entire cable structure rather than concentrating stress at individual points. This braided reinforcement enables the cable to withstand tensile forces ranging from 1,875 N to 18,000 N, depending on conductor size, making it suitable for heavy-duty reeling operations where cables experience significant pulling forces.

The braiding material consists of high-strength synthetic fibers strategically positioned to resist both longitudinal and radial stresses. This construction allows the cable to maintain its structural integrity even under extreme torsional loads up to ±50°/m, far exceeding the capabilities of non-braided alternatives. The braided architecture also prevents conductor deformation during bending cycles, ensuring consistent electrical performance throughout the cable's operational life.

Optimized Dimensions and Low Weight for Improved Handling

Engineering optimization has resulted in a cable design that maximizes performance while minimizing physical bulk and weight. The TROMMELFLEX-M-PUR BRAIDED D2X11Y achieves reductions of up to 30% in overall diameter and 40% in weight compared to conventional mining cables of equivalent electrical capacity. This optimization translates to improved equipment mobility, reduced strain on reeling mechanisms, and enhanced operator safety through easier cable handling.

The compact design does not compromise electrical or mechanical performance. Instead, advanced materials and construction techniques allow for tighter component integration while maintaining necessary insulation thickness and protective barriers. This approach results in cables that are easier to transport, install, and manage in confined underground spaces where every centimeter of clearance matters.

Flame Retardant, Halogen-Free Polyurethane Outer Sheath

Safety considerations drive the selection of a flame retardant halogen-free polyurethane braided reeling cable for tunneling equipment outer sheath material. The polyurethane (PUR) compound meets stringent fire safety standards while eliminating the production of toxic halogenated gases during combustion. This feature is particularly critical in underground environments where ventilation is limited and emergency evacuation may be challenging.

The polyurethane sheath provides exceptional resistance to mechanical damage, including cuts, abrasion, and impact. Unlike rubber compounds that can become brittle at low temperatures or soft at elevated temperatures, the PUR formulation maintains consistent flexibility and protection across a wide temperature range from -30°C to +80°C during flexible operation. This temperature stability ensures reliable performance in diverse underground conditions, from freezing mine shafts to heated tunnel environments.

Resistance to Abrasion, Ozone, UV, Oils, and Chemicals

Underground operations expose cables to a hostile combination of environmental factors that rapidly degrade standard cable materials. The TROMMELFLEX-M-PUR BRAIDED D2X11Y incorporates specialized compound formulations that resist degradation from multiple sources simultaneously. The cable demonstrates excellent resistance to hydraulic fluids, lubricating oils, diesel fuel, and various chemical agents commonly encountered in mining operations.

Ozone resistance prevents the cable sheath from cracking or becoming brittle when exposed to electrical discharges or ozone-generating equipment. UV resistance protects the cable during storage and handling in areas with artificial lighting or when temporarily exposed to surface conditions. The abrasion resistance of the outer sheath extends cable life significantly in trailing applications where contact with rough surfaces, rock, or metal equipment is inevitable.

High Fatigue Resistance Under Repetitive Bending and Torsion

The dynamic load resistant braided cable D2X11Y construction addresses the primary failure mode of reeling cables: fatigue from repetitive mechanical stress. The cable design incorporates several features to enhance fatigue resistance, including optimized conductor stranding, flexible insulation compounds, and stress-relief elements that distribute mechanical loads effectively.

Laboratory testing demonstrates the cable's ability to withstand millions of bending cycles at minimum bend radii without conductor breakage or insulation failure. The torsional resistance capability of ±50°/m allows the cable to handle complex movement patterns typical of mobile mining equipment without developing stress concentrations that could lead to premature failure.

Broad Temperature Range Suitability

Temperature extremes in underground operations require cables that maintain performance across wide thermal ranges. The TROMMELFLEX-M-PUR BRAIDED D2X11Y operates reliably in ambient temperatures from -40°C to +80°C for fixed installations and -30°C to +80°C for flexible applications. This broad temperature capability accommodates diverse mining environments, from arctic surface operations to deep underground workings where geothermal heating increases ambient temperatures.

The temperature stability extends beyond simple survival to maintaining electrical and mechanical properties within specification limits. Conductor resistance remains stable across the temperature range, ensuring consistent power transmission. Insulation properties do not degrade at temperature extremes, maintaining electrical safety margins throughout the operating envelope.

Technical Specifications

Voltage Rating and Test Voltage Parameters

The TROMMELFLEX-M-PUR BRAIDED D2X11Y operates at a rated voltage of 0.6/1 kV (U0/U) with a maximum system voltage (Um) of 1.2 kV. The test voltage specification of 2.5 kV provides substantial safety margins above normal operating voltages, ensuring reliable performance even under electrical stress conditions. Control core testing at 2 kV verifies the integrity of auxiliary circuits used for equipment monitoring and control functions.

These voltage ratings align with standard low-voltage power distribution systems used in mobile mining equipment. The voltage capability supports direct connection to mine power distribution networks while providing adequate insulation for safety in wet or conductive environments common in underground operations.

Copper Conductor Design and XLPE Insulation

High-quality copper conductors utilize fine stranding (Class 5) to maximize flexibility while minimizing electrical resistance. The conductor construction employs multiple thin strands rather than fewer thick strands, providing superior bend fatigue resistance crucial for reeling applications. Conductor sizes range from 16 mm² to 240 mm², accommodating power requirements from small auxiliary equipment to large mobile machinery.

Cross-linked polyethylene (XLPE) insulation provides excellent electrical properties combined with mechanical durability. XLPE maintains superior insulation resistance compared to traditional compounds while offering enhanced thermal stability. The cross-linking process creates a polymer structure that resists deformation under mechanical stress, preventing insulation thinning that could compromise electrical safety during cable bending.

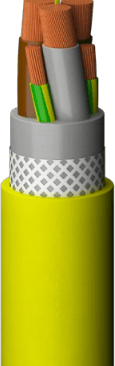

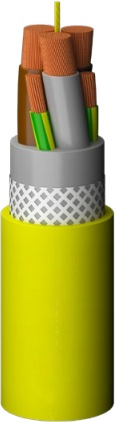

Braiding Materials and Construction Details

The internal braiding system utilizes high-strength aramid fibers positioned around a central support element. This construction distributes tensile loads throughout the cable structure while providing the flexibility necessary for reeling operations. The braiding pattern and density are optimized to balance mechanical strength with bend flexibility, ensuring the cable can handle both high tensile loads and tight bend radii.

Core arrangement follows engineering principles that minimize stress concentrations during bending. Main power conductors are laid up with split earth conductors positioned in cable interstices, creating a balanced geometry that prevents differential stress during flexing. Control cores, when present, are integrated into the overall design to maintain mechanical integrity while providing reliable signal transmission.

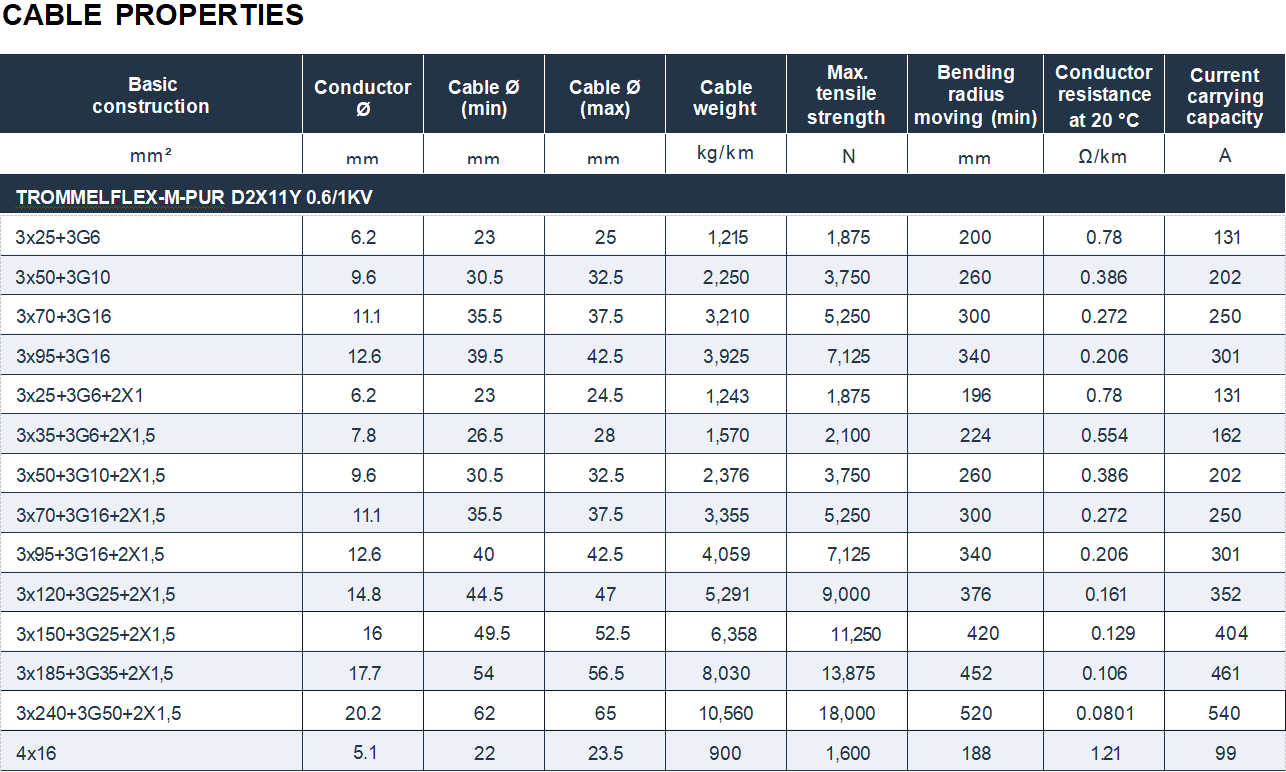

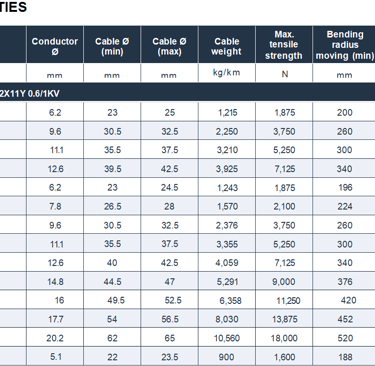

Cable Diameter, Weight Per Meter, and Tensile Strength

Physical dimensions vary with conductor size and configuration, with overall diameters ranging from approximately 23 mm for smaller conductors to 65 mm for the largest sizes. Weight ranges from 1,215 kg/km to 10,560 kg/km, representing significant reductions compared to non-optimized designs. These weight reductions translate directly to reduced stress on reeling equipment and improved handling characteristics.

Maximum tensile strength capabilities range from 1,875 N for smaller cables to 18,000 N for larger conductor sizes. These ratings provide substantial safety margins for typical reeling applications while accommodating emergency conditions where higher than normal loads might be encountered. The tensile strength specification of 25 N/mm² ensures adequate safety factors for normal operations.

Minimum Bending Radius for Reeling and Fixed Installation

Bending radius specifications reflect the cable's optimized design for dynamic applications. Fixed installation applications require a minimum bending radius of 4 times the cable diameter (4 × D), while reeling operations can accommodate 8 times the cable diameter (8 × D). These relatively tight bend radii enable use in confined underground spaces where larger radius requirements would be impractical.

The specified bend radii represent operational minimums that do not compromise cable life. Adherence to these specifications ensures millions of bend cycles without premature failure, providing the reliability essential for continuous mining operations where equipment downtime directly impacts productivity.

Current-Carrying Capacity and Conductor Resistance

Current-carrying capacity ratings range from 99 A for 16 mm² conductors to 540 A for 240 mm² conductors, providing substantial power transmission capability for mobile equipment. These ratings account for the thermal effects of dynamic operation, including heat generation from conductor flexing and reduced heat dissipation in reeling drum configurations.

Conductor resistance specifications meet international standards, with values ranging from 1.21 Ω/km for 16 mm² conductors to 0.0801 Ω/km for 240 mm² conductors at 20°C. Low resistance values minimize power losses during transmission while reducing heat generation that could affect cable life or create safety hazards in confined spaces.

Applications

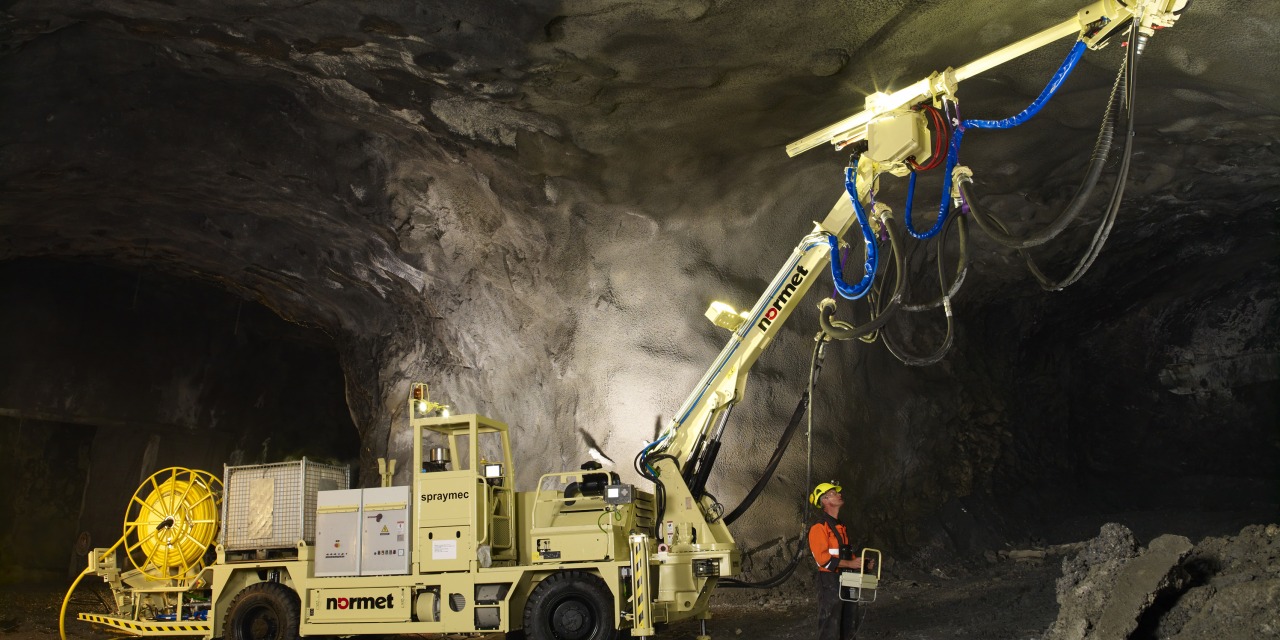

Power Supply for Drilling Rigs, LHD Loaders, and Conveyors

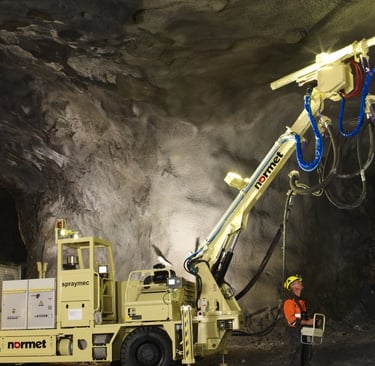

The primary applications of the TROMMELFLEX-M-PUR BRAIDED D2X11Y encompass the full spectrum of mobile mining equipment requiring reliable power connections. Drilling rigs benefit from the cable's ability to handle the rapid, high-force movements associated with drilling operations while maintaining consistent power delivery to drive motors, hydraulic pumps, and control systems. The cable's resistance to oil contamination and mechanical damage makes it ideal for the harsh operating environment around drilling equipment.

LHD loaders present particularly demanding cable requirements due to their continuous operation cycles involving loading, hauling, and dumping operations. These machines require cables that can handle frequent acceleration and deceleration while maintaining power to propulsion motors, hydraulic systems, and lighting. The TROMMELFLEX-M-PUR BRAIDED D2X11Y meets these demands through its high fatigue resistance and ability to operate at maximum reeling speeds up to 100 m/min.

Conveyor systems in underground mining operations rely on reeling cables for mobile section power and control. The cable's ability to operate in dusty, abrasive environments while providing reliable power transmission makes it suitable for conveyor applications where downtime can halt entire production sequences. The flame retardant, halogen-free construction enhances safety in conveyor tunnels where fire risks must be minimized.

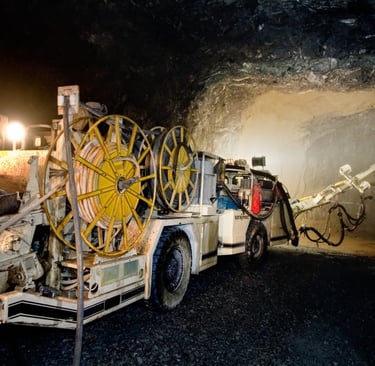

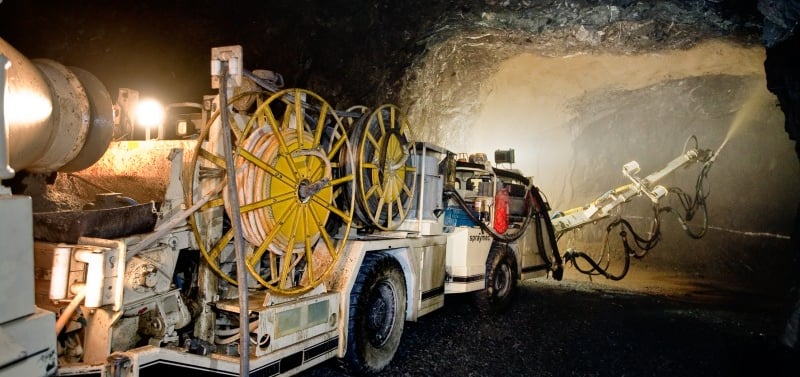

Mono-Spiral and Cylindrical Reeling Applications

Reeling drum configurations significantly impact cable performance and longevity. The TROMMELFLEX-M-PUR BRAIDED D2X11Y is specifically engineered for both mono-spiral and cylindrical reeling systems commonly used in mining operations. Mono-spiral reels, which wind cable in a single layer, subject cables to uniform bending stresses that the optimized construction handles effectively.

Cylindrical reeling systems, where cable layers build up on the drum, create more complex stress patterns including inter-layer pressure and varying bend radii. The braided reinforcement and optimized geometry of the TROMMELFLEX-M-PUR BRAIDED D2X11Y distribute these stresses effectively, preventing damage that could occur with less robust cable designs. The compact cable dimensions reduce the buildup rate on cylindrical reels, allowing for longer cable lengths on standard drum sizes.

Trailing Operation in Abrasive, Wet, and Chemically Aggressive Environments

Underground mining environments present combinations of environmental challenges that few cables can handle effectively. Wet conditions from groundwater seepage, washing operations, or humidity create electrical hazards and promote corrosion if cable construction is inadequate. The TROMMELFLEX-M-PUR BRAIDED D2X11Y addresses moisture challenges through its water-resistant construction capable of operating in up to 10 meters of water depth.

Abrasive conditions from rock dust, metal surfaces, and mechanical contact during equipment operation require exceptional sheath durability. The specialized polyurethane compound provides superior abrasion resistance compared to conventional rubber sheaths, significantly extending cable life in trailing applications where ground contact is unavoidable.

Chemical exposure from lubricants, hydraulic fluids, cleaning solvents, and natural groundwater chemistry demands comprehensive chemical resistance. The cable's formulation resists degradation from this wide range of chemical exposures, maintaining integrity and safety throughout extended service periods.

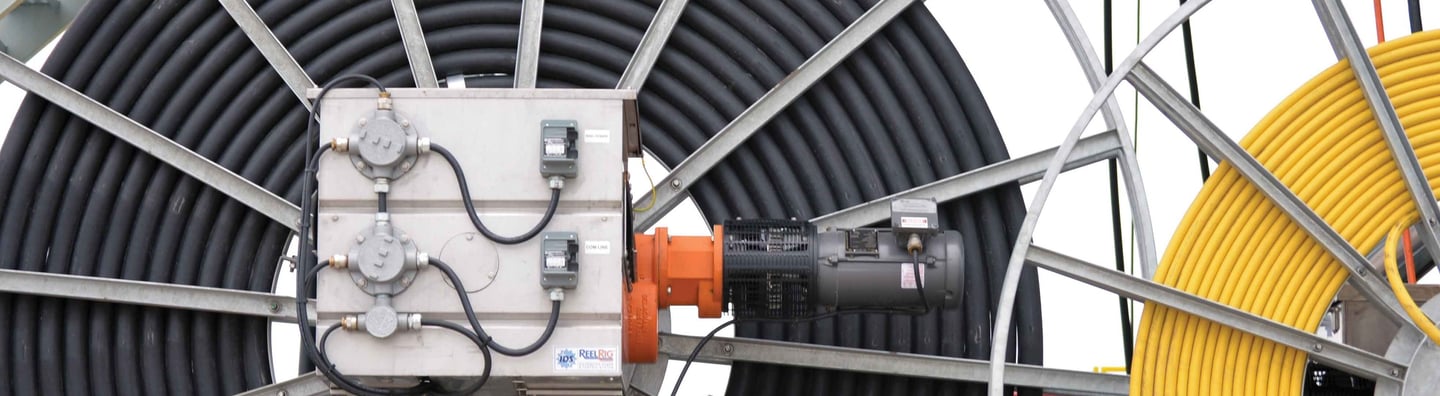

Integration with Reeling Drums and Cable Winches

Proper integration with reeling equipment is crucial for optimal cable performance and longevity. The TROMMELFLEX-M-PUR BRAIDED D2X11Y design considerations include compatibility with standard mining equipment drum specifications, connection hardware, and operational practices. The cable's tensile strength ratings accommodate the pulling forces generated by industrial winches and reeling systems.

The optimized weight and flexibility characteristics reduce stress on reeling equipment mechanical components, extending equipment service life while improving operational reliability. Proper drum sizing recommendations ensure that minimum bend radius specifications are maintained during normal operations, preventing cable damage from excessive bending stresses.

Performance Benefits

Superior Durability Reduces Maintenance and Downtime

The engineering focus on durability in the TROMMELFLEX-M-PUR BRAIDED D2X11Y design translates directly to reduced maintenance requirements and improved equipment availability. Traditional mining cables often require replacement after months of service due to mechanical failures, while the advanced construction of this specialized cable extends service life significantly. This durability improvement reduces the frequency of cable replacement operations, which can require equipment shutdown and create production delays.

Reduced maintenance extends beyond simple cable replacement to include decreased inspection requirements and lower inventory costs. The predictable service life allows for planned maintenance scheduling rather than reactive emergency repairs, improving overall operational efficiency and cost control. The reliability of the cable design reduces the need for backup power cables and emergency replacement inventory.

Enhanced Operator Safety with Flame Retardant, Halogen-Free Materials

Safety improvements from the flame retardant halogen-free polyurethane braided reeling cable for tunneling equipment construction provide measurable benefits in underground operations. The elimination of halogenated compounds prevents the generation of toxic gases during fire incidents, protecting personnel in confined underground spaces where evacuation options may be limited. This feature aligns with increasingly stringent safety regulations in mining operations worldwide.

The flame retardant properties reduce fire propagation risks associated with electrical faults or external ignition sources. In underground environments where fire suppression may be challenging, preventing fire spread is crucial for personnel safety and equipment protection. The cable's ability to self-extinguish and resist flame propagation provides valuable time for emergency response procedures.

Consistent Performance Under High Mechanical Stress

Mechanical stress resistance ensures that electrical performance remains stable throughout the cable's service life, even under extreme operating conditions. Unlike cables that experience gradual performance degradation as mechanical wear accumulates, the TROMMELFLEX-M-PUR BRAIDED D2X11Y maintains consistent electrical characteristics throughout millions of flex cycles. This consistency is crucial for equipment that depends on stable power delivery for proper operation.

The ability to maintain performance under high mechanical stress extends to electrical safety characteristics. Insulation resistance and voltage withstand capabilities do not degrade significantly with mechanical aging, ensuring that safety margins remain adequate throughout the cable's service life. This reliability is particularly important for equipment operating in wet or conductive underground environments.

Extended Service Life in Harsh Underground Conditions

The combination of advanced materials and optimized construction results in extended service life that significantly reduces total cost of ownership. While initial cable costs may be higher than basic alternatives, the extended service life and reduced maintenance requirements provide substantial economic benefits over the cable's lifetime. Cost analysis typically shows favorable returns within the first year of operation in demanding underground applications.

Extended service life also provides operational benefits beyond cost savings. Longer intervals between cable replacements reduce equipment downtime and maintenance scheduling complexity. The predictable service life allows for better planning of maintenance resources and spare parts inventory, improving overall operational efficiency.

Installation and Handling Guidelines

Recommended Reeling Speeds and Drum Configurations

Optimal performance of the TROMMELFLEX-M-PUR BRAIDED D2X11Y requires adherence to recommended operational parameters. Maximum reeling speeds should not exceed 100 m/min for braided configurations to prevent excessive dynamic stresses that could accumulate over time. While the cable can handle higher instantaneous speeds, sustained operation at maximum rates should be limited to prevent accelerated wear.

Drum configuration recommendations include minimum drum diameters that maintain the specified minimum bend radius during reeling operations. Drum groove specifications should accommodate the cable diameter without excessive compression or spacing that allows cable movement during operation. Proper drum alignment prevents side loading that could create uneven wear patterns or stress concentrations.

Proper Storage, Coiling, and Uncoiling Practices

Proper handling procedures are essential for maintaining cable performance and preventing damage during storage and installation. Storage recommendations include maintaining minimum bend radii even during temporary coiling, avoiding exposure to extreme temperatures during storage, and protecting cable ends from moisture ingress. Coiling practices should follow the cable's natural lay to prevent twist accumulation that could affect performance.

Uncoiling procedures should avoid rapid pulling that could create dynamic loads exceeding the cable's specifications. Proper support during uncoiling prevents ground contact that could damage the cable sheath. Installation procedures should include inspection for damage that might have occurred during transport or handling before putting the cable into service.

Inspection Routines and Maintenance Tips

Regular inspection routines help identify potential issues before they result in cable failure. Visual inspections should focus on sheath integrity, looking for cuts, abrasion, or deformation that could compromise protection. Electrical testing should verify insulation resistance and continuity at regular intervals appropriate to the application severity and operating conditions.

Maintenance tips include keeping cable ends properly sealed when not in use, avoiding chemical contact with incompatible substances, and maintaining proper storage conditions for spare cables. Documentation of inspection results helps establish baseline performance and identify trends that might indicate developing problems requiring attention.

Frequently Asked Questions

Q: What makes the TROMMELFLEX-M-PUR BRAIDED D2X11Y suitable for harsh underground mining conditions?

A: The cable combines several key features that address underground mining challenges: a flame retardant, halogen-free polyurethane outer sheath resists abrasion and chemical exposure; braided reinforcement provides exceptional tensile strength up to 18,000 N; optimized construction maintains flexibility in temperatures from -30°C to +80°C; and advanced compounds resist oil, moisture, and mechanical damage common in mining environments.

Q: How does the braided construction improve cable performance in reeling applications?

A: The internal braiding system distributes mechanical loads throughout the cable structure rather than concentrating stress at individual points. This construction enables the cable to withstand torsional stress up to ±50°/m and provides superior fatigue resistance during millions of bending cycles. The braiding also prevents conductor deformation during flexing, maintaining consistent electrical performance throughout the cable's operational life.

Q: What are the maximum reeling speeds and operational capacities?

A: The TROMMELFLEX-M-PUR BRAIDED D2X11Y can operate at maximum reeling speeds up to 100 m/min for braided configurations. Current-carrying capacity ranges from 99 A for 16 mm² conductors to 540 A for 240 mm² conductors. These specifications support demanding applications while maintaining safety margins for continuous underground operations.

Q: How does the halogen-free construction benefit underground safety?

A: The halogen-free polyurethane compound eliminates the production of toxic halogenated gases during fire incidents, crucial for personnel safety in confined underground spaces with limited ventilation. Combined with flame retardant properties that resist fire propagation, this construction provides valuable time for emergency response while meeting increasingly stringent mining safety regulations worldwide.

Q: What installation considerations are critical for optimal performance?

A: Key installation factors include maintaining minimum bend radii of 8 times cable diameter during reeling operations, using properly sized drums that prevent compression or excessive spacing, ensuring proper drum alignment to prevent side loading, and following recommended reeling speeds up to 100 m/min. Proper storage and handling procedures prevent damage before installation, while regular inspection routines identify potential issues before failure occurs.

Conclusion

The TROMMELFLEX-M-PUR BRAIDED D2X11Y represents a significant advancement in flexible low voltage reeling cable technology for underground mining and tunneling applications. Through its combination of braided reinforcement, optimized materials, and specialized construction, this cable addresses the unique challenges of dynamic underground operations while providing enhanced safety, reliability, and operational efficiency.

The comprehensive feature set of this underground mining reeling cable delivers measurable benefits across multiple operational areas. Superior mechanical durability reduces maintenance costs and equipment downtime, while enhanced safety characteristics protect personnel in challenging underground environments. The extended service life and consistent performance under extreme conditions provide favorable economics compared to conventional cable alternatives.

For mining and tunneling operations requiring reliable power transmission to mobile equipment, the TROMMELFLEX-M-PUR BRAIDED D2X11Y offers a proven solution that meets the demanding requirements of modern underground operations. The cable's ability to handle high mechanical stress, resist environmental degradation, and maintain performance throughout millions of flex cycles makes it an optimal choice for dynamic load applications where conventional cables fail to provide adequate service life and reliability.
