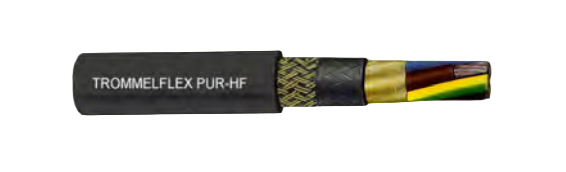

PUR-HF D12Y11YU11Y Low Voltage Reeling Cable
Durable PUR-Sheathed Cable for Heavy Mechanical Stresses
$15.00
Application
Flexible low voltage reeling cable for application under high mechanical stresses.
Global data
Type designation：TROMMELFLEX PUR-HF D12Y11YU11Y-J/O
Design features
Conductor Plain copper, flexible class 5 acc. to DIN EN 60228 / DIN VDE 0295
Insulation Halogen free compound, based on polyester
Core identification Up to 5 cores: colored in accordance with DIN VDE 0293-308
From 6 cores: natural color with black numbers
Core arrangement Central textile carrier unit; cores twisted with short length of lay
Inner sheath Polyurethan, halogen free, flame retardant
Reinforcement Open braiding of support
Outer sheath Polyurethane, halogen free, flame retardant, opaque;
Colour: black
Electrical parameters
Rated voltage 0.6/1 kV (600/1000V)
Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC 0.9/1.8 kV
AC Test Voltage 4 kV (5 Min.)
Current Carrying Capacity description Acc. to DIN VDE 0298-4
Chemical parameters
Resistance to fire Similar to IEC 60332-1
Water resistance The cables are suitable for permanent use in water (no drinking water) up to 50 meter diving depth.
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -50 °C ; max +80 °C Ambient temperature in fully flexible operation min -40 °C ; max +80 °C
Mechanical parameters
Max. tensile load on the conductor 25 N/mm²
Torsional stress ± 50 °/m
Min. bending radius 6 x D (Proved by flexing tests acc. to HD 22.2 part 3.1)
Travel speed - Reeling operation: no restriction (for speed beyond 180 m/min please consult the
manufacturer);
- Festoon system: up to 180 m/min.
