TUNNELFLEX-R-PUR HF Underground Reeling Cable – 0.6/1 kV
Reinforced PUR sheath with synthetic mesh for mobile equipment in harsh mining and tunneling
$10.00

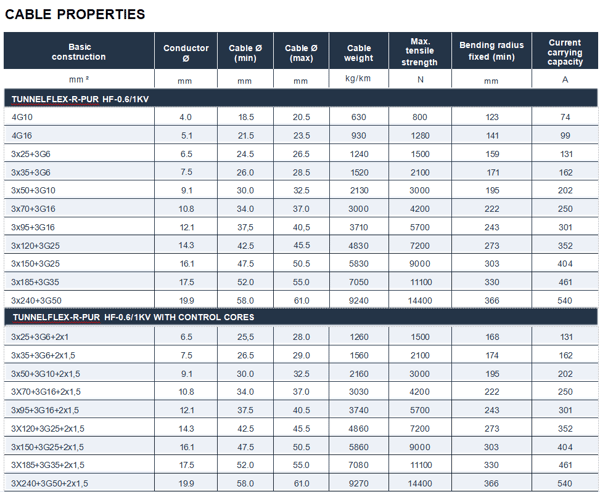

Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage | U0/U (Um): 0.6/1 (1.2) kV |
Maximum Operating Voltage | 1.2 kV |
Test Voltage | 3.5 kV |
Maximum Conductor Temperature | 90 °C |
Max Conductor Temperature at Short Circuit | 250 °C |
Ambient Temperature Range (Fixed) | –40 °C to +80 °C |
Ambient Temperature Range (Flexible) | –30 °C to +80 °C |
Conductor | Plain flexible copper, class 5 |
Insulation | XLPE special compound (Brown, Black, Grey) |
Core Arrangement | Phase cores laid up with earth cores in interstices |

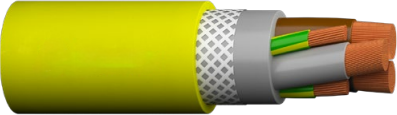

Inner Sheath and Outer Sheath | Halogen-free flame retardant (HFFR) thermoplastic polyurethane compound with synthetic mesh reinforcement |
Mechanical Parameters | Travel speed: up to 120 m/min |
Bending Radius | 6 × cable diameter (fixed installation); 10 × diameter (on drums) |
TUNNELFLEX-R-PUR HF is a flexible low voltage reeling cable designed to provide reliable power supply to mobile equipment operating under high mechanical stress in mining and tunneling environments. Equipped with anti-twisting protection, it accommodates dynamic multi-plane movements and supports a maximum travel speed of 120 m/min. Featuring a halogen-free, flame retardant thermoplastic polyurethane sheath reinforced with a synthetic mesh, the cable offers excellent resistance to abrasion, tears, oils, chemicals, and UV radiation, ensuring durability and safety in harsh underground conditions.
Standards and Certifications
DIN EN 60228/IEC 60228/VDE 0295
DIN VDE 0298-300
IEC 60754-1
DIN EN 60332-1-2/IEC 60332-1-2
Chemical and Environmental Resistance
Halogen-free and flame retardant
Abrasion, tear, oil, chemical, UV resistant
Product Features
Anti-twisting protection suitable for multi-plane dynamic cable movements
High mechanical and thermal resistance
Flexible and robust copper conductors
Flame retardant and halogen-free polyurethane sheath with synthetic mesh reinforcement
Supports high-speed reeling operations
Application Areas
Suitable for power supply to underground mining and tunneling mobile equipment requiring high mechanical strength and anti-twist protection.
Installation and Maintenance
Install per VDE 0298-3 bending radius recommendations with routine inspections advised for dynamic applications.
Customization Services
Available with variable conductor sizes, optional control cores, and tailored lengths.
