Type 1 Mining Cable – AS/NZS 1972 Flexible Screened Low Voltage Cable
0.6/1 kV PVC Insulated and Screened Cable for Mobile Mining Equipment and Electrical Interconnection
$10.00
Technical Specifications
Parameter | Description |
|---|---|

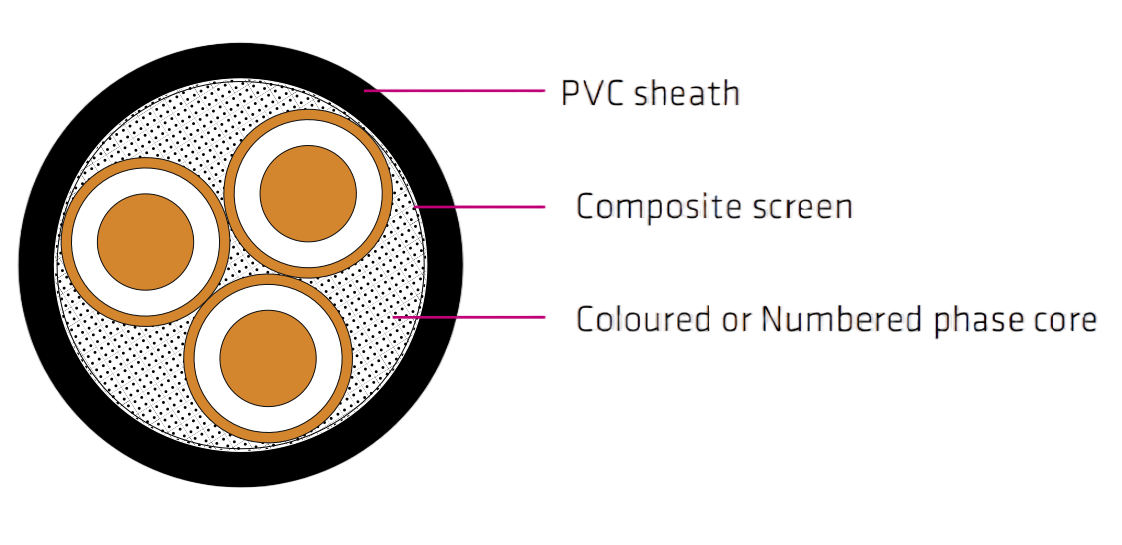

Cable Type | PVC Insulated, Screened, and PVC Sheathed Cable |
Applicable Standards | AS/NZS 1972 |
Rated Voltage | 0.6/1 kV |
Conductor Material | Tinned annealed copper |
Insulation | Heat resistant V-90 PVC |
Screen | Composite braid of tinned copper wire and polyester yarn; cables can be individually or collectively screened |
Outer Sheath | Heat resistant 5V-90 PVC |
Maximum Operating Temperature | +90 °C |
Minimum Operating Temperature | 0 °C |
Flexibility | Flexible |
Chemical Resistance | Very good — suitable for frequent chemical exposure |
Mechanical Impact Resistance | Light |
Water Resistance | Suitable for water splashes |
UV and Weather Resistance | Very good — suitable for direct solar radiation and outdoor exposure |

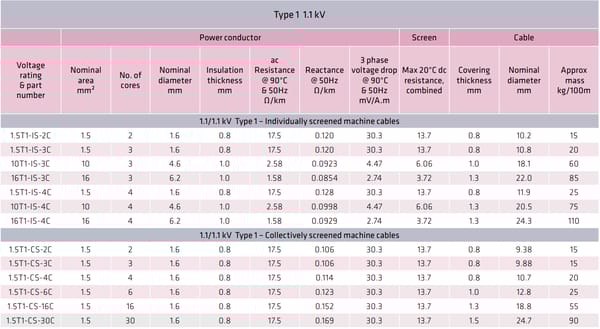

Physical & electrical characteristics

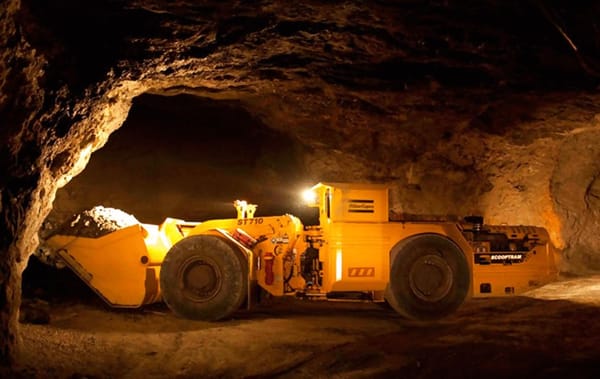

Type 1 cable is designed specifically for wiring mobile mining equipment such as continuous miners, shuttle cars, road headers, and personnel transports. Rated at 0.6/1 kV, these cables are intended for interconnection of equipment including control boxes and motors. Type 1 cables require additional mechanical protection when installed in external, non-protected locations. For currents exceeding 20 amps, the cables are electrically symmetrical, ensuring balanced electrical performance. The cable features PVC insulation, screening, and sheath, providing flexibility and chemical resistance suitable for mining environments.
Product Features
Designed for Mobile Mining Equipment: Ideal for wiring continuous miners, shuttle cars, road headers, and personnel transports.
Flexible and Durable: PVC insulation and sheath with composite copper-polyester braid screening provide flexibility, mechanical protection, and good chemical resistance.
Screening Options: Cables can be individually or collectively screened based on application needs.
Electrical Symmetry: Cables rated above 20 amps are electrically symmetrical to balance electrical characteristics.
Additional Protection Required: For external, non-protected installations, supplementary mechanical protection is necessary.
No Fire Rating: This cable does not possess specific fire performance ratings.
Application Areas
Used primarily for the interconnection of mobile mining equipment such as control boxes, motors, and other machinery wiring within ducts or protected environments.
. Quality Certifications
AS/NZS 1972
Installation and Maintenance
Suitable for installation within ducts or machinery. Additional mechanical protection is required for external or exposed installations. Routine inspections recommended to maintain cable condition.
Customization Services
Available with tailored core configurations and screening options to meet specific equipment requirements.
