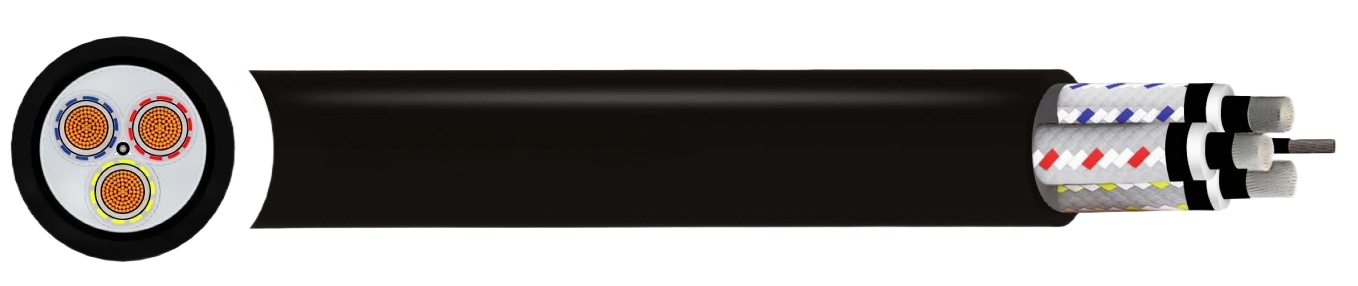

Type 209 Mining Equipment Cable
Flexible copper screened solution for trailing applications and handheld tools
$30.00
APPLICATION For use as fIexibIe feeder cabIe to machinery. More suitabIe as a traiIing cabIe. SmaIIer sizes used for driIIs, heId hand tooIs and equipment. Other industriaI appIications. |

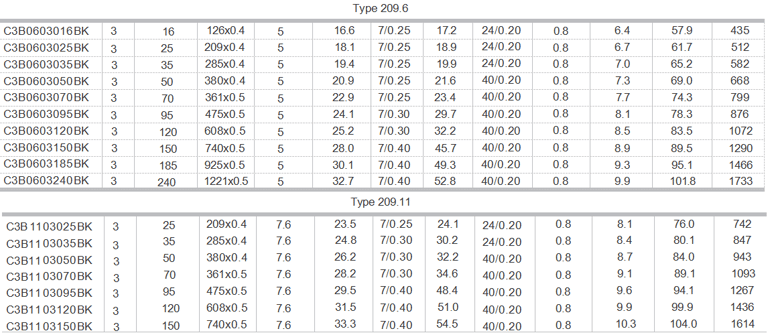

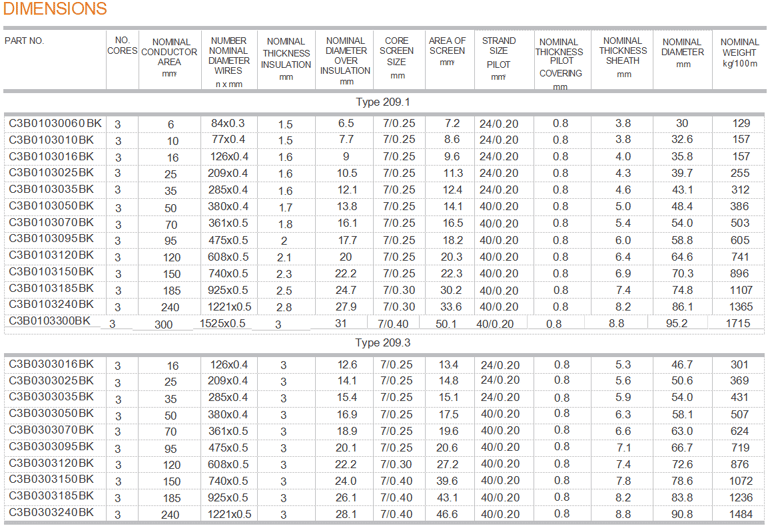

CHARACTERISTICS Voltage Rating Type 209.1 – 1.1kV Type 209.3 – 3.3kV Type 209.6 – 6.6kV Type 209.11 – 11kV Temperature Rating –25℃ to +90℃ |
CONSTRUCTION
Conductor
Tinned anneaIed copper wires
Separator/Screen
1.1kV: Paper separator
Other voItages semi–conductive thermosetting compound
Insulation
EPR (EthyIene PropyIene Rubber) type R–EP–90
Insulation Screen
1.1kV: Synthetic tape
From 3.3kV: Semi–conductive thermosetting compound
Screen
Tinned copper/poIyamide braid
Central Pilot Core
EPR covered fIexibIe stranded Tinned Copper
Cable Assembly
Three screened power Iaid up with right hand direction on cradIe separator with centraI piIot core
Cradle Separator
Semi–conductive thermosetting compound
Sheath
PCP (PoIychIoroprene) thermosetting compound HD–85–PCP – extra heavy duty, oiI resistance and fIame retardant
Sheath Colour
● BIack
STANDARDS
AS/NZS 1802:2003, AS/NZS 1125:2001, Water resistant
FIame retardant,
UV, sunIight, ozone and oiI resistant
