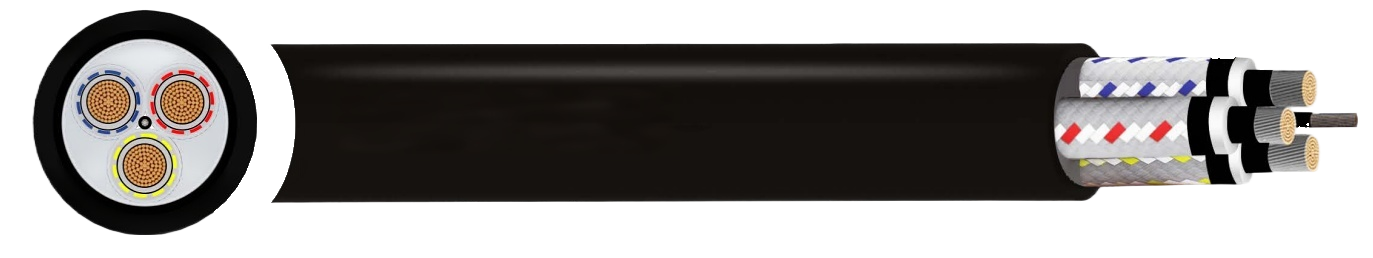

Type 210 Flexible Rubber Mining Cable
Specialized cable for handheld boring machines and drills in mining operations
$15.00
APPLICATION
Type 210 cables are mainly used for hand-held boring machines and drills in the mining industry.
CHARACTERISTICS
Voltage Rating
1.1kV
STANDARDS
AS/NZS 1802:2003, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1
CONSTRUCTION
Conductor
Flexible stranded tinned annealed copper
Conductor Screen
Paper Separator
Insulation
EPR (Ethylene Propylene Rubber)
Insulation Screen
Semiconductive elastomer
Composite Screen
Tinned annealed copper braiding interwove with polyester yarn
Pilot Core
EPR covered flexible stranded tinned Copper
Cradle Separator
Semi-conductive thermosetting compound
Central Extensible Pilot
EPR (Ethylene Propylene Rubber) insulated stranded tinned copper
Sheath
Heavy duty PCP (Polychloroprene)
(CPE/CSP sheath can be offered upon request)
Sheath Colour
● Black
