Type 245SF Mining Cable – AS/NZS 1802 Heavy-Duty Flexible Cable for Longwall Shearer and Trailing Applications

Introduction

The Type 245SF mining cable represents a pinnacle of engineering excellence in underground coal mining applications, specifically designed to meet the demanding requirements of modern longwall mining operations. As mining operations continue to evolve with increasingly sophisticated machinery and tighter operational constraints, the need for ultra-flexible, high-performance electrical cables has never been more critical.

Compliance with AS/NZS 1802 standards ensures that the Type 245SF cable meets the stringent safety and performance requirements mandated for underground coal mining operations in Australia and New Zealand. This standard governs the construction, testing, and performance characteristics of electrical cables used in potentially explosive mining environments, making compliance not just a regulatory requirement but a fundamental safety necessity.

The Type 245SF cable has been engineered primarily for longwall shearer cable chains and trailing applications where extreme flexibility is paramount. These applications subject cables to continuous flexing, tight bending radii, and harsh environmental conditions that would quickly destroy conventional industrial cables. The cable's unique construction incorporates semi-conductive screened power cores, multiple earth conductors, and dedicated pilot conductors to support modern machine monitoring systems that are essential for optimising mining productivity and maintaining operational safety.

In underground mining environments, equipment downtime translates directly to significant production losses and safety risks. The Type 245SF cable addresses these challenges through its robust construction and exceptional flexibility, ensuring reliable power transmission and control signal integrity even under the most demanding operational conditions.

Technical Specifications

The Type 245SF mining cable is engineered to operate within a voltage range of 1.1 to 3.3 kV, making it suitable for medium-voltage power distribution applications commonly found in underground mining operations. This voltage rating provides the optimal balance between power transmission efficiency and safety considerations in confined underground environments.

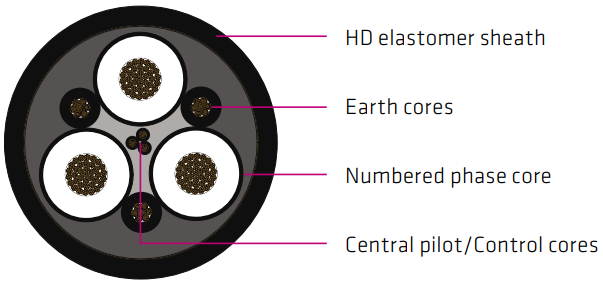

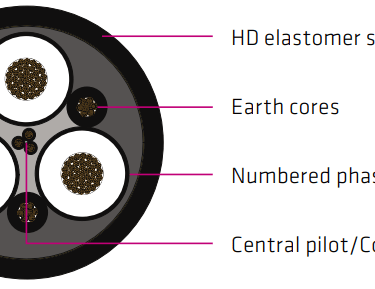

The cable's core configuration represents a sophisticated approach to underground mining power distribution. Each cable incorporates semi-conductive screened power cores that provide excellent electrical performance while maintaining the flexibility required for dynamic applications. The inclusion of three dedicated earth cores ensures superior earthing performance, which is critical for personnel safety and equipment protection in underground mining environments where earth fault protection is paramount.

Additionally, the cable features three extensible pilot conductors specifically designed to support modern machine monitoring and control systems. These pilot conductors enable real-time monitoring of equipment performance, allowing operators to optimise mining operations and detect potential issues before they result in costly breakdowns or safety incidents.

The conductor material utilises tinned copper, chosen for its excellent electrical conductivity, corrosion resistance, and mechanical properties. Tinned copper provides superior protection against oxidation and chemical attack in the harsh underground mining environment, ensuring long-term reliability and consistent electrical performance throughout the cable's operational life.

Insulation is achieved through EPR (Ethylene Propylene Rubber) designated as R-EP-90, providing excellent electrical insulation properties and thermal performance. The insulation incorporates printed core numbers for easy identification during installation and maintenance operations, reducing the risk of connection errors that could compromise safety or equipment performance.

The semi-conductive elastomer screen provides effective electromagnetic shielding while maintaining the flexibility required for dynamic applications. This screening system ensures consistent electrical performance and reduces the risk of electromagnetic interference affecting sensitive control and monitoring systems.

The cable's outer sheath utilises heavy-duty HD-85-PCP (Polychloroprene) construction with open weave reinforcement, providing exceptional mechanical protection while maintaining the flexibility required for cable chain applications. This sheath construction offers superior resistance to cuts, abrasions, and impact damage that are common in underground mining environments.

Key Features & Benefits

The Type 245SF mining cable delivers maximum flexibility specifically engineered for the tight bending radii experienced in cable chains used on longwall shearers. This exceptional flexibility is achieved through careful selection of materials and construction techniques that maintain electrical and mechanical integrity even when subjected to continuous flexing cycles that would quickly fatigue conventional cables.

The inclusion of additional pilot conductors represents a significant advancement in mining cable design, enabling support for modern machine monitoring systems that are becoming increasingly important in contemporary mining operations. These monitoring systems provide real-time data on equipment performance, allowing operators to optimise cutting parameters, monitor equipment health, and implement predictive maintenance strategies that reduce downtime and extend equipment life.

Heavy-duty construction throughout the cable design provides exceptional resistance to mechanical impact, which is inevitable in underground mining environments where equipment operates in confined spaces with limited clearance. The cable's construction incorporates multiple layers of protection, ensuring that mechanical damage to the outer sheath does not compromise the electrical integrity of the power and control conductors.

Environmental resistance capabilities are comprehensive, including excellent chemical resistance to the various substances encountered in underground mining operations, UV resistance for areas where artificial lighting creates UV exposure, and water resistance suitable for immersion and temporary coverage scenarios. This environmental protection ensures reliable operation in the challenging conditions typical of underground coal mining operations.

Fire retardant properties provide enhanced safety characteristics critical in underground mining environments where fire risk must be minimised. The cable's materials and construction techniques ensure that in the unlikely event of exposure to fire or excessive heat, the cable will not contribute to fire propagation, providing additional time for emergency response procedures.

Application Areas

Underground coal mines with moving machinery represent the primary application environment for Type 245SF cables. These operations require power distribution systems that can accommodate the continuous movement of heavy mining equipment while maintaining reliable electrical connections. The cable's flexibility and robust construction make it ideally suited for these demanding applications where conventional cables would quickly fail.

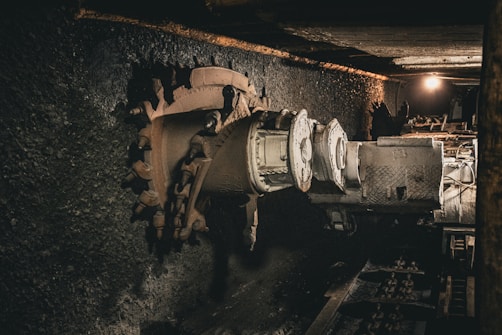

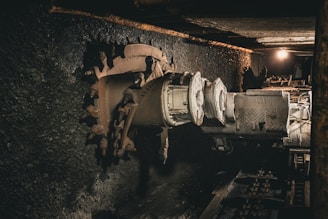

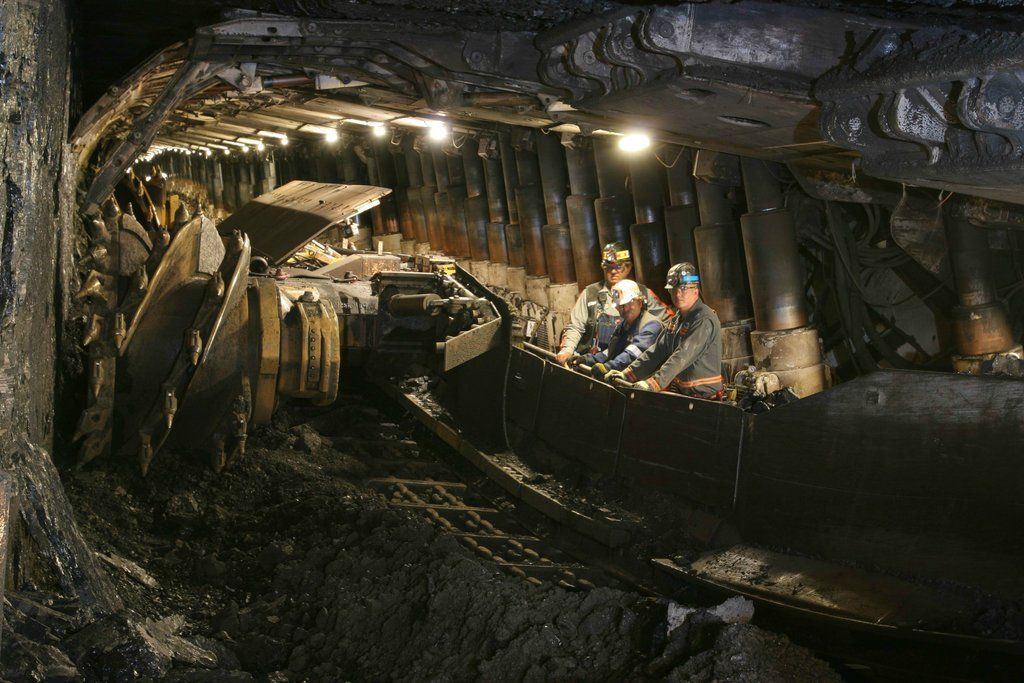

Longwall shearer equipment requiring trailing cables presents particular challenges due to the continuous back-and-forth movement of the shearer along the coal face. The Type 245SF cable's ultra-flexible construction and fatigue resistance ensure reliable power delivery throughout the extended cutting cycles typical of modern longwall operations, minimising the risk of cable failure that could shut down the entire mining operation.

Mobile mining equipment operating in space-limited environments benefits significantly from the Type 245SF cable's compact design and exceptional flexibility. Underground mining operations often involve tight spaces where equipment must manoeuvre through narrow passages or operate in confined areas, making cable flexibility a critical factor in equipment design and operation.

Environments characterised by frequent chemical exposure and high mechanical stress are particularly well-suited to Type 245SF cables. Underground mining operations expose equipment to various chemicals used in mining processes, as well as naturally occurring substances that can be corrosive or damaging to electrical equipment. The cable's chemical resistance ensures long-term reliability in these challenging environments.

Compliance & Safety

AS/NZS 1802 compliance represents the foundation of the Type 245SF cable's design, ensuring conformance with the comprehensive safety and performance standards established for underground coal mining cables. This standard addresses multiple aspects of cable performance, including electrical characteristics, mechanical properties, environmental resistance, and safety features specifically relevant to underground mining applications.

The operating temperature range of -25°C to +90°C accommodates the varying thermal conditions encountered in underground mining operations. The lower temperature limit ensures reliable operation in areas where cooling systems maintain low temperatures for personnel comfort and equipment protection, while the upper temperature limit provides adequate margin for equipment operating temperatures and potential thermal transients.

Electrical performance characteristics have been optimised to provide low resistance and optimised reactance values that enhance power transmission efficiency. Lower resistance reduces power losses and heat generation, while optimised reactance characteristics improve power factor and reduce reactive power requirements, contributing to overall system efficiency and reduced operating costs.

Maximum operating temperature specification of +90°C provides adequate thermal margin for normal operation while ensuring that the cable's electrical and mechanical properties remain stable throughout its operational life. The minimum operating temperature of -25°C ensures reliable operation in the coldest areas of underground mining operations, where temperature control systems may maintain low temperatures for personnel safety and equipment protection.

Physical & Electrical Characteristics

The Type 245SF cable is available in core sizes ranging from 50 mm² to 150 mm², providing flexibility in system design to match specific power requirements and installation constraints. This range of conductor sizes enables engineers to optimise power distribution systems for efficiency while maintaining the flexibility required for dynamic applications.

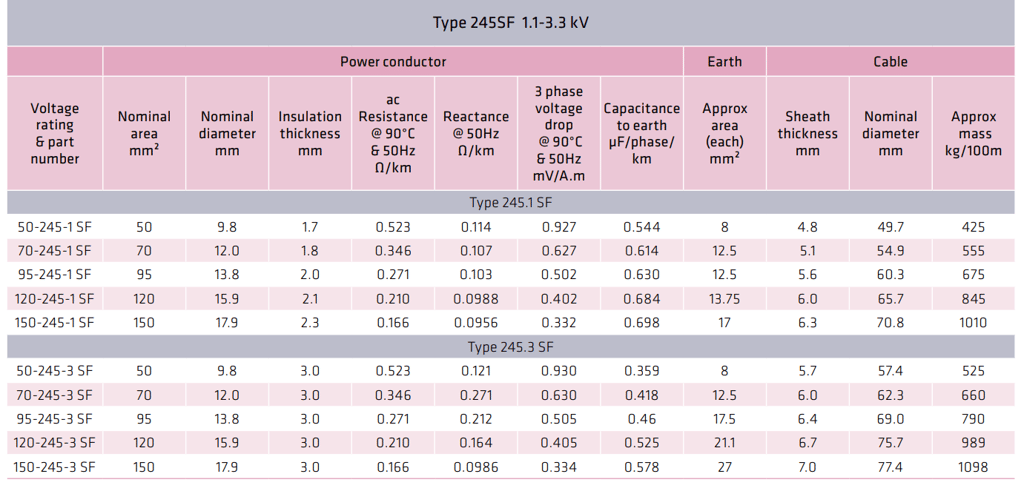

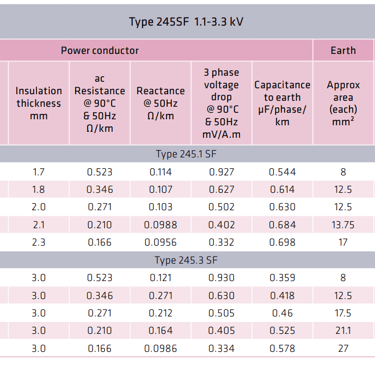

Type 245.1 SF (1.1kV Rating) Specifications:

For 50 mm² conductors, the cable provides AC resistance of 0.523 Ω/km at 90°C and 50Hz, with reactance of 0.114 Ω/km. The three-phase voltage drop is 0.927 mV/A·m, with a nominal cable diameter of 49.7 mm and approximate mass of 425 kg per 100 metres.

The 70 mm² variant offers improved electrical performance with AC resistance of 0.346 Ω/km and reactance of 0.107 Ω/km, resulting in a three-phase voltage drop of 0.627 mV/A·m. The cable diameter increases to 54.9 mm with a mass of 555 kg per 100 metres.

Larger conductor sizes continue this progression, with the 150 mm² cable providing AC resistance of 0.166 Ω/km and reactance of 0.0956 Ω/km, achieving a three-phase voltage drop of 0.332 mV/A·m. The cable diameter reaches 70.8 mm with a mass of 1010 kg per 100 metres.

Type 245.3 SF (3.3kV Rating) Specifications:

The higher voltage rating incorporates thicker insulation, with 3.0 mm insulation thickness across all conductor sizes compared to the variable thickness in the 1.1kV rating. This increased insulation thickness provides the additional dielectric strength required for 3.3kV operation while maintaining the flexibility characteristics essential for cable chain applications.

The 50 mm² conductor in the 3.3kV version maintains similar resistance characteristics (0.523 Ω/km) but incorporates different reactance values (0.121 Ω/km) due to the modified insulation geometry. The cable diameter increases to 57.4 mm with a mass of 525 kg per 100 metres.

Higher conductor sizes in the 3.3kV rating demonstrate progressively improved electrical characteristics, with the 150 mm² variant achieving AC resistance of 0.166 Ω/km and reactance of 0.0986 Ω/km, resulting in excellent power transmission efficiency suitable for high-power mining applications.

Why Choose Type 245SF for Mining Operations?

The Type 245SF cable has been specifically engineered to deliver maximum service life in high-demand mining applications where equipment reliability directly impacts operational profitability and safety. The cable's design philosophy prioritises longevity and consistent performance under the extreme conditions typical of underground mining operations, where equipment replacement or repair can be costly and logistically challenging.

Minimising downtime through robust construction and exceptional flexibility represents a key value proposition of the Type 245SF cable. Underground mining operations operate on tight schedules where equipment downtime can result in significant production losses and safety risks. The cable's construction techniques and material selection ensure reliable operation throughout extended service cycles, reducing the frequency of maintenance interventions and unplanned shutdowns.

The cable has gained trust and acceptance across Australian and New Zealand mining sites through proven performance in demanding operational conditions. This track record provides confidence for mining operators considering cable selection for new projects or equipment upgrades, knowing that the Type 245SF cable has demonstrated reliable performance in similar applications and operating environments.

Common Cable Issues and Solutions

Q: What causes cable failures in longwall shearer applications?

A: The primary causes include mechanical fatigue from continuous flexing, damage from sharp edges or pinch points in cable chains, and thermal stress from overloading. The Type 245SF addresses these through enhanced flexibility, robust sheath construction, and optimised electrical characteristics that reduce thermal stress.

Q: How does the Type 245SF handle chemical exposure in mining environments?

A: The HD-85-PCP sheath with open weave reinforcement provides excellent chemical resistance to acids, alkalis, oils, and other substances commonly encountered in underground mining. The tinned copper conductors resist corrosion, ensuring long-term electrical integrity.

Q: What maintenance considerations apply to Type 245SF cables?

A: Regular inspection of cable chains for proper alignment, monitoring of bend radii to ensure they remain within specifications, and periodic electrical testing to verify insulation integrity. The printed core identification simplifies maintenance procedures and reduces connection errors.

Q: How does the cable perform in extreme temperature conditions?

A: The -25°C to +90°C operating range covers all typical underground mining conditions. The EPR insulation maintains flexibility at low temperatures while the thermal rating ensures safe operation under high electrical loads and elevated ambient temperatures.

The Type 245SF mining cable represents the optimal solution for demanding underground mining applications where flexibility, reliability, and safety are paramount. Its comprehensive design addresses the unique challenges of longwall mining operations while providing the electrical performance and mechanical durability required for long-term operational success.
