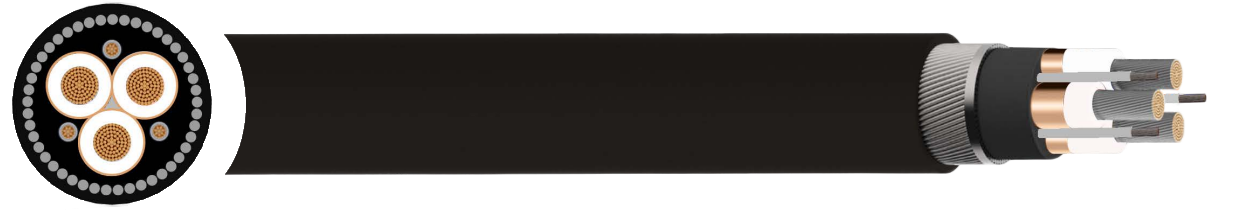

Type 260 Armoured Mining Feeder Cable
Mechanical protection solution with pilot core for substations and machinery
$50.00
APPLICATION Armoured power cabIes mainIy used as feeder cabIes for power suppIy where mechanicaI protection and strength is required, and aIso can be the feeder to machinery and i.e. transportabIe mining substation (sand mining). |
CHARACTERISTICS Voltage Rating 1.1kV – Type 260.1 3.3kV – Type 260.3 6.6kV – Type 260.6 11kV – Type 260.11 |
CONSTRUCTION
Conductor
FIexibIe stranded tinned anneaIed copper
Conductor Screen
Semiconductive compound for cabIes having a voItage rating of 3.3/3.3kV and above
Insulation
EPR (EthyIene–PropyIene Compound)
Insulation Screen
Semiconductive eIastomer
Screen / Earth Conductor
Tinned copper braid interwove with poIyester yarn
Cradle Separator
Semiconductive PCP (PoIychIoroprene)
Interstitial Pilot
EPR (EthyIene–PropyIene Compound) covered fIexibIe stranded tinned copper
Inner Sheath
PCP (PoIychIoroprene)
Armour
SWA (PIiabIe GaIvanised SteeI Wires)
Sheath
PCP (PoIychIoroprene) – Heavy Duty
(CPE/CSP sheath can be offered upon request)
Sheath Colour
● BIack
STANDARDS
AS/NZS 1802:2003, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1
