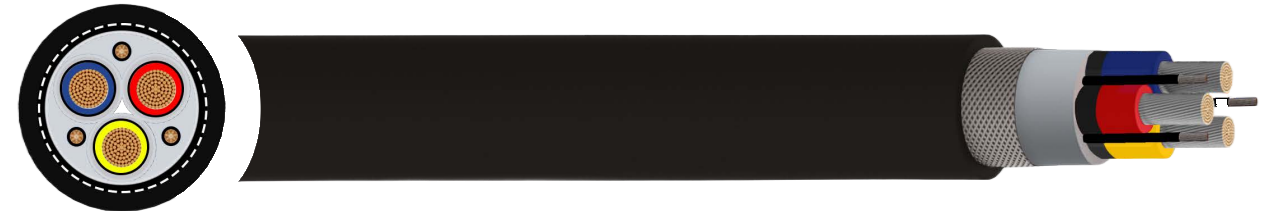

Type 275 Underground Coal Cable
Flexible semi-conductive screened cable for shuttle cars and pump applications
$15.00
APPLICATION For general and underground coal mining purposes. For shuttle cars and pump cables, and other industrial applications. |
CHARACTERISTICS Voltage Rating 1.1kV Temperature Rating -25℃ to +90℃ |
CONSTRUCTION
Conductor
Tinned annealed copper wires
Separator
Synthetic tape under insulation
Insulation
EPR (Ethylene Propylene Rubber ) compound type R-EP-90
Insulation Screen
Semi-conductive thermosetting compound
Cable Assembly
Three insulated power and three earth cores laid up with right hand direction on cradle separator with central pilot core
Inner Sheath
Semi-conductive thermosetting compound
Earth Covering
Semi-conductive thermosetting compound
Cradle Separator
Semi-conductive thermosetting compound
Reinforcing Braid
Polyamide Yarns
Sheath
HD-CSP (Heavy Duty Chlorosulphonated Polyethylene) - extra heavy duty, oil resistance and flame retardant
Sheath Colour
● Black
STANDARDS
AS/NZS 1802:2003, AS/NZS 1125:2001, Water resistant
Flame retardant,
UV, sunlight, ozone and oil resistant
