Type 2S 0.6/1 kV EPR Screened Mining Cable – AS/NZS 1972 Mobile Equipment
Flexible Elastomer Insulated Cable with CPE Sheath for Continuous Miners, Shuttle Cars and Underground Equipment Applications
$10.00
Technical Specifications
Parameter | Description |
|---|---|
Cable Type | EPR Insulated, Screened, and CPE Sheathed Cable |
Applicable Standards | AS/NZS 1972 |
Rated Voltage | 0.6/1 kV |
Conductor Material | Tinned annealed copper |
Insulation | EPR (R-EP-90) |
Pilot Conductors | Tinned annealed copper, R-EP-90 insulated and screened when individual power cores are screened (where required) |

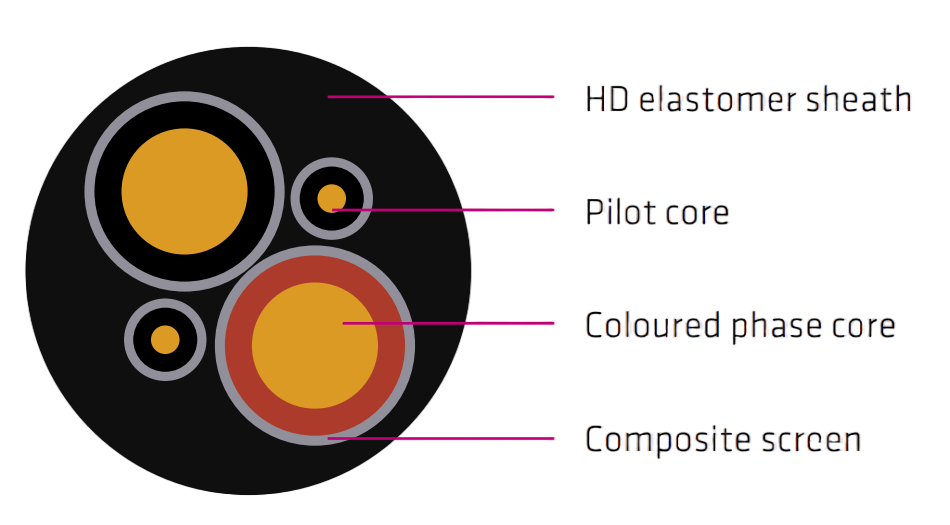

Screen | Composite braid of tinned copper wire and polyester yarn; cables can be individually or collectively screened |
Sheath | Heavy duty black HD-90 CPE |
Maximum Operating Temperature | +90 °C |
Minimum Operating Temperature | -25 °C |
Flexibility | Flexible |
Chemical Resistance | Very good — suitable for frequent chemical exposure |
Mechanical Impact Resistance | Heavy |
Water Resistance | Suitable for immersion and temporary water coverage |
UV and Weather Resistance | Very good — suitable for direct solar radiation and outdoor exposure |
Physical & electrical characteristics

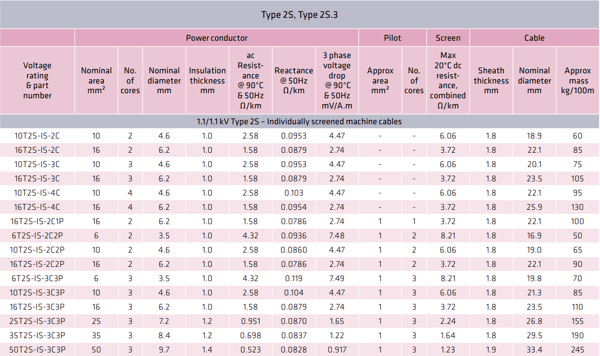

1.1/1.1 kV Type 2S – Individually screened machine cables
3.3/3.3 kV Type 2S.3 – Individually screened machine cables

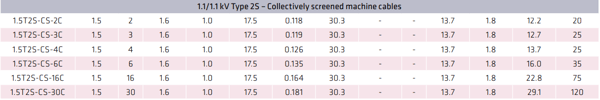

1.1/1.1 kV Type 2S – Collectively screened machine cables
Type 2S cables are designed for wiring mobile mining equipment such as continuous miners, shuttle cars, road headers, and personnel transporters. Rated at 0.6/1 kV, these cables are elastomer insulated and sheathed, featuring screening to ensure electrical integrity. Unlike Type 1 cables, Type 2S cables do not require additional mechanical protection when installed externally (non-protected environments). These cables are used extensively for interconnection of equipment including control boxes, motors, and are also suitable for longwall lighting systems.
Product Features
Mechanically Robust: Sheathed design removes the need for additional mechanical protection in external settings.
Designed for Mobile Mining Equipment: Ideal for wiring continuous miners, shuttle cars, road headers, personnel transporters, and longwall lighting systems.
Electrical Integrity: EPR insulation combined with high-quality screened conductors ensures stable and interference-free power and control signals.
Flexible and Durable: Heavy duty CPE outer sheath protects against abrasion, chemicals, weather, and water exposure.
Fire Retardant: Complies with AS/NZS 1972 fire retardant requirements.
Application Areas
Primarily used for interconnection of mobile mining equipment, including control boxes, motors, and also suitable for longwall lighting systems in free air and protected environments.
Quality Certifications
AS/NZS 1972
Installation and Maintenance
Effective for use in free air, mobile equipment, and machinery installations without additional mechanical protection. Routine maintenance and inspection recommended for optimum reliability.
Customization Services
Available with tailored core configurations, pilot options, and screening arrangements to meet specific operational needs.
Contact Us
For quotations, technical datasheets, and customized cable solutions for mining applications, please contact our sales or technical teams.
