Type 2S 1.1/1.1 kV Collectively Screened 4C1.5 EPR Mining Cable – AS/NZS 1972 Rubber Cable for Australian Underground Coal Mines

Introduction: The Practical Choice for Underground Mining Flexibility Requirements

When mining engineers specify cables for underground coal mining operations, the choice between PVC and elastomeric rubber-insulated alternatives can seem straightforward. Yet the reality in working Australian coal mines is more nuanced: certain underground applications—particularly longwall lighting circuits and auxiliary machine wiring subjected to constant movement and mechanical stress—demand the flexibility and mechanical durability that true rubber cables uniquely provide.

Type 2S 1.1/1.1 kV Collectively Screened 4C1.5 cable represents a pragmatic engineering solution to this real-world requirement. By combining EPR (ethylene propylene rubber) insulation with heavy-duty CPE (chloroprene) sheathing and effective collective copper screening, this compact four-core cable delivers the flexibility and durability that complex underground mining installations require.

The "4C1.5" designation—4 cores, 1.5 mm² each—reflects engineering designed specifically for mining applications. This conductor size is ideal for control circuits, lighting circuits, and auxiliary power to equipment where the cable must flex, bend around obstacles, and survive constant vibration without degradation.

This blog explores how Type 2S 4C1.5 cable has become the standard specification for longwall lighting and machine auxiliary circuits across Australian coal mines, supported by real case studies and technical insights from working operations.

Understanding Type 2S 1.1/1.1 kV Collectively Screened 4C1.5 Cable

The Specific Engineering of the 4C1.5 Configuration

The designation "4C1.5" is not arbitrary—it represents precise engineering for mining applications:

Four cores: Unlike single-phase or three-phase power cables that optimise for power delivery, the four-core configuration is designed for mixed-function circuits. A typical four-core cable in mining applications carries three power cores (red, white, blue) and one neutral/earth core (green/yellow), enabling simultaneous three-phase power and earthing in a single, compact cable bundle.

1.5 mm² conductor size: This relatively small conductor size (common for control and lighting circuits) is where the engineering becomes critical. A 1.5 mm² conductor is light (the complete 4C1.5 cable weighs only 26 kg/km), flexible (it bends readily around obstacles and through confined spaces), yet capable of carrying approximately 15–20 amperes continuously—adequate for most underground mining lighting circuits and auxiliary power requirements.

Collectively screened construction: Rather than screening each conductor individually (which would add bulk and rigidity), the collective screen provides a single shield around all four conductors. This approach is adequate for circuits where conductors serve the same equipment (e.g., power and neutral to the same load) and don't require complete isolation.

This configuration creates a cable that is genuinely flexible (not merely "somewhat flexible"), compact (approximately 19.9 mm overall diameter—small enough to route through tight spaces), and lightweight (enabling practical installation without mechanical assistance).

Elastomeric Insulation and Sheathing: Material Science for Mining

The choice of EPR (ethylene propylene rubber) insulation rather than PVC is fundamental to Type 2S cable's mining suitability:

EPR insulation advantages:

Superior flexibility: EPR remains flexible across the full -25°C to +90°C temperature range that Australian mining operations experience. In contrast, PVC becomes brittle in cold conditions and soft in hot conditions. This temperature-independent flexibility means that Type 2S cables deployed in cold development sections maintain their handling properties.

Elasticity recovery: EPR insulation is truly elastic—when bent or flexed, it returns to its original shape without permanent deformation. PVC, whilst flexible, experiences progressive stress-relaxation under repeated flexing, eventually becoming permanently deformed.

Resistance to oils and chemicals: EPR naturally resists degradation from diesel, mining fluids, and hydraulic oils that are unavoidable in underground mining. PVC gradually absorbs and becomes plasticized by exposure to these oils, losing mechanical properties.

Thermal stability: EPR maintains consistent electrical and mechanical properties across its entire operating temperature range. PVC's properties degrade measurably at higher temperatures, reducing insulation effectiveness.

Heavy-duty CPE sheathing:

Chloroprene (CPE) elastomer sheathing provides:

Mechanical toughness: CPE resists tearing and abrasion from rough underground surfaces, sharp edges on equipment, and constant contact with mining debris. The sheath thickness on Type 2S 4C1.5 (approximately 1.8 mm) provides substantial mechanical protection.

Chemical resistance: CPE is naturally resistant to mining oils, diesel, and harsh mining fluids—far superior to PVC's susceptibility to these exposures.

Flexibility maintenance: Unlike PVC which stiffens over time, CPE maintains its flexibility throughout the cable's service life, even after years of exposure to harsh mining conditions.

Low-temperature performance: CPE remains flexible down to -25°C, whereas PVC becomes increasingly brittle in cold conditions.

The combination of EPR insulation and CPE sheathing creates a cable that is fundamentally engineered for the temperature extremes, chemical exposures, and mechanical stresses of Australian underground mining.

Collectively Screened Design: Practical Electromagnetic Protection

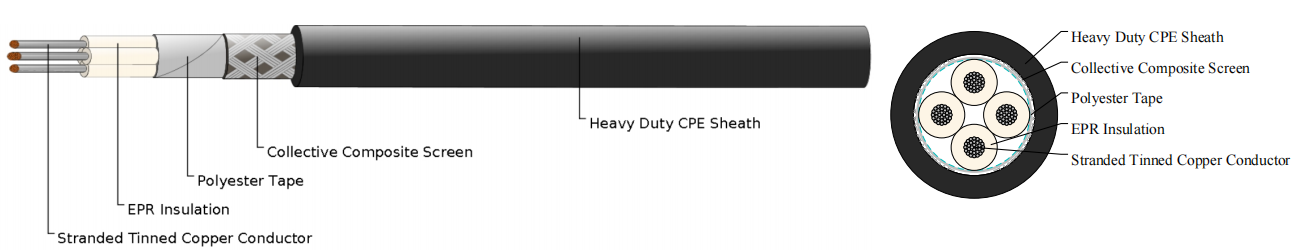

The collective composite screen (tinned annealed copper braiding interwoven with polyester yarn) serves two critical functions:

Electromagnetic interference shielding: In underground mining where multiple electrical systems operate in close proximity—continuous miners, shuttle cars, pump motors, lighting circuits—electromagnetic noise is inevitable. The collective screen suppresses this interference, protecting sensitive control circuits and lighting circuits from crosstalk and noise-induced faults.

Earth conductor path: The screen serves as the earth/neutral conductor, carrying fault current safely to earth without requiring a separate earth wire. This integrated design contributes to the cable's compact dimensions.

Real-World Application: How a Queensland Longwall Mine Solved Lighting System Reliability Issues

The Challenge: Chronic Lighting Circuit Failures in a Modern Longwall System

A major coal mining operation in Queensland's Bowen Basin was operating a high-capacity longwall mining system with approximately 150–200 individual roof support props, each equipped with pressure monitoring sensors and LED lighting for operator visibility and safety.

The original power and control infrastructure for this longwall lighting system used standard PVC-insulated four-core cable installed in exposed routing along the longwall face. Within the first two years of operation, the lighting system experienced chronic reliability problems:

Cable degradation issues:

• Insulation cracking on PVC cables exposed to constant mechanical stress and vibration from mining equipment

• Progressive oil infiltration into PVC insulation from nearby hydraulic equipment, gradually softening the insulation

• Brittleness developing in cables routed through cold development sections where winter temperatures approached 0°C

• Moisture ingress through micro-cracks in insulation, causing intermittent earth leakage faults

Operational impact:

• Approximately 8–15 lighting circuit failures per month, each requiring 2–4 hours of troubleshooting and repair

• Safety concerns: Roof support prop lighting failures created visibility hazards for longwall operators working beneath roof support structures

• Production impact: Approximately 20–30 hours of equipment downtime per month due to lighting system faults, reducing longwall productivity by approximately 2–3%

• Maintenance labour burden: Approximately 0.3–0.5 FTE (full-time equivalent) position dedicated to lighting system troubleshooting rather than productive maintenance

Root cause analysis:

The mining operation's electrical engineering team investigated the chronic failures and identified a fundamental issue: the specification for lighting circuit cables had not considered the actual stresses that longwall lighting systems experience.

The original specification used generic four-core PVC cables designed for protected indoor installations—essentially equipment not engineered for exposed underground mining deployment where mechanical stress, temperature extremes, and chemical exposure are routine.

The Solution: Systematic Upgrade to Type 2S 4C1.5 Collectively Screened Cables

Rather than attempting to patch the existing system, the mining operation decided on a comprehensive lighting infrastructure upgrade:

Cable specification: Type 2S 1.1/1.1 kV Collectively Screened 4C1.5 EPR cables for all main longwall lighting distribution and branch circuits. The four-core configuration provided simultaneous three-phase power and neutral in a single cable, simplifying routing and reducing total cable count.

Installation approach:

• Main distribution circuits: New Type 2S cable installed in cable trays along the longwall face, replacing the previous exposed routing

• Branch circuits to individual roof support props: Type 2S cable with specialised flexible connectors allowing movement of roof support props without cable stress

Scale of upgrade:

• Approximately 1,500–2,000 metres of Type 2S 4C1.5 cable required across the longwall system

• Replacement of approximately 200 connector assemblies

• Installation timeline: Completed during a planned longwall advance over approximately 6 weeks

Total investment: Approximately AUD 85,000–110,000 for cable, connectors, installation labour, and system testing

Results: Dramatic Improvement in Lighting System Reliability

Following the systematic upgrade to Type 2S 4C1.5 cables, the mining operation documented substantial improvements:

Elimination of chronic failures: In the 24 months following cable replacement, the lighting system experienced zero insulation-related cable failures (compared to the previous 8–15 failures per month). The reliable operation has been sustained for 4+ years at the time of this case study.

Safety improvement: Roof support prop lighting failures became essentially non-existent. Safety-critical lighting remained available, improving operator visibility and reducing hazard risk.

Maintenance labour reduction: Troubleshooting and repair labour for lighting circuit faults dropped from approximately 20–30 hours monthly to approximately 2–4 hours monthly. This labour was redirected to other maintenance priorities, effectively improving total maintenance capability.

Production gain: Elimination of approximately 20–30 hours of monthly lighting-related downtime improved longwall productivity by approximately 2–3%, translating to additional coal production of approximately 800–1,200 tonnes per month.

Quantified financial impact:

• Cable replacement investment: Approximately AUD 85,000–110,000

• Monthly production gain: Approximately 800–1,200 tonnes additional coal × approximately AUD 80–100/tonne = approximately AUD 64,000–120,000 monthly revenue improvement

• Maintenance labour savings: Approximately 18–26 hours monthly × approximately AUD 60–80/hour labour cost = approximately AUD 1,080–2,080 monthly savings

• Total monthly benefit: Approximately AUD 65,000–122,000

• Return on investment: Full payback achieved within approximately 1 month; ongoing monthly benefit of AUD 65,000–122,000

Why This Case Study Matters for Australian Mining Operations

The Queensland longwall case study illustrates several critical principles:

Cable specification must match actual operational conditions: Cables designed for protected indoor installations perform poorly in exposed mining environments. Purpose-engineered mining cables deliver fundamentally superior reliability.

The 4C1.5 configuration is optimally engineered for mining applications: The four-core size balances current capacity with flexibility and weight. This balance is not coincidental—it reflects decades of mining cable engineering refinement.

Type 2S cable's reliability translates to measurable production gains: The case study demonstrates that better cables don't merely reduce maintenance burden—they directly improve production through increased equipment uptime.

Upgrade investments in cable infrastructure pay back rapidly: The one-month payback period reflects the direct connection between cable reliability and mining productivity. Few capital investments in mining deliver ROI this quickly.

Technical Specifications of Type 2S 4C1.5: Understanding the Engineering

Physical Dimensions and Weight

Type 2S 4C1.5 cable presents itself as:

• Overall diameter: Approximately 19.9 mm—compact enough to route through cable trays, along equipment frames, and through confined spaces without requiring oversized infrastructure

• Weight: Approximately 26 kg/km—light enough for practical manual handling and installation without mechanical assistance

This compactness is important for practical mining installations where space is constrained and weight affects installation feasibility.

Conductor Specification

The 4 cores × 1.5 mm² configuration provides:

• Total conductor cross-section: 6 mm² combined (four 1.5 mm² cores)

• Each core: 30 strands of 0.25 mm diameter tinned annealed copper

• Current-carrying capacity: Approximately 15–20 amperes per core (depending on installation method and ambient temperature)

This current capacity is sufficient for most underground mining lighting circuits and auxiliary power applications. For context, a typical LED array for longwall roof support prop lighting draws approximately 5–10 amperes, well within the cable's capacity.

Screening Specification

The collective composite screen consists of:

• Tinned annealed copper braiding: Approximately 12.1 strands interwoven with polyester yarn

• Screen area: Approximately 12.1 mm² cross-section

• Screen resistance: Low resistance ensuring effective earth conductor function and rapid fault current conduction

This screening design provides the electromagnetic protection necessary for environments with multiple electrical systems operating in proximity.

Insulation and Sheath Thickness

• EPR insulation thickness: Approximately 1 mm per core

• CPE sheath thickness: Approximately 1.8 mm

• Total insulation + sheath: Approximately 2.8 mm radial thickness

This thickness provides robust protection against mechanical damage and environmental exposure whilst maintaining the cable's flexibility characteristics.

Why Australian Mining Operations Specify Type 2S 4C1.5 Cables for Critical Applications

Compliance with Australian Mining Standards

Type 2S 4C1.5 cable's compliance with AS/NZS 1972:2006 ensures that it meets electrical safety and mechanical performance requirements established specifically for underground coal mining. This compliance provides confidence that the cable meets rigorous Australian mining regulations.

Proven Track Record in Australian Longwall Operations

Type 2S cables have been used in Australian coal mining since the early 2000s, with extensive deployment in longwall lighting systems across Queensland, NSW, and other mining regions. This 20+ year history provides substantial real-world evidence of cable performance in Australian mining conditions.

Superior Flexibility for Moving Equipment

Unlike heavier, rigid HV cables, the Type 2S 4C1.5 configuration is genuinely flexible. This flexibility matters for longwall systems where roof support props move continuously, cables must route around obstacles, and connections must accommodate movement without stress.

Compact Size for Space-Constrained Installations

The approximately 19.9 mm diameter allows Type 2S 4C1.5 cable to route along equipment frames, through cable trays, and in confined spaces where larger cables would be impractical. This compactness is a practical advantage in crowded underground mining areas.

Chemical Resistance for Harsh Mining Environments

The EPR insulation and CPE sheathing resist degradation from:

• Diesel and fuel exposure (from equipment in underground areas)

• Hydraulic fluid splash (from mining equipment leaks)

• Acidic pit water exposure (from seasonal groundwater ingress)

• Mining dust and abrasive particles

This chemical resistance translates to longer service life compared to PVC alternatives.

Installation Best Practices for Type 2S 4C1.5 Cables in Australian Mines

Suitable Installation Environments

Type 2S 4C1.5 cables perform reliably in:

• Longwall lighting circuits (primary application)

• Auxiliary power to mobile or semi-mobile equipment

• Control interconnections between distributed equipment

• Machine auxiliary circuits where flexibility is required

• Exposed installations (no additional protection required due to heavy-duty CPE sheath)

• Cold development sections where temperature approaches -25°C

• Hot equipment areas where temperature reaches +90°C

Installation Considerations

Bending radius: Whilst Type 2S cables are flexible, respect reasonable bending limits. A minimum bending radius of approximately 60–80 mm (3–4 times the cable diameter) is recommended to prevent internal conductor damage.

Cable support: Use appropriate cable clamps or routing systems to support the cable, preventing excessive stress at connection points. The cable's weight (26 kg/km) is light enough that support spans can be substantial, but avoid creating conditions where the cable hangs under stress.

Connector selection: Use connectors specifically rated for elastomeric cables (not connectors optimised for PVC). Elastomeric cables and connectors have different mating requirements to ensure watertight, corrosion-resistant connections.

Termination procedures: Terminate cables using established mining cable termination practices. The EPR insulation may require slightly different stripping and preparation compared to PVC, though standard mining termination procedures generally apply.

Environmental protection: Whilst the heavy-duty CPE sheath provides substantial protection, avoid routeing cables through areas with sharp edges or severe mechanical stress. Where unavoidable, use cable armour or conduit to provide additional mechanical protection.

Temperature management: The cable's -25°C to +90°C operating range accommodates Australian mining conditions, but allow cables in cold areas to warm to approximately 5°C before sharp bending to reduce the risk of insulation damage.

Maintenance and Inspection

Type 2S 4C1.5 cables require minimal ongoing maintenance if properly installed:

Annual visual inspection: Check for signs of mechanical damage, insulation cracking, or connection corrosion.

Connection monitoring: Periodically verify that connections remain tight and corrosion-free.

Environmental assessment: Monitor for changes in cable routing or installation conditions that might affect performance (e.g., new equipment creating vibration, changes to ambient conditions).

Documentation: Maintain records of installation location, circuit assignment, and any maintenance or repairs performed.

Unlike heavier cables requiring periodic high-voltage testing, Type 2S cables at 1.1/1.1 kV operating voltage typically don't require periodic electrical testing beyond the acceptance testing performed at installation.

Comparing Type 2S 4C1.5 to Alternative Solutions

vs Standard PVC Four-Core Cables

Standard PVC cables are less expensive initially but fail prematurely in mining environments. The Queensland case study documented approximately 8–15 PVC cable failures per month in the same longwall system, versus zero failures with Type 2S cables. The cost advantage of cheaper PVC is overwhelmed by higher failure rates and maintenance burden.

vs Heavier Elastomeric Cables

Some elastomeric cables are heavier and less flexible than Type 2S 4C1.5 (designed for maximum flexibility for their conductor size). These heavier alternatives are appropriate for different applications but unnecessary for control and lighting circuits where the lighter, more flexible Type 2S 4C1.5 configuration is adequate.

vs Custom or Imported Cables

Sourcing cables from overseas introduces compliance uncertainties and supply chain complications. Type 2S cables manufactured to AS/NZS 1972 are readily available through Australian suppliers, come with full compliance documentation, and represent proven technology in Australian mining.

Real-World Application: NSW Hunter Valley Continuous Miner Auxiliary Circuits

Additional Case Study: Control System Interconnection Upgrade

A coal mining operation in NSW's Hunter Valley region was upgrading the electrical systems on its continuous miners, incorporating modern variable frequency drives (VFDs) and advanced load monitoring electronics. The equipment required flexible, shielded cables for control interconnections that could tolerate the mechanical stress and vibration of active mining equipment.

The operation specified Type 2S 1.1/1.1 kV Collectively Screened 4C1.5 cable for all control and auxiliary power interconnections, approximately 400–500 metres of cable across the fleet of three continuous miners.

Results

Following installation, the new control systems operated with improved stability and reliability. The Type 2S cable's collective screening effectively suppressed electromagnetic interference from the VFDs, ensuring clean control signals to the monitoring electronics. The cable's flexibility accommodated the movement and vibration of mining equipment without developing the micro-cracks that rigid PVC cables would have suffered.

Over the 3-year operational period following installation, zero cable-related failures have been recorded. The operation noted that maintenance personnel specifically appreciated the flexibility of Type 2S cables during installation and future modifications—the cables could be re-routed without requiring replacement.

Cost-Benefit Analysis: Type 2S 4C1.5 Cable Infrastructure Investment

Capital Expenditure for Typical Mining Installation

For a typical mining application requiring approximately 1,500–2,000 metres of cable (e.g., longwall lighting system or large continuous miner auxiliary circuits):

Standard PVC four-core cable: Estimated total cost approximately AUD 30,000–45,000 for materials and installation labour

Type 2S 4C1.5 collectively screened cable: Estimated total cost approximately AUD 85,000–110,000 for materials and installation labour

Premium for Type 2S: Approximately AUD 50,000–70,000 (approximately 150–200% higher initial cost)

Operating Costs and Failure-Related Expenses

PVC cable scenario (based on Queensland case study data):

• Cable failures: approximately 8–15 per month

• Troubleshooting labour per failure: approximately 2–4 hours at approximately AUD 60–80/hour = approximately AUD 120–320 per failure

• Monthly troubleshooting labour: approximately 16–60 hours = approximately AUD 960–4,800 monthly

• Cable replacement frequency: approximately 30–50% of cable base annually

• Annual cable replacement cost: approximately AUD 9,000–22,500

• Production downtime from cable failures: approximately AUD 20,000–50,000 monthly (estimated)

• Total monthly cost: Approximately AUD 20,000–55,000

Type 2S cable scenario:

• Cable failures: essentially zero (based on 4+ year operational data)

• Troubleshooting labour: approximately 1–2 hours monthly

• Cable replacement cost: essentially zero over 4+ year period

• Production downtime: essentially zero

• Total monthly cost: Approximately AUD 100–200 (minimal maintenance labour only)

Return on Investment Timeline

Initial premium: AUD 50,000–70,000 higher capital cost

Monthly operating cost advantage: AUD 19,800–54,800 per month (difference between PVC and Type 2S scenarios)

Payback period: Approximately 1–3.5 months (typical estimate: 1–2 months)

Ongoing annual benefit: AUD 240,000–660,000 annually (typical estimate: AUD 400,000–500,000 for typical longwall lighting system)

This financial analysis demonstrates that the high capital premium for Type 2S cable is recovered extraordinarily quickly through operational benefits, with ongoing annual savings substantial enough to justify the investment multiple times over.

Sourcing Type 2S 4C1.5 Cables in Australia

Availability and Lead Times

Type 2S 1.1/1.1 kV Collectively Screened 4C1.5 cables are readily available through established Australian mining equipment suppliers. Lead times for standard configurations are typically 2–4 weeks for normal orders, with expedited delivery possible for urgent requirements.

Quality Assurance and Documentation

Ensure that supplied cables include:

• Full electrical test certificates demonstrating compliance with AS/NZS 1972:2006

• Physical specification datasheets (conductor size, insulation thickness, overall diameter, weight)

• EPR and CPE material composition certification

• Copper screen specifications

• Installation guidelines specific to elastomeric cables

Reputable Australian suppliers provide this documentation as standard and can answer technical questions about cable specifications and mining applications.

Technical Support

Established Australian mining cable suppliers provide:

• Cable application consultation and sizing guidance

• Installation recommendations specific to mining conditions

• Connector and termination advice for elastomeric cables

• On-site support for critical installations

• Ongoing technical support and maintenance consultation

Expert Summary

Type 2S 1.1/1.1 kV Collectively Screened 4C1.5 cable represents an engineered solution specifically designed for the practical reality of Australian underground coal mining: cables must be flexible, durable, reliable, and able to survive harsh underground conditions whilst remaining practical to install and maintain.

The case studies presented in this blog—from the Queensland longwall operation that achieved one-month payback on its lighting system cable upgrade with ongoing benefits exceeding AUD 400,000–500,000 annually, to the NSW Hunter Valley continuous miner that improved control system stability and reliability through proper cable specification—document real, measurable improvements delivered by Type 2S 4C1.5 cable in authentic Australian mining operations.

The critical insight underlying this cable's engineering is straightforward: cable specification should match actual operational requirements, not generic industrial standards. Cables designed for protected indoor installations perform poorly in exposed mining environments. Cables engineered specifically for mining deliver fundamentally superior reliability.

The 4C1.5 configuration is not arbitrarily chosen—it represents the optimal balance of current capacity (approximately 15–20 amperes per core), flexibility (approximately 19.9 mm overall diameter), weight (approximately 26 kg/km), and durability for underground mining control and lighting circuits. This balance reflects decades of mining cable engineering refinement.

Type 2S 4C1.5 cable's compliance with AS/NZS 1972:2006 ensures full regulatory compliance. Its 20+ year track record in Australian mining operations provides confidence in its performance. Its ready availability through Australian suppliers ensures that procurement is practical.

The financial case is compelling: the capital premium (approximately 150–200% higher cost) is recovered within 1–3 months through operational benefits alone. Ongoing annual savings for typical mining applications exceed AUD 400,000, providing extraordinary return on infrastructure investment.

For Australian mining operations managing longwall lighting systems, continuous miner auxiliary circuits, or any application requiring flexible, reliable machine wiring and control interconnections, Type 2S 4C1.5 cable represents the proven standard that delivers both engineering excellence and quantifiable financial return.

Bottom line: If your mining operation is still using standard PVC cables for longwall lighting or equipment auxiliary circuits, you're accepting failure rates and maintenance burden that proper cable specification could eliminate. The Queensland case study demonstrated that upgrading to Type 2S 4C1.5 cable recovered its investment within a single month whilst delivering ongoing benefits exceeding AUD 400,000 annually. For Australian mining operations operating in competitive commodity markets, this represents a straightforward opportunity to improve reliability and reduce operational costs.

Contact an Australian mining equipment supplier for detailed Type 2S 4C1.5 cable specifications, application consultation, and availability information. Your mining operation's reliability—and your operational bottom line—will benefit substantially.

How to Reach Us

Get in Touch

SiteMap

hongjing.Wang@feichuncables.com

Product Catalogue

Home

Products

News

Contact Us

Reeling Cable

Festoon Cable

Shore Power Cable

Mining Cable

Scan to add us on WeChat
