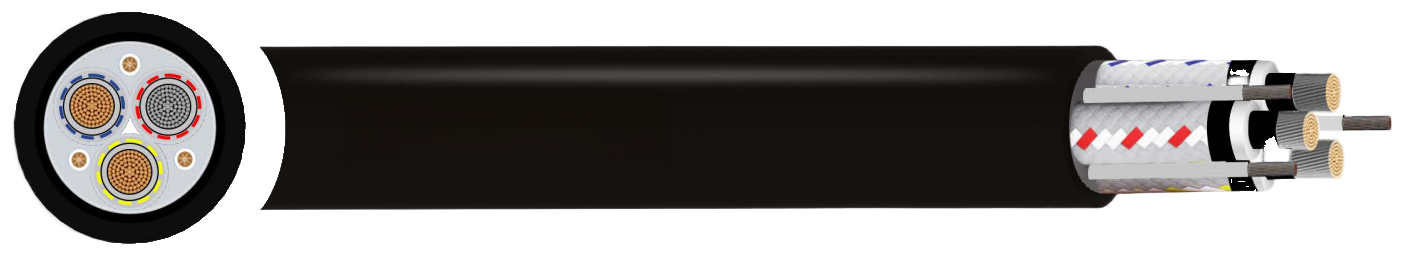

Type 440 Three Pilot Core Mining Cable
Flexible copper screened cable for draglines, shovels and drilling equipment
$15.00
APPLICATION For power supply to machinery and equipment. For use where three pilot cores are required. Larger cables for power supply to draglines, shovels and drills. Smaller sizes used for drills, held hand tools and equipment. Other industrial applications |
CHARACTERISTICS Voltage Rating 1.1kV to 22kV Temperature Rating -25℃ to +90℃ |
CONSTRUCTION
Conductor
Tinned annealed copper wires
Separator/Screen
1.1kV: Paper separator
For other nominal voltages semi-conductive tape+ thermosetting compound over conductors
Insulation
Ethylene propylene rubber type R-EP-90
Insulation Screen
1.1kV: Synthetic tape
From 3.3kV: Semi-conductive thermosetting compound + tinned copper/polyamide braid
Cable Assembly
Three screened power and three pilot cores laid up with right hand direction on cradle separator
Sheath
Thermosetting compound HD-85-PCP - extra heavy duty, oil resistance and flame retardant
Sheath Colour
● Black
STANDARDS
AS/NZS 2802: 2000, AS/NZS 1125:2001, AS/NZS
2802:2003, Water resistant and flame retardant, UV, sunlight, ozone and oil resistant
