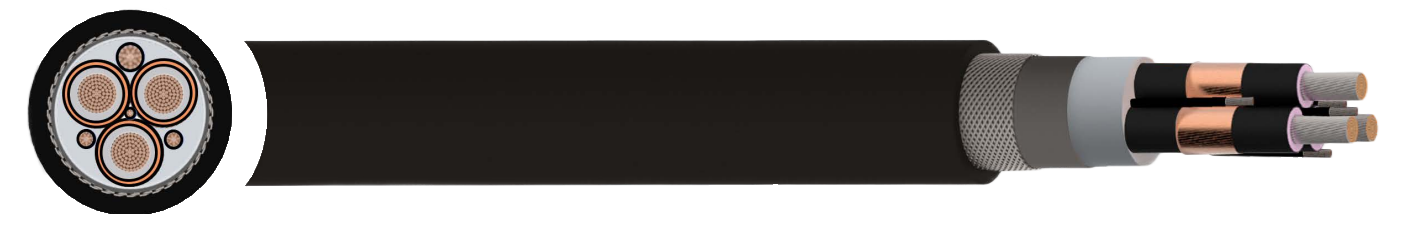

Type 441 Heavy Duty Mining Cable
Semi-conductive screened solution for reeling and trailing operations
$15.00
APPLICATION Semi-conductive screened cable for many uses. For use where three earth/protecting and one pilot core are required. Larger cables for power supply to draglines, shovels and drills. Suitable for trailing and also for reeling applications. Other industrial applications |
CHARACTERISTICS Voltage Rating Type 441.1 - 1.1kV Type 441.3 - 3.3kV Type 441.6 - 6.6kV Type 441.11 - 11kV Type 441.22 - 22kV Temperature Rating -25℃ to +90℃ |
CONSTRUCTION
Conductor
Tinned annealed copper wires
Separator/Screen
1.1kV: Paper separator
For other nominal voltages semi-conductive tape+ thermosetting compound over conductors
Insulation
Ethylene propylene rubber type R-EP-90 and XR-EP-90
Insulation Screen
1.1kV: Synthetic tape
From 3.3kV: semi-conductive thermosetting compound
Cable Assembly
Three screened power and three earth cores laid up with right hand direction on cradle separator with central pilot core
Inner Sheath
Semi-conductive thermosetting compound
Armour
Polyamide yarns
Outer Sheath
HD-CSP (Heavy duty Chlorosulphonated Polyethylene) extrra heavy duty, oil resistant and flame retardant
Sheath Colour
● Black
STANDARDS
AS/NZS 2802: 2000, AS/NZS 1125:2001, AS/NZS 2802:2003, Water resistant
Flame retardant,
UV, sunlight, ozone resistant Oil resistant
