Type 441 Mining Trailing Cable in Pilbara Iron Ore Mines: Power Supply Solutions for Electric Rope Shovels

Introduction

In large-scale open-pit mining operations — particularly across Australia's iron ore-producing regions such as the Pilbara — reliable power delivery to mobile equipment is not a secondary concern. It is a fundamental operational requirement. Electric rope shovels, mobile crushers, and drill rigs operate continuously under conditions that would destroy conventional industrial cables within weeks.

Type 441 flexible semi-conductive screened mining trailing cable is the industry-standard solution for medium-voltage mobile power supply in these environments. But selecting the right variant is not simply a matter of matching voltage rating. Cable performance under trailing, reeling, thermal, and chemical stress must all be evaluated systematically.

This guide walks through a structured, step-by-step cable selection methodology, defines the key parameters that determine suitability, and identifies the most common errors made by engineers and manufacturers during the selection process.

Understanding Type 441 Cable: What It Is and How It Is Built

Before making any selection decision, engineers must understand the fundamental design philosophy of Type 441 cable. It is not a general-purpose medium-voltage cable that happens to be flexible. It is a purpose-engineered trailing cable system in which every layer serves both electrical and mechanical functions simultaneously.

The conductor is built from tinned annealed copper wires assembled in highly flexible stranded configurations. This is essential for trailing applications where the cable undergoes thousands of bending cycles over its operational life. The conductor flexibility class matters significantly: Class 1 constructions are used from 3.3 kV upward, while Class 2 constructions are appropriate for 1.1 kV installations.

The insulation system uses ethylene propylene rubber in either R-EP-90 or XR-EP-90 formulations. EPR insulation is chosen specifically for its combination of high dielectric strength, thermal stability up to 90°C, and resistance to compression deformation — the last point being critical in environments where cable may be overrun by mining vehicles.

At voltages from 3.3 kV and above, the insulation is surrounded by a semi-conductive thermosetting compound screen. This screen serves two purposes: it eliminates air voids at the conductor-insulation interface to prevent partial discharge, and it provides a uniform cylindrical equipotential surface around each core. At 1.1 kV, a synthetic tape screen is used in its place.

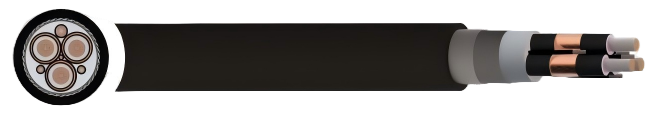

The cable assembly consists of three screened power cores and three earth cores, laid up with a right-hand helical direction over a cradle separator, with a central pilot core. This assembly geometry is not arbitrary — the right-hand lay and cradle design directly affect how the cable behaves under torsional stress during trailing.

The inner sheath is semi-conductive thermosetting compound, which provides an earth fault monitoring path and mechanical protection between cores. Over this sits a polyamide yarn armour, which contributes crush resistance and tensile reinforcement without compromising flexibility. The outer sheath is heavy-duty chlorosulphonated polyethylene (HD-CSP), chosen for its resistance to abrasion, oil, UV radiation, ozone, and flame.

The voltage variants are designated as follows: Type 441.1 for 1.1 kV, Type 441.3 for 3.3 kV, Type 441.6 for 6.6 kV, Type 441.11 for 11 kV, and Type 441.22 for 22 kV. Operating temperature range is consistent across all variants: minus 25°C to plus 90°C.

Step-by-Step Cable Selection Methodology

Step 1: Confirm the System Voltage

This is the non-negotiable first step. The nominal system voltage determines the insulation thickness, which in turn affects every physical dimension of the cable — from the diameter over insulation to the overall cable diameter and weight per metre.

For Australian iron ore mining, the two dominant operating voltages for large mobile equipment are 6.6 kV and 11 kV. Electric rope shovels and large draglines are most commonly supplied at these levels. Smaller mobile equipment such as drill rigs may operate at 3.3 kV.

The insulation thickness varies substantially across voltage classes. At 6.6 kV, the insulation thickness across all conductor sizes is 3 mm. At 11 kV, this increases to 5 mm. At 22 kV, it rises further to 7.6 mm. These differences directly affect the bend radius, the cable weight, and the mechanical stiffness of the finished assembly. An engineer who selects a 6.6 kV cable for use on an 11 kV system has made an error that no amount of derating can correct.

Step 2: Determine the Required Current-Carrying Capacity

With the voltage class confirmed, the next step is to establish the required conductor cross-section. This requires knowing the load current demand of the equipment being supplied.

For electric rope shovels, peak power demand can be extremely high and highly variable. The digging cycle creates significant current spikes. The selection should be based on the continuous rated current with sufficient margin to handle cyclic overloads, not simply the nameplate kVA rating of the machine divided by voltage.

Cross-section options within the Type 441 range cover 6 mm² through to 300 mm² depending on the voltage class. For 11 kV applications, the smallest available conductor is 25 mm², reflecting the physical constraint that thicker insulation requires a minimum conductor diameter for electrical field management.

Engineers should also consider the length of the trailing cable run. Voltage drop over long trailing lengths is a common issue in large open-pit operations where the distance from the trailing cable connection point to the equipment may exceed 300 metres. The conductor cross-section must be sized to maintain acceptable voltage at the machine terminals under maximum load.

Step 3: Evaluate the Mechanical Duty — Trailing vs. Reeling

Type 441 cable is explicitly designed for both trailing and reeling applications, but these impose different mechanical demands and must be evaluated separately.

In trailing applications, the cable lies on the ground and is dragged along the mine floor as the equipment moves. The primary stresses are longitudinal tension, transverse abrasion from ground contact, and repeated bending as the cable follows the machine path. The cable is not wound onto a drum under load.

In reeling applications, the cable is wound onto and off a cable reel drum. This introduces a different bending pattern: consistent, repeated flexing at a defined radius determined by the drum diameter. It also introduces torsional stress if the reel is not aligned precisely with the direction of equipment travel.

For reeling applications, the minimum drum diameter must be specified and checked against the cable's minimum bending radius. As a general reference, medium-voltage mining trailing cables require a minimum bending radius of approximately eight to twelve times the overall cable diameter, depending on whether the bend is static or repeated. The overall cable diameters published in the dimensional data should be used as the basis for this calculation, not nominal conductor sizes.

For a Type 441.11 cable at 185 mm² conductor, the overall diameter is 85 mm. A minimum dynamic bending radius of ten times the overall diameter would require a drum with a minimum flange-to-flange working diameter of 1,700 mm. Undersized reels cause premature insulation cracking and core screen damage.

Step 4: Assess the Environmental Conditions

The Pilbara environment presents a specific combination of stressors: sustained ambient temperatures above 40°C, iron ore dust with abrasive fine particle characteristics, exposure to diesel fuel and hydraulic fluid from nearby machinery, intense UV radiation, and mechanical impact from ore fragments.

The HD-CSP outer sheath of Type 441 cable is engineered to resist all of these simultaneously. However, the engineer must verify that the ambient temperature at the installation site does not exceed the cable's continuous rating when combined with the self-heating effect of current flow. A cable carrying rated current in a 45°C ambient environment is thermally stressed in a way that a cable in a 25°C climate-controlled environment is not.

Where cables are bundled together or laid in trays rather than trailing freely on the ground, derating factors for grouping must be applied. This is a frequently overlooked consideration when equipment is parked and the trailing cable is coiled or stacked.

The UV and ozone resistance of the outer sheath is particularly important in open-pit environments where cables may be exposed to direct sunlight for extended periods. The HD-CSP sheath provides this resistance as an inherent material property, but cables that have been stored improperly or have sustained sheath damage lose this protection.

Step 5: Verify Earth Core and Pilot Core Configuration

Type 441 cable includes three earth cores and one pilot core as standard. This configuration is not optional from a mine safety standpoint — it is a requirement of Australian mining regulations and the standards framework under which Type 441 is tested and certified.

The three earth cores serve the grounding function, providing a low-impedance fault return path and ensuring that the earth continuity resistance remains within safe limits even if one earth core is damaged. The pilot core is used for the earth continuity monitoring system, which detects a break in the earth circuit and initiates an automatic trip before the operator is exposed to touch voltages.

Engineers specifying Type 441 cable for installations where pilot wire earth leakage protection is mandatory must confirm that the monitoring relay system is compatible with the pilot core conductance. The pilot conductor strand configuration is consistent across all voltage classes and conductor sizes — 24/0.2 for smaller sizes and 40/0.2 for larger cross-sections — but the interface with the monitoring relay should be verified during commissioning.

Step 6: Confirm Compliance with Applicable Standards

Type 441 cable is designed and tested to AS/NZS 2802 and AS/NZS 1125, which are the Australian and New Zealand standards governing mining cables. For projects in Australian mines, compliance with these standards is a regulatory requirement, not simply a quality preference.

Engineers should request test documentation confirming compliance with the applicable revision of AS/NZS 2802. The cable is also required to demonstrate water resistance, flame retardancy, and UV and ozone resistance as distinct performance criteria under the standards framework.

For export projects or installations in jurisdictions outside Australia, confirm whether AS/NZS 2802 compliance is accepted or whether an alternative standard such as IEC or BS is required.

Key Parameters Reference

Voltage

Voltage class determines insulation thickness, core diameter, and overall cable weight. Insulation thicknesses range from 1.5 mm at 1.1 kV up to 7.6 mm at 22 kV. Always specify the nominal system voltage, not the equipment terminal voltage, and verify with the mine electrical engineer.

Bending Radius

Minimum bending radius for dynamic (repeated) flexing is typically eight to twelve times the overall cable diameter. Minimum bending radius for static installations is lower but must still be confirmed against the cable manufacturer's published data. For reeling applications, both the minimum drum diameter and the maximum fleet angle of the reel must be within specified limits.

Tensile Load

Trailing cables are subject to sustained tensile loading as the equipment moves away from the connection point. The maximum allowable tensile load on the conductor and armour system must not be exceeded during normal trailing operations. For electric rope shovels, the cable management system — including cable reelers and tensioning devices — should be designed to limit the cable tension to levels within the mechanical rating of the cable at the relevant cross-section.

Travel Speed

The speed at which the equipment moves while trailing the cable affects the rate of bending cycles and the dynamic tensile loads imposed on the cable. High-speed trailing, such as occurs when large haul trucks move at speed near a shovel, can impose sudden tensile shocks on the cable if it becomes snagged. Cable management systems with automatic tensioning and overload protection are essential for high-speed applications.

Ambient and Operating Temperature

The cable is rated for continuous operation from minus 25°C to plus 90°C. The conductor operating temperature under load must be modelled to confirm it remains below the rated maximum. In high-ambient-temperature environments with full load operation, this may require a larger conductor cross-section than the pure current capacity would suggest.

Common Cable Selection Errors

Selecting Voltage Class Based on Equipment Terminal Voltage Alone

The system voltage at the cable connection point may differ from the equipment terminal voltage due to on-board transformers or variable-speed drive systems. Always confirm the voltage at the point where the trailing cable connects to the mine distribution network.

Using Overall Weight as a Proxy for Quality

Heavier cables are not inherently more capable cables. A large conductor in a lower-voltage class produces a heavier cable than a smaller conductor in a higher-voltage class. Weight data should be used only for civil and structural load calculations, not as a comparative quality metric.

Ignoring the Pilot Core in Relay Coordination

Some engineers treat the pilot core as a passive element and fail to coordinate its impedance characteristics with the earth continuity relay. Mismatched relay settings can result in nuisance tripping during normal operation or, more dangerously, failure to trip under genuine fault conditions.

Undersizing for Peak Current Rather Than Continuous Demand

Electric rope shovels have highly variable current profiles. Sizing for the average current rather than the thermally equivalent continuous current will result in premature insulation degradation due to cyclically elevated conductor temperatures.

Applying Static Installation Derating Factors to Trailing Cables

Derating tables for cables installed in conduit or cable trays do not apply directly to trailing cables freely suspended or lying on the ground. The heat dissipation conditions are different, and the appropriate thermal model for trailing cable must be used.

Selecting Minimum Conductor Size Without Voltage Drop Analysis

In long trailing cable runs, a conductor that is thermally adequate for the load current may still produce an unacceptable voltage drop at the machine terminals under maximum load. Voltage drop analysis over the maximum trailing cable length must be completed as part of the selection process.

Overlooking AS/NZS 2802 Revision Status

The standard has been revised across multiple editions. Confirm that the cable product being specified is tested and certified to the currently applicable revision, and that the mine's electrical safety management system references the same edition.

Summary

Selecting Type 441 mining trailing cable for electric rope shovels and mobile mining equipment in demanding environments is a multi-parameter engineering task. The steps described in this guide — voltage confirmation, current sizing, mechanical duty assessment, environmental evaluation, earth system verification, and standards compliance — must all be completed before a cable selection can be considered technically sound.

Errors in any one of these areas carry consequences ranging from premature cable failure and unplanned equipment downtime to electrical safety incidents. The investment in a thorough selection process at the specification stage is directly reflected in the reliability and safety performance of the installation over its operational life.

For complex applications including high-speed reeling, long trailing lengths exceeding 400 metres, or multi-machine power distribution systems, consultation with a specialist mining cable engineer during the design phase is strongly recommended.

This guide is based on technical data for Type 441 flexible semi-conductive screened mining cable designed and tested to AS/NZS 2802 and AS/NZS 1125. All dimensional and electrical parameters should be verified against current product data before use in design calculations.
